Vision Server TIGW1U models
AC model number
VHW-005-005
Components
The Vision Server TIGW1U is shipped with the following components:
•
Two AC power cords for AC servers. Specified per order.
•
Intel Server universal rack mount kit
•
Installing the Vision Server TIGW1U (this document)
•
Software License Agreement
•
Accessing Vision Documentation
•
Perchlorate material warning
•
China RoHS declaration
Note: Save all packaging materials. Your warranty requires that the server be
returned in the original packaging.
Rear panel

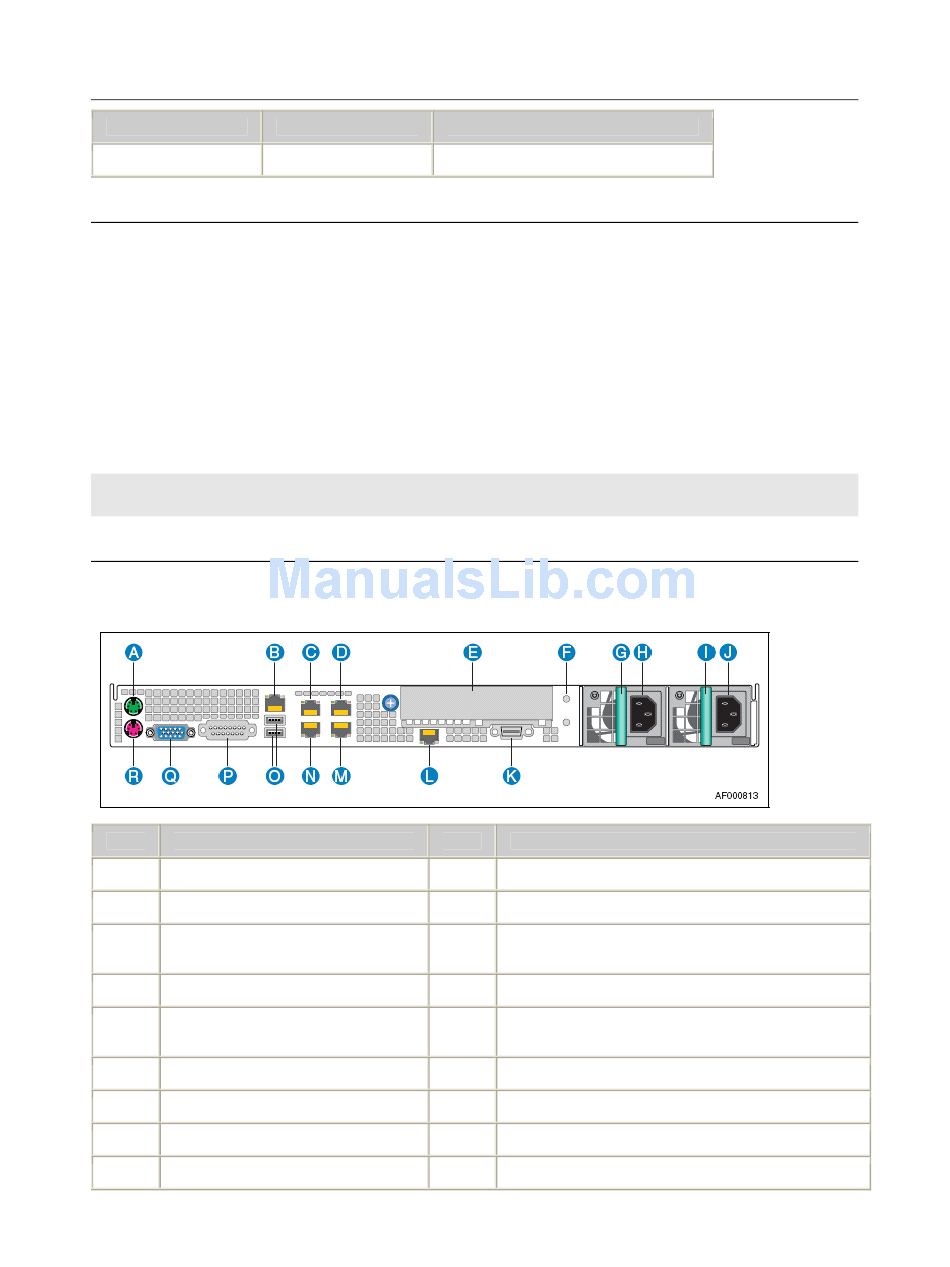

The following illustration shows the Vision Server TIGW1U rear panel (the model
shown has no line card interfaces):
Item
Description
A
PS/2 mouse
B
RJ-45 serial port (COM2/Serial B)
C
RJ45 NIC connector
D
RJ45 NIC connector
E
PCI add-in card bracket or filler
panel
F
Ground studs for DC input (2)
G
Power supply #2
H
AC power connection
I
Power supply #1
Dialogic Corporation
DC model number
Description
VHW-006-005
No line card or signaling interfaces.
Item
J
K
L
M
N
O
P
Q
R
Description
AC power connection
External x4 SAS connector
Intel® remote Management Module 2 (Intel®
RMM2) connector (optional)
RJ45 NIC connector
RJ45 NIC connector
USB port 0 and USB port 1
Telco alarms connector
Video connector
Keyboard connector
3
