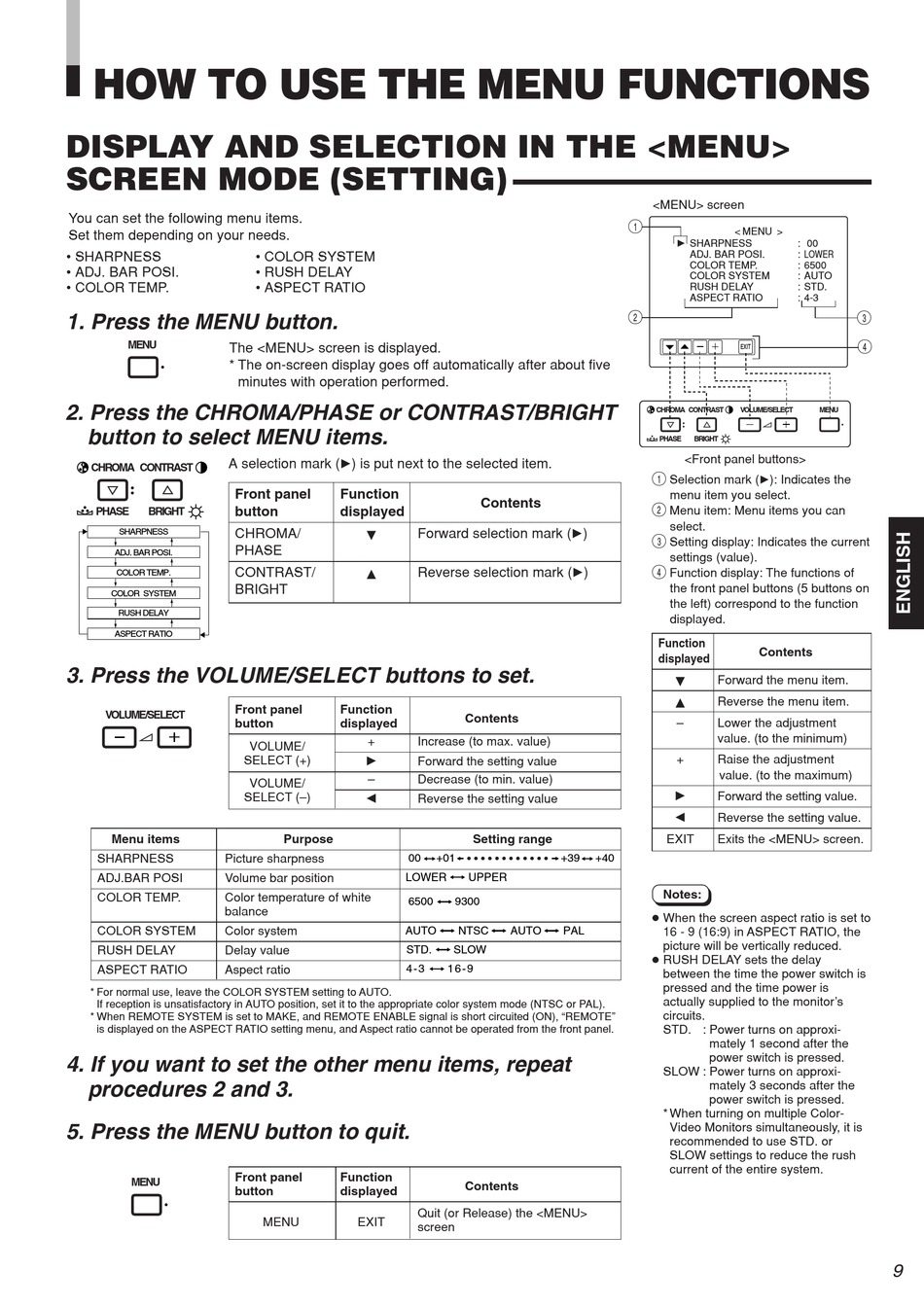

HOW TO USE THE MENU FUNCTIONS

DISPLAY AND SELECTION IN THE <MENU>
SCREEN MODE (SETTING)
You can set the following menu items.
Set them depending on your needs.
• SHARPNESS
• ADJ. BAR POSI.
• COLOR TEMP.
1. Press the MENU button.
MENU
The <MENU> screen is displayed.
* The on-screen display goes off automatically after about five
minutes with operation performed.
2. Press the CHROMA/PHASE or CONTRAST/BRIGHT
button to select MENU items.
A selection mark (4) is put next to the selected item.
CHROMA CONTRAST
Front panel
button
PHASE BRIGHT
SHARPNESS CHROMA/
PHASE
ADJ. BAR POSI.
CONTRAST/
COLOR TEMP.
BRIGHT
COLOR SYSTEM
RUSH DELAY
ASPECT RATIO
3. Press the VOLUME/SELECT buttons to set.
Front panel
VOLUME/SELECT
button
Menu items
SHARPNESS Picture sharpness
ADJ.BAR POSI Volume bar position
COLOR TEMP. Color temperature of white
balance
COLOR SYSTEM Color system
RUSH DELAY Delay value
ASPECT RATIO Aspect ratio
* For normal use, leave the COLOR SYSTEM setting to AUTO.
If reception is unsatisfactory in AUTO position, set it to the appropriate color system mode (NTSC or PAL).
* When REMOTE SYSTEM is set to MAKE, and REMOTE ENABLE signal is short circuited (ON), "REMOTE"
is displayed on the ASPECT RATIO setting menu, and Aspect ratio cannot be operated from the front panel.
4. If you want to set the other menu items, repeat
procedures 2 and 3.
5. Press the MENU button to quit.
Front panel
MENU
button
• COLOR SYSTEM
• RUSH DELAY
• ASPECT RATIO
Function
displayed
Forward selection mark (4)
Reverse selection mark (4)
Function
displayed
+ Increase (to max. value)
VOLUME/
SELECT (+)
4 Forward the setting value
– Decrease (to min. value)
VOLUME/
SELECT (–)
1
Reverse the setting value
Purpose
00
LOWER
6500
AUTO
STD.
4-3
Function
displayed
Quit (or Release) the <MENU>
MENU EXIT
screen
Contents
Contents
Setting range
+01 +39 +40
• • • • • • • • • • • •
UPPER
9300
NTSC AUTO PAL
SLOW
16-9
Contents
<MENU> screen
1
< MENU >
4 SHARPNESS : 00
ADJ. BAR POSI. : LOWER
COLOR TEMP. : 6500
COLOR SYSTEM : AUTO
RUSH DELAY : STD.
ASPECT RATIO : 4-3
2
EXIT
CHROMA CONTRAST VOLUME/SELECT
PHASE BRIGHT
<Front panel buttons>
1
Selection mark (4): Indicates the
menu item you select.
2
Menu item: Menu items you can
select.
3
Setting display: Indicates the current
settings (value).
4
Function display: The functions of
the front panel buttons (5 buttons on
the left) correspond to the function
displayed.
Function
Contents
displayed
Forward the menu item.
Reverse the menu item.
– Lower the adjustment
value. (to the minimum)
+ Raise the adjustment
value. (to the maximum)
4 Forward the setting value.
1 Reverse the setting value.
EXIT Exits the <MENU> screen.
Notes:
● When the screen aspect ratio is set to
16 - 9 (16:9) in ASPECT RATIO, the
picture will be vertically reduced.
● RUSH DELAY sets the delay
between the time the power switch is
pressed and the time power is
actually supplied to the monitor's
circuits.
STD. : Power turns on approxi-
mately 1 second after the
power switch is pressed.
SLOW : Power turns on approxi-
mately 3 seconds after the
power switch is pressed.
* When turning on multiple Color-
Video Monitors simultaneously, it is
recommended to use STD. or
SLOW settings to reduce the rush
current of the entire system.
3
4
MENU
9
