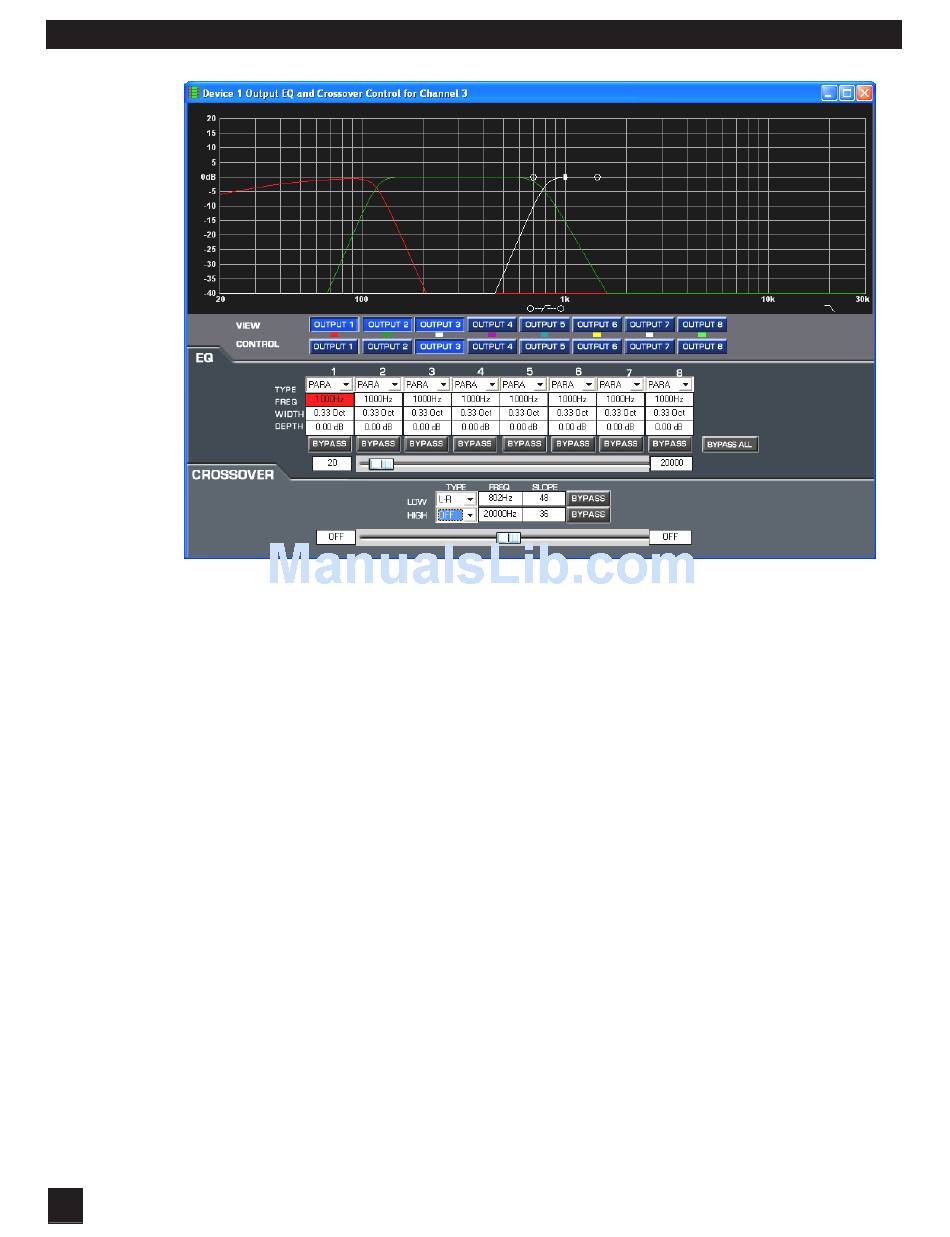

This is one of the most commonly used screens. Controls for all other screens work in a similar way.
Guide to Crossover Screen Controls:
•
View: Use these buttons to choose which Output graph you will view. You can view multiple
output response curves. In this example Outputs 1, 2, and 3 are shown.
•
Control: Use these buttons to choose which Output you will edit using the controls below the
graph area. You can only control one output at a time. In this example we are controilling
Output 2.
•
EQ Type: Choose between Parametric, Low Shelf, and High Shelf using the pull-down menu.
You must choose a filter type before any editing.
•
EQ Freq.: Set the frequency of the filter center points by typing in a number or using the
Slider tool. Note that the scale for ther Slider tool is dynamic - when you choose Fre-
quency the scale displays Hz.
•
EQ Width: Set the bandwidth of each filter by typing a number into the field or using the
Slider tool. Remember to select the field before using the Slider, which shows fractions of
an octave in the scale.
•
EQ Depth: Set the EQ filter depth (or level) by typing a number into the field or using the
Slider tool, which shows level setting in dB.
•
Crossover Type: Sets the type of filter you will use for each of the crossover filters (low or
high) in the selected output. Use the pull-down menu to choose the type -- your first step
before any other editing of the crossover.
•
Crossover Freq.: Set the frequency at which the filter roll-off begins typing in a value or
using the Slider tool. Choose the Freq field first and you will see the Slider's scale display
the range of vaules at either end of the Slider. You can also edit the filter frequency by
grabbing the Filter Handle with your mouse and dragging it along the bottom of the graph
display.
•
Crossover Slope: Set the slope of the filter by typing in a number or using the Slider tool.
You can also edit the slope dragging the circles that flank the Filter Handle. You will see
the slope change as you adjust these handles.
