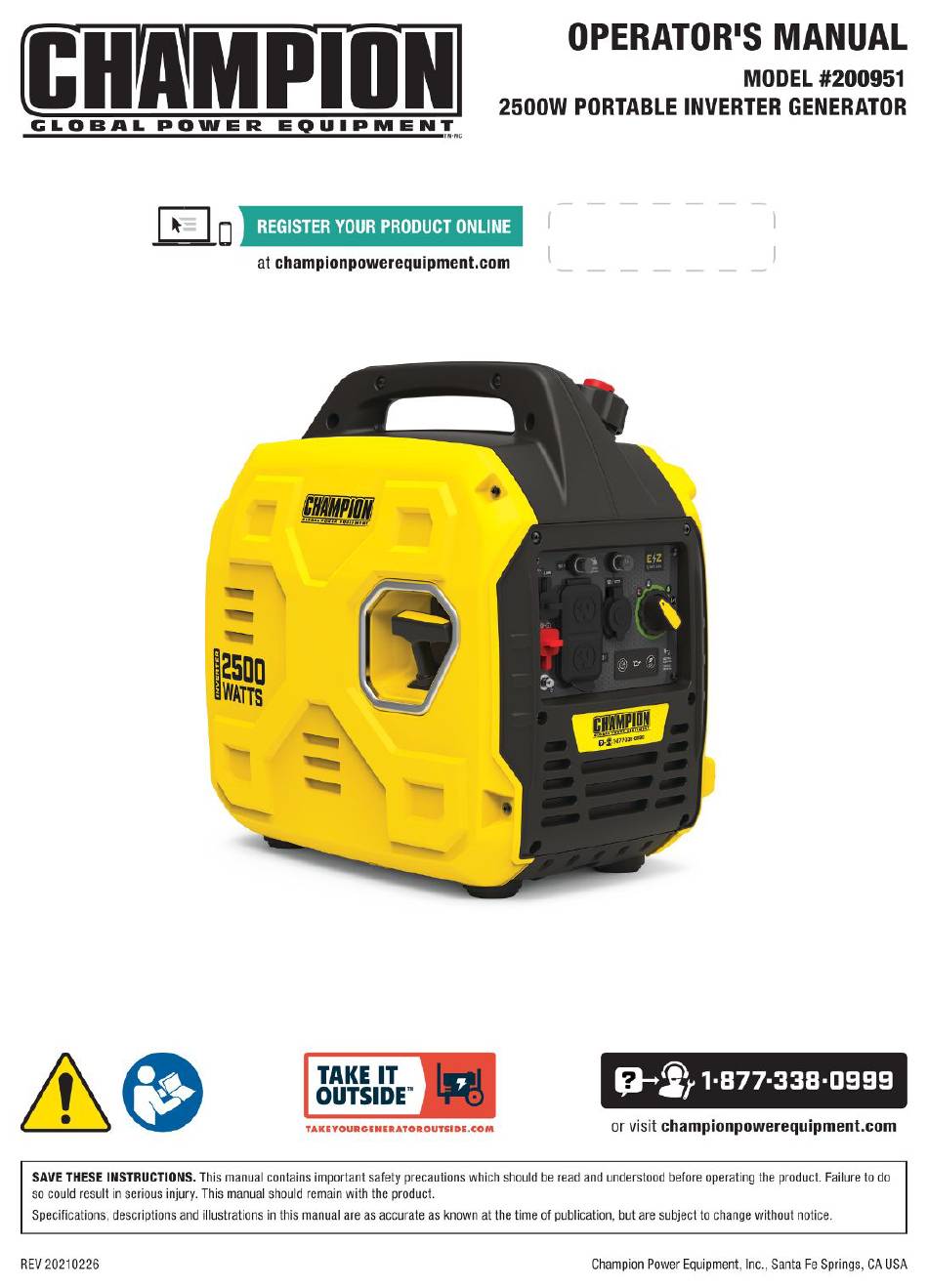

Champion Global Power Equipment 200951 Operator's Manual

2500w portable inverter generator
Hide thumbs

Advertisement

Quick Links

Download this manual
cHAMP10N
C LOBAL
P O IMER
SAVE THESE INSTRUCTIONS. This manual contains important safety precautions which should be read and understood before operating the product. Failure to do
so could result in serious injury. This manual should remain with the product.
Specifications, descriptions and illustrations in this manual are as accurate as known at the time of publication, but are subject to change without notice.
REV 20210226
EQUIPMENT
REGISTER YOUR PRODUCT ONLINE
at championpowerequipment.com
S
WATT
TAKE IT
OUTSIDE*
TAKEYOURGENERATOROUTSIDE.COM
OPERATORIS
2500W
PORTABLE
or visit championpowerequipment.com
Champion Power Equipment, Inc., Santa Fe Springs, CA USA
MANUAL
MODEL
#200951
INVERTER
GENERATOR
1-877-338-0999

Advertisement

loading
Need help?

Need help?

Do you have a question about the 200951 and is the answer not in the manual?

Questions and answers

Related Manuals for Champion Global Power Equipment 200951

Summary of Contents for Champion Global Power Equipment 200951

  • Page 1 OPERATORIS MANUAL cHAMP10N MODEL #200951 2500W PORTABLE INVERTER GENERATOR C LOBAL P O IMER EQUIPMENT REGISTER YOUR PRODUCT ONLINE at championpowerequipment.com WATT TAKE IT 1-877-338-0999 OUTSIDE* or visit championpowerequipment.com TAKEYOURGENERATOROUTSIDE.COM SAVE THESE INSTRUCTIONS. This manual contains important safety precautions which should be read and understood before operating the product. Failure to do so could result in serious injury.
  • Page 2 CARBON MONOXIDE SAFETY: BIG PICTURE TAKE As the only safe way to use a portable generator,taking your generator outside is absolutely mandatory to keep your family safe from carbon OUTSIDE monoxide. But there's even more you can do. By educating yourself about all carbon monoxide risks, you'll be better prepared to protect CARBON MONOXIDE...
  • Page 3 200951 - 2500W PORTABLE INVERTER GENERATOR TABLE OF CONTENTS TABLE OF CONTENTS Maintenance Schedule Storage Introduction Short Term Storage(upto 30 days) Safety Definitions Mid Term Storage(30 days - 1 year) Important Safety Instructions Long TermStorage(more than 1 year) Removingfrom Storage...
  • Page 4 200951 - 2500W PORTABLE INVERTER GENERATOR INTRODUCTION SAFETY DEFINITIONS INTRODUCTION Congratulationson your purchaseof a ChampionPowerEquipment The purposeof safety symbols is to attract your attention to (CPE)product. CPEdesigns, builds, and supports all of our possibledangers. The safety symbols,and their explanations, productsto strict specifications and guidelines.With proper deserveyour careful attention and understanding.The safety...
  • Page 5 200951 - 2500W PORTABLE INVERTER GENERATOR IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS A DANGER Operateequipment with guards in place. A WARNING Rotatingparts can entanglehands,feet, hair, clothing and/or Cancerand ReproductiveHarm—www.P65Warninqs.ca.qov accessories.Traumatic amputation or severe laceration can result. A DANGER Keep handsand feet away from rotating parts.
  • Page 6 200951 - 2500W PORTABLE INVERTER GENERATOR IMPORTANT SAFETY INSTRUCTIONS A WARNING A CAUTION Spark from removedspark plug wire can result in fire or Start the generator and allow the engineto stabilize before electrical shock. connecting electrical loads. Connect electrical equipment in the off position, and then turn When servicing the generator: them on for operation.
  • Page 7 200951 - 2500W PORTABLE INVERTER GENERATOR IMPORTANT SAFETY INSTRUCTIONS Fuel Safety When starting the generator: DONOTattempt to start a damagedgenerator. A DANGER Alwayscheck that the gasoline cap, air filter, spark plug, fuel lines and exhaust system are properly in place.
  • Page 8 200951 - 2500W PORTABLE INVERTER GENERATOR IMPORTANT SAFETY INSTRUCTIONS Safety and Dataplate Labels These labels warn you of potential hazardsthat can cause serious injury. Readthem carefully. If a label comes off or becomeshard to read, contact TechnicalSupportTeamfor possiblereplacement. Side Muffler...
  • Page 9 200951 - 2500W PORTABLE INVERTER GENERATOR IMPORTANT SAFETY INSTRUCTIONS Safety Symbols Some of the following symbols may be used on this product. Pleasestudy them and learn their meaning.Proper interpretation of these symbolswill allow you to more safely operate the product.
  • Page 10 200951 - 2500W PORTABLE INVERTER GENERATOR IMPORTANT SAFETY INSTRUCTIONS Operation Symbols Some of the following symbols may be used on this product. Pleasestudy them and learn their meaning.Proper interpretation of these symbolswill allow you to more safely operate the product.
  • Page 11 200951 - 2500W PORTABLE INVERTER GENERATOR IMPORTANT SAFETY INSTRUCTIONS Quickstart Label Symbols Some of the following symbols may be used on this product. Pleasestudy them and learn their meaning.Proper interpretation of these symbolswill allow you to more safely operate the product.
  • Page 12 200951 - 2500W PORTABLE INVERTER GENERATOR CONTROLS AND FEATURES CONTROLS AND FEATURES Readthis operator's manual before operating your generator.Familiarizeyourselfwith the location and function of the controls and features. Save this manual for future reference. Generator Carrying Handle —Usedto lift or carry the unit.
  • Page 13 200951 - 2500W PORTABLE INVERTER GENERATOR CONTROLS AND FEATURES Control Panel Circuit Breakers (Push Reset) —Protectsthe generator RECEPTACLES against electrical overloads. (2x) 120V AC, 20A (NEMA5-20R) Parallel Outlets —Usedto parallel two inverters together for May be used to supply electrical powerfor increasedpower output.
  • Page 14 200951 - 2500W PORTABLE INVERTER GENERATOR CONTROLS AND FEATURES FCC Statement Parts Included This device complies with Part 15 of the FCCRules. Operation Accessories is subject to the following two conditions: EngineOil 16.9 fl. oz. (500 mi) la. This device may not cause harmful interference.
  • Page 15 200951 - 2500W PORTABLE INVERTER GENERATOR ASSEMBLY ASSEMBLY Yourgenerator requires some assembly.This unit ships from our factory without oil. It must be properlyserviced with fuel and oil beforeoperation. If you have any questionsregardingthe assemblyof your generator,call our TechnicalSupport Teamat 1-877-338-0999.
  • Page 16 200951 - 2500W PORTABLE INVERTER GENERATOR ASSEMBLY Use clean, fresh, regular unleaded gasoline with a minimum NOTICE octane rating of 87 and an ethanol content of 10% or less by volume.O @ @ Checkoil level often during the break-in period. Referto the Maintenance section for recommended service intervals.
  • Page 17 200951 - 2500W PORTABLE INVERTER GENERATOR ASSEMBLY Neutral Bonded to Frame* NOTICE Neutral circuit IS electrically connectedto the frame/ground of The generatorengineworks well with 10% or less ethanol the generator. blendedgasoline. When using ethanol-gasoline blendsthere The generator system ground connects lower frame cross- are some issuesworth noting: memberbelow the alternator.
  • Page 18 200951 - 2500W PORTABLE INVERTER GENERATOR OPERATION OPERATION Wet Conditions Alert: Do not expose to rain or use in damp locations except as follows: If you must operate in rain or damp locations, DONOToperate Generator Location without proper protection of the electrical components.
  • Page 19 200951 - 2500W PORTABLE INVERTER GENERATOR OPERATION Starting the Engine 6. As the engine warms up, move the EZ Start dial to the "RUN" position. Make certain the generator is on a flat, levelsurface. Disconnect all electrical loads from the generator. Never start or stop the generatorwith electrical devices plugged in or turned on.
  • Page 20 200951 - 2500W PORTABLE INVERTER GENERATOR OPERATION Connecting Electrical Loads If the generator power output is cut off due to an overload condition indicated by the ACoverloadblinking light, lower Let the engine stabilize and warm up for a few minutes after the load by unpluggingone or more items, then press the starting.
  • Page 21 200951 - 2500W PORTABLE INVERTER GENERATOR OPERATION Eco (Economy) Mode Stopping the Engine The EcoMode button can be activated to turn on economy control Turnoff and unplugall electrical loads. Neverstart or stop the in order to minimizefuel consumptionand noisewhile operating generatorwith electrical devices plugged in or turned on.
  • Page 22 200951 - 2500W PORTABLE INVERTER GENERATOR MAINTENANCE Moving the Generator Carb. Code High Alt. Jet Part Number Min. Altitude ALWAYS turn the generatoroff and ensurethe fuel valve is 3000 100163549 closed. (914 m) 100717087 — ALWAYS make sure engineand muffler are cooled down 6000 ft.
  • Page 23 200951 - 2500W PORTABLE INVERTER GENERATOR MAINTENANCE Cleaning the Generator Tilt the generator on its side and allow the oil to drain completely. A CAUTION DONOTspray generator directly with water. Water can enter the generatorthrough the cooling slots and damagethe generatorwindings. It can also contaminatethe fuel system.
  • Page 24 200951 - 2500W PORTABLE INVERTER GENERATOR MAINTENANCE Inspect the electrode on the plug. It must be clean and not Saturate in clean engine oil. worn to producethe spark requiredfor ignition. Squeezein a clean, absorbentcloth to removeall excess oil. Make certain the spark plug gap is Placethe filter in the assembly.
  • Page 25 200951 - 2500W PORTABLE INVERTER GENERATOR STORAGE Adjusting the Governor STORAGE Tamperingwith the factory set governorwill void your To avoidaccidental or unintendedignition of your generator warranty. during periods of storage,the following precautions should be followed: The air-fuel mixture is not adjustable. Tamperingwith the governor —...
  • Page 26 200951 - 2500W PORTABLE INVERTER GENERATOR STORAGE Mid Term Storage (30 days - 1 year) clear tubing out underneath the inverter. Make sure draining gasolineempties into an appropriatecontainer. Ethanolblendedgasoline in the tank hasa maximum shelf life of up to 1 year with the addition of a properly formulatedfuel tiliaiil stabilizer and stored in a cool, dry place.
  • Page 27 200951 - 2500W PORTABLE INVERTER GENERATOR SPECIFICATIONS SPECIFICATIONS Oil Specifications DO NOT OVERFILL. Generator Specifications Type *Seefollowing chart Generator Model 200951 Capacity 16.9 fl. oz. (500 mi) Start Type Manual Recommended Engine Oil Type Watts (Starting/Running) 2500/1850 low-30 Volts AC ACAmps@ 120V 15.4...
  • Page 28 200951 - 2500W PORTABLE INVERTER GENERATOR TROUBLESHOOTING TROUBLESHOOTING Problem Cause Solution No fuel. Add fuel. Faulty spark plug. Cleanand adjust spark plug or replace. Fill crankcase to the proper level. Low oil level. Placegeneratoron a flat, level surface. Enginewill not start.
  • Page 29 200951 - 2500W PORTABLE INVERTER GENERATOR WARRANTY WARRANTY* Other Exclusions This warranty excludes: CHAMPION POWER EQUIPMENT — Cosmeticdefects such as paint, decals,etc. 3 YEAR LIMITED WARRANTY Wear items such as filter elements, o-rings, etc. Warranty Qualifications — Accessory parts such as starting batteries, and storage To register your product for warranty and FREElifetime call center covers.
