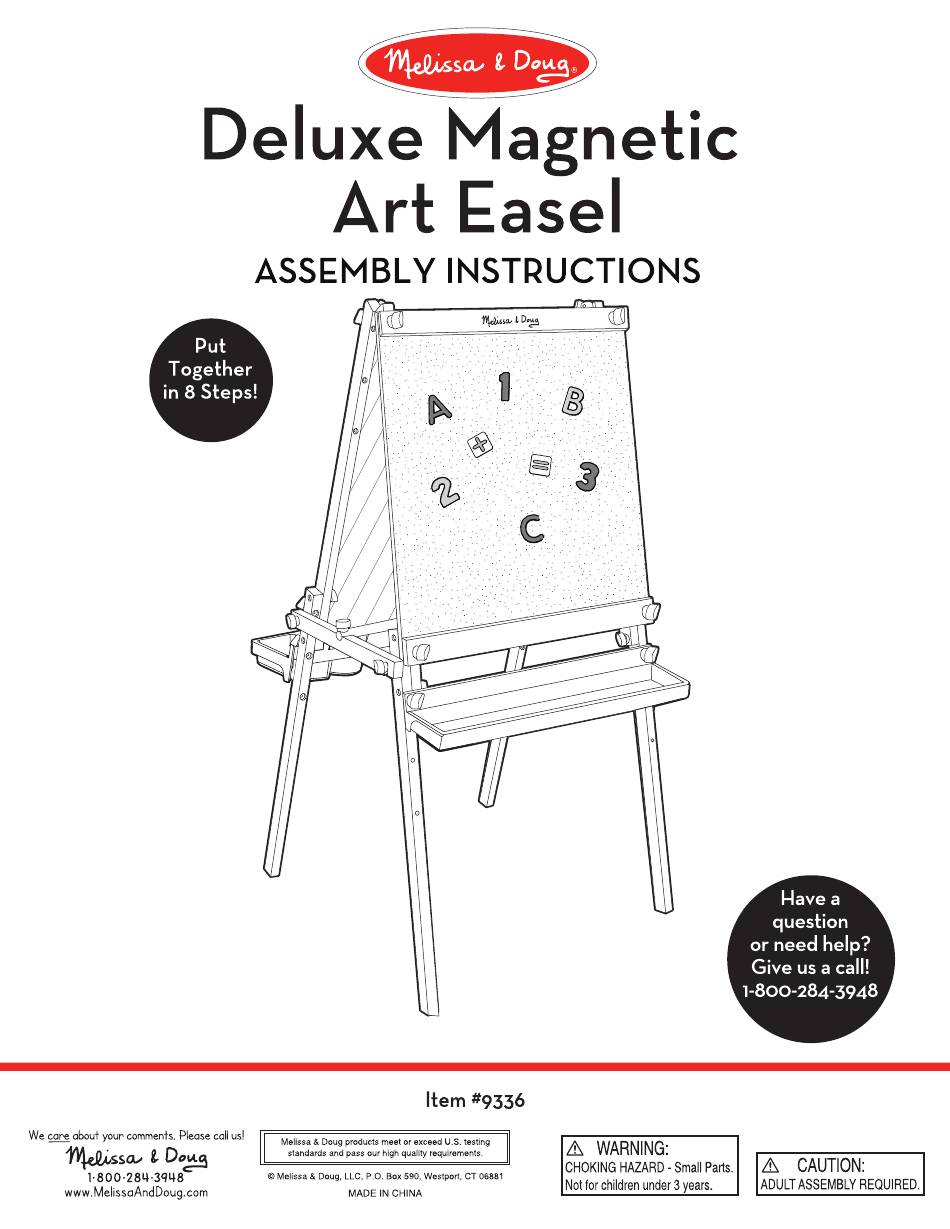

Deluxe Magnetic
put
Together
in 8 Steps!
We care abou+ your comments. P leasecallus!
a-.
file.QLss
1-800-28L4-3948
www.MelissaAndDoug.com
f4e.QLssa
...
Art
ASSEMBLY
Item #9336
Melissa & Doug products meet or exceed U S. testing
standards and pass our high quality requirements.
O Melissa & Doug, LLC, P.o. Box 590, Westport, CT 06881
MADE
IN CHINA
DO&S
Easel
INSTRUCTIONS
n-eLsso.,
A
WARNING:
CHOKING HAZARD - Small Parts.
Notfor childrenunder3 years
Have
a
question
or need help?
Give us a call!
1-800-284-3948
A
CAUTION:
ADULTASSEMBLYREQUIRED
Advertisement
Related Manuals for Melissa & Doug Deluxe Magnetic Art Easel
Summary of Contents for Melissa & Doug Deluxe Magnetic Art Easel
- Page 1 f4e.QLssa DO&S Deluxe Magnetic Easel ASSEMBLY INSTRUCTIONS n-eLsso., Together in 8 Steps! Have question or need help? Give us a call! 1-800-284-3948 Item #9336 We care abou+ your comments. P leasecallus! Melissa & Doug products meet or exceed U S. testing WARNING: file.QLss standards and pass our high quality requirements.
- Page 2 THANK YOU! Thank you for choosing the Melissa & Doug Deluxe Magnetic Art Easel! It's a terrific way to help nurture a child's creativity and imagination, and to inspire artistic exploration for years to come. IT'S TIME IT TOGETHER! Don't worry—assembling your new easel is simple, and we're here to help. It may go a little faster with a partner to lend a hand, but we've made it so one person can assemble the easel.
- Page 3 PARTS - Be Smart—Sort Your Parts Before you begin assembly, make sure you have all the parts listed below. When directed, use the Allen wrench (part O) to attach the bolts to bolt caps. magnetic chalkboard dry-erase board lower legs (4) upper hinged legs (2) O paper guide/cutter paper roll dowel...
- Page 4 STEP - Get a Leg Up • Stack 2 lower legs (C) on top of each other, then align them to the holes on the upper hinged leg (D). Make sure numbers on the short upper legs and lower legs match and face each other for proper assembly.
- Page 5 STEP 2 - Keep on Rolling Using 2 short bolts (M) and 2 bolt caps (P), attach the paper dowel roll (H) to the leg braces (l). IMPORTANT: Make sure U-channels are facing the same direction. Assembled View...
- Page 6 STEP 3 - Brace Yourself Slide the leg brace assembly (H & l) into place. Using 2 long bolts (N) and 2 bolt caps (P), fasten one end of the leg brace assembly to both sides of the easel. Assembled View Melissa &...
- Page 7 HEIGHT SUGGESTIONS - Small or Tall? The height of the Deluxe Magnetic Art Easel can easily be adjusted as young artists grow. Choose the height that works best for your child. 3rd hole from the Child's height is 2nd hole...
- Page 8 If you want to position the art boards in the middle or lower positions, skip now to Step 5. STEP 4 - Top Notch • Stand the easel up and slightly open the legs. Insert 2 short bolts (M) into the highest position holes on the easel's front short long...
- Page 9 STEP 5 - Out-Stand-ing Using 2 long bolts (N) and 2 bolt caps (P), attach remaining sides of the leg braces to the easel's legs. Assembled View...
- Page 10 STEP 6 - Start With a Clean Slate • Using 2 short bolts (M) (already in place if mounting in highest position) and 2 bolt caps (P), attach top of dry-erase board (A) and upper art board frame (F) to easel. •...
- Page 11 STEP 7 - Never Be "Board" • Using 2 long bolts (N) (already in place if mounting in highest position) and 2 bolt caps (P), attach top of dry-erase board (B) long and paper guide/cutter (E) to easel. • Using 2 short bolts (M) and 2 bolt caps (P), attach bottom of dry-erase board and a lower art board frame (G) to easel.
- Page 12 STEP 8 - "Tray" Bien! It's the End • Using 2 short bolts (M) and 2 bolt caps (P), attach red tray (K) to magnetic chalkboard side of the easel. • Using 2 short bolts (M) and 2 bolt caps (P), attach red paint tray (J) to the dry-erase board side of the easel.
- Page 13 Now the real fun begins—it's time to paint, draw, and create! Here are some tips for making the most of the Deluxe Magnetic Art Easel: DRY-ERASE BOARD • Only use markers (not included) specially formulated for use on dry-erase surfaces.
- Page 14 ADDING PAPER The Deluxe Magnetic Art Easel holds easel paper rolls up to 18 inches wide. STEP Unscrew the bolt caps (P) between the art boards to remove the paper roll dowel (H). STEP • Slide paper roll (not included) onto the dowel (H).
- Page 15 ACCESSORIZE The Melissa & Doug Easel Accessory Set (#4145) has everything needed to get started with the Deluxe Magnetic Art Easel. It includes poster paints, paintbrushes, spill-proof paint cups with lids, dry-erase marker, jumbo chalk sticks, felt eraser, and an easel paper roll.
