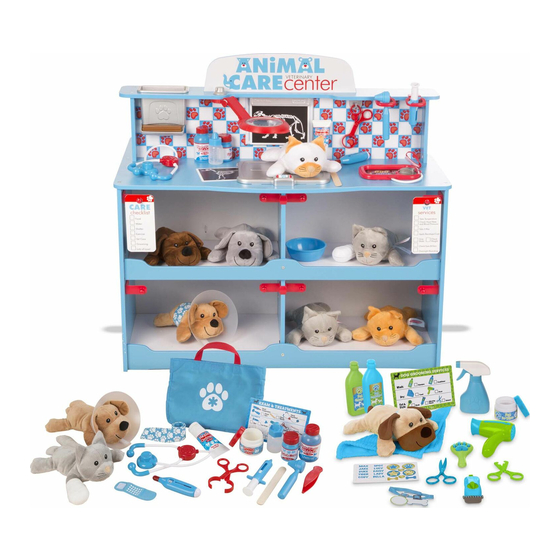

Animal Care Activity Center
ASSEMBLY INSTRUCTIONS
Have a
question
or need help?
Give us a call!
1-800-284-3948
Assembly Instructional Video Available at MelissaAndDoug.com/animalcenter
Item #31700
Ages 3+
DO NOT use power tools to assemble.
Using power tools will cause product to crack!
DO NOT OVER-TIGHTEN!
Over-tightening will cause product to crack!
MADE IN CHINA

Advertisement

loading
Need help?

Need help?

Do you have a question about the AnimalCare ActivityCenter and is the answer not in the manual?

Questions and answers

Related Manuals for Melissa & Doug AnimalCare ActivityCenter

Summary of Contents for Melissa & Doug AnimalCare ActivityCenter

  • Page 1 Animal Care Activity Center ASSEMBLY INSTRUCTIONS Have a question or need help? Give us a call! 1-800-284-3948 Assembly Instructional Video Available at MelissaAndDoug.com/animalcenter Item #31700 Ages 3+ DO NOT use power tools to assemble. Using power tools will cause product to crack! DO NOT OVER-TIGHTEN! Over-tightening will cause product to crack! MADE IN CHINA...

  • Page 2: Maintenance

    THANK YOU! Thank you for choosing the Melissa & Doug Animal Care Activity Center! It’s a terrific way to help spark a child’s creativity and imagination, and to inspire animal lovers for years to come. NOW IT’S TIME TO PUT IT TOGETHER! Don’t worry, assembling your new activity center is simple, and we’re here to help.
  • Page 3 WOOD PANELS - Be Smart—Sort Your Parts right & left counter upper center divider top sign upper sides (2) top counter floor vertical divider kennel front bottom store front bottom right side panel right center divider vet shelf kennel front top grooming shelf store front top left side panel...

  • Page 4: Other Parts

    OTHER PARTS double-sided x-ray wall x-ray knob x-ray knob x-ray x-ray arm x-ray frame hook clip base clip shelf right front bath right rear left rear left front nozzle nozzle with retainer (5) stabilizer stabilizer stabilizer stabilizer knob attachment hose foot foot foot...
  • Page 5 Helpful Hints and Tips • Note: Some packages of hardware may have extra pieces • You will need a Phillips head screwdriver and wrench to assemble the activity center. IMPORTANT: Barrel nuts and screws are used to join the main wood panels together. The barrel nuts have been properly aligned at the factory to allow the screws to easily join the panels.
  • Page 6 IMPORTANT Be smart—sort your parts! Be sure you have all required parts BEFORE beginning assembly! DO NOT use power tools to assemble. Using power tools will cause product to crack! When assembling, DO NOT FULLY TIGHTEN SCREWS UNTIL ALL PANELS ARE CONNECTED. To complete assembly, use hand-held screwdriver to fully tighten all screws until they’re snug.
  • Page 7 STEP 1 - Every Journey Begins with the First Step Using 4 long screws (part 37), attach the right and left upper sides (part A) to the counter (part B). Grooves in the upper sides face inward. ACTUAL SIZE Assembled View...
  • Page 8 STEP 2 - Center Yourself • First, slide the upper center divider (part C) into the grooves in the upper sides. • Second, clip the double-sided hook (part 1) and the x-ray wall clip (part 2) onto the upper center divider (part C).
  • Page 9 STEP 3 - Sign Up Now Using 2 long screws (part 37), attach the top sign (part D) to the top counter (part E). Assembled View...
  • Page 10 STEP 4 - X Marks the Spot • First, insert x-ray knob (part 3) into the large hole on the top counter (part E). • Second, on the underside of the top counter, fit the x-ray knob base (part 4) over the x-ray knob pin until it is flush with the counter.
  • Page 11 STEP 5 - Top it Off • First, using 4 long screws (part 37), attach the top shelf assembly to the right and left upper sides (parts A). • Second, connect the x-ray arm (part 6) to the x-ray frame (part 7). •...
  • Page 12 STEP 6 - The Great Divide • First, firmly press 2 shelf retainers (part 8) into the holes and notches on the floor (part F). Blue side of floor faces up. • Second, flip floor over (white side up). • Third, slide the vertical divider (part G) into the slot in the floor. •...
  • Page 13 STEP 7 - Get to the Bottom of It • First, press the kennel front bottom (part H) onto the shelf retainers. • Second, using 1 long screw (part 37) in the center, attach the kennel front bottom (part H) to the long edge of the floor.
  • Page 14 STEP 8 - Don’t Forget the Dowels • First, on the opposite side of the assembly, insert 2 wood dowels (part 38) into the holes at the bottom of the vertical divider (part G). • Second, slide the store front bottom (part I) onto the dowels. •...
  • Page 15 STEP 9 - Can’t Beat These Feet Using 2 bolts (part 39), 2 nuts (part 40), and the wrench (part 41), attach the right rear and right front stabilizer feet (parts 9 & 10) to the right side panel (part J). IMPORTANT: Make sure lock nuts are properly...
  • Page 16 STEP 10 - That’s Right With the height chart facing out, use 3 long screws (part 37) to attach the right side panel (part J) to the floor (part F). Melissa & Doug Customer Service: 1-800-284-3948 Assembled View...
  • Page 17 STEP 11 - Feeling Groovy • First, slide the right center divider (part K) into the grooves in the vertical divider (part G) and the right side panel (part J). • IMPORTANT: Fully tighten all screws until snug now. • Second, rotate assembly. •...
  • Page 18 STEP 12 - Topsy-Turvy • First, firmly press two shelf retainers (part 8) into the holes and notches on the vet shelf (part L). • Second, press the kennel front top (part M) onto the shelf retainers. • Third, slide the vet shelf assembly into the slot on the vertical divider (part G). Slightly angle vet shelf assembly so tabs fit into the holes on the right side panel (part J), then lower into groove.
  • Page 19 STEP 13 - There’s Always Room to Groom • First, firmly press a shelf retainer (part 8) into the holes and notch on the grooming shelf (part N). • Second, press the store front top (part O) onto the shelf retainer. •...
  • Page 20 STEP 14 - Two Left Feet Using 2 bolts (part 39), 2 nuts (part 40), and the wrench (part 41), attach the left rear and left front stabilizer feet (parts 11 & 12) to the left side panel (part P). IMPORTANT: Make sure lock nuts are properly...
  • Page 21 STEP 15 - What’s Left With the hours of operation facing up, use 2 long screws (part 37) to attach the left side panel (part P) to the top of the pet center assembly. Assembled View...
  • Page 22 STEP 16 - Get Into the Groove • First, slide the left center divider (part Q) into the grooves in the left side panel (part P) and the vertical divider (part G). • Second, tighten all screws, then tip so the center rests on the stabilizer feet.
  • Page 23 STEP 17 - Everything and the Kitchen Sink 37 7 • First, on the grooming side, using 2 long screws (part 37), attach the sink front (part R) to the front of the vertical divider. (White side of sink faces out.) •...
  • Page 24 STEP 18 - Get Back With the tab facing down, slide sink back (part S) into the grooves in the left side panel (part P) and the vertical divider (part G). IMPORTANT: The tab on the sink back will fit into the notch in the top of the grooming shelf.
  • Page 25 STEP 19 - This is Where the Hose Goes • First, insert the bath knob (part 13) into the hole in the nozzle attachment (part 14) and press down until it “clicks” into place. • Second, insert the bath nozzle attachment into the hole and slot in the counter assembly.
  • Page 26 STEP 20 - Tighten Up Be sure all panels and dividers are properly slotted in the grooves. Tighten all screws. IMPORTANT: Fully tighten all screws. Melissa & Doug Customer Service: 1-800-284-3948...
  • Page 27 STEP 21 - Counter Attack Using 8 long crews (part 37), attach the counter assembly to the top of the activity center assembly. IMPORTANT: Make sure nozzle hose is between the left center divider and the sink back. Assembled View...
  • Page 28 STEP 22 - What a Treat • First, insert the treat tray A (part 17) through the holes in the upper center divider and connect on the opposite side to the treat tray B (part 18). • Second, insert the tip of the top shelf divider (part 19) into the notch behind the store front top (part O), then lower the divider so the tab fits into the notch in the grooming shelf.
  • Page 29 STEP 23 - Hold Everything Insert the pump dispenser (part 21), grooming tool holder (part 22), treat chute (part 23), phone cradle (part 24), shelf clips (part 25). Press firmly. Slide shelf clip labels (part 26) into shelf clips. Rest the phone (part 27) in the phone cradle.
  • Page 30 STEP 24 - The Vet Is Set • First, on the opposite side of the center, attach the x-ray bed (part 28) to the counter. (X-ray bed doubles as a pretend scale and fits loosely to allow some movement.) • Second, clip the 2 tool clips (part 29) to the upper counter. (These clips are movable and can go anywhere!) •...
  • Page 31 STEP 25 - What Fun, You’re Done • First, insert the bpm card (part 32) into the bpm base (part 33). • Second, attach the blood pressure monitor to the counter. Insert the blood pressure knob (part 31) through the holes in the blood pressure monitor and the counter.
  • Page 32 YOU DID IT! Now the real fun begins—it’s time to examine, treat, groom, and care for plush pets of all shapes and sizes! Here are some of the special features of the Animal Care Activity Center: • MULTI-SIDED FOR ALL AROUND FUN: Take care of all of favorite stuffed animals’ needs! There’s a vet side for examining play pets and treating injuries and illnesses, a grooming side for bathing, pampering, and boarding, an hours of operation sign on one end, and an adorable growth chart on the other.
