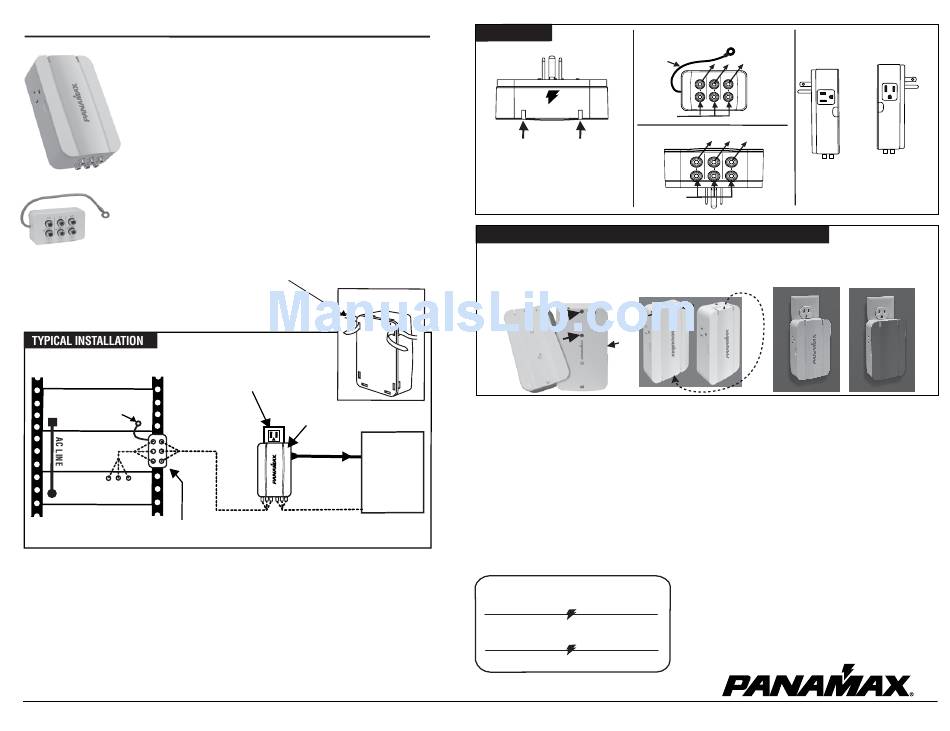

Panamax MD2-RCA Installation Instructions

INSTALLATION INSTRUCTIONS MD2-RCA
1. Turn off the equipment you are plugging into the MD2-RCA.
2. Plug the surge protector into the wall outlet. A red "Line Fault" light indicates
an improperly wired outlet that must be checked by a qualified electrician.
3. If the blue "Power On Protection OK" light is on, plug your equipment into
the AC outlets on the surge protector.
The protection circuitry on the MD2-RCA and MD2-RCA MODULE only
work if the signal lines are connected properly.
MD2-RCA
4. Connecting signal lines to the MD2-RCA: The lines coming from the MD2-RCA
MODULE plug into the "IN" jacks. Lines from the "OUT" jacks then connect to the
equipment being protected.
4.5 Connecting signal lines to the MD2-RCA MODULE: The lines coming from the
MD2-RCA plug into the "IN" jacks. Lines from the "OUT" jacks then connect to
the source equipment in the rack.
MD2-RCA MODULE
5. To mount module to rack, slide zip ties through slots on back. Wrap and tie
around leg on equipment rack.
6. Turn the connected equipment ON and
check for power and correct operation.
EQUIPMENT
PROPERLY GROUNDED
RACK
GROUND WIRE CONNECTED
TO PANAMAX COMPONENT
GROUND LUG
SIGNAL
SIGNAL LINE OUT
LINE IN
TO SOURCE
COMPONENT
CONNECTED TO
SOURCE COMPONENT
MD2-RCA MODULE
STRAPPED TO RACK LEG WITH ZIP TIES (INCLUDED)
IMPORTANT SAFETY POINTS
Panamax surge protectors and the connected equipment must be indoors in a dry location and in the same building. Do not install any
Panamax product near heat emitting appliances such as a radiator or heat register. Do not install this product where excessive
moisture is present; for example, near a bathtub, sink, pool, basement floor, fish tank, etc.
It is not uncommon for a building to be improperly grounded. In order to protect your equipment, and validate the warranty, Panamax
products must be plugged into a properly grounded 3-wire outlet. Additionally, building wiring and grounding must conform to
applicable NEC (USA) or CEC (Canada) codes for the Panamax warranty to be valid.
Do not use 2-prong adapters with this product. If an extension cord is required, use only Panamax #GEC1410. If at any time your
surge protector indicates a Line Fault, call your electrician to correct the building wiring.
