Panamax MD2 Installation Instructions

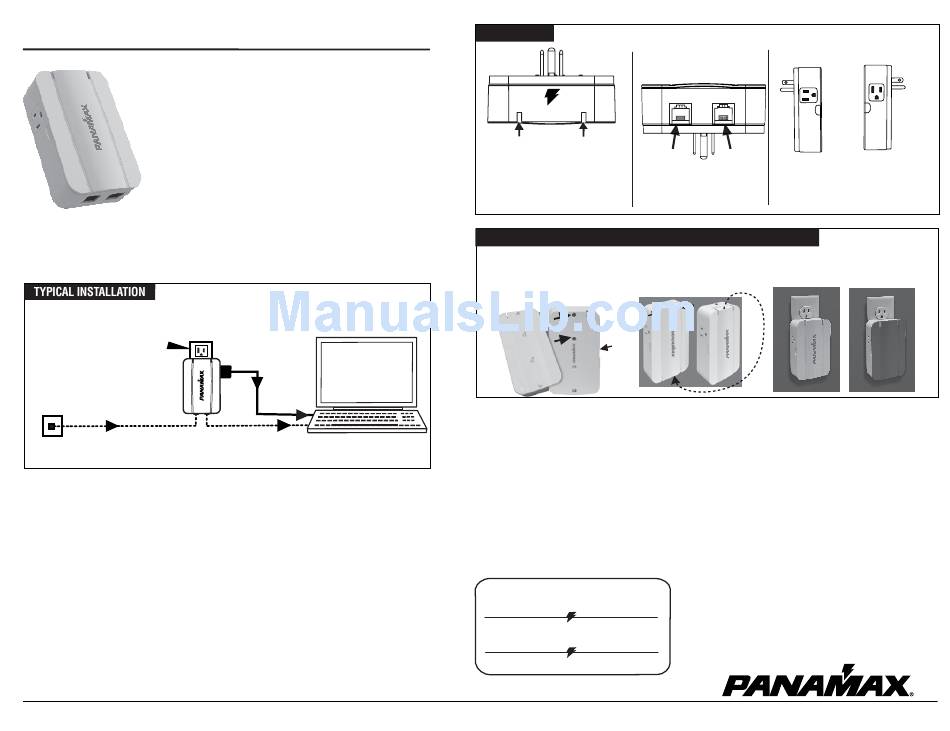

INSTALLATION INSTRUCTIONS MD2-TL
1. Turn off the equipment you are plugging into the MD2-TL.
2. Plug the surge protector into the wall outlet. A red "Line Fault" light indicates
an improperly wired outlet that must be checked by a qualified electrician.
3. If the blue "Power On Protection OK" light is on, plug your equipment into
the AC outlets on the surge protector.
4. Connect incoming LAN or Telephone lines to the LAN /TEL IN connection.
The protection circuitry only works if connected properly. The incoming line from
the wall outlet must be plugged into the "LAN /TEL IN" jack. The telephone
equipment or modem must be plugged into the "LAN /TEL OUT" jack.
MD2-TL
5. Turn the connected equipment ON and check for power and correct operation.
PROPERLY GROUNDED
AC OUTLET
MD2-TL
TEL OR LAN
WALL
OUTLET
TEL
LINE
IMPORTANT SAFETY POINTS
Panamax surge protectors and the connected equipment must be indoors in a dry location and in the same building. Do not install any
Panamax product near heat emitting appliances such as a radiator or heat register. Do not install this product where excessive
moisture is present; for example, near a bathtub, sink, pool, basement floor, fish tank, etc.
It is not uncommon for a building to be improperly grounded. In order to protect your equipment, and validate the warranty, Panamax
products must be plugged into a properly grounded 3-wire outlet. Additionally, building wiring and grounding must conform to
applicable NEC (USA) or CEC (Canada) codes for the Panamax warranty to be valid.
Do not use 2-prong adapters with this product. If an extension cord is required, use only Panamax #GEC1410. If at any time your
surge protector indicates a Line Fault, call your electrician to correct the building wiring.
