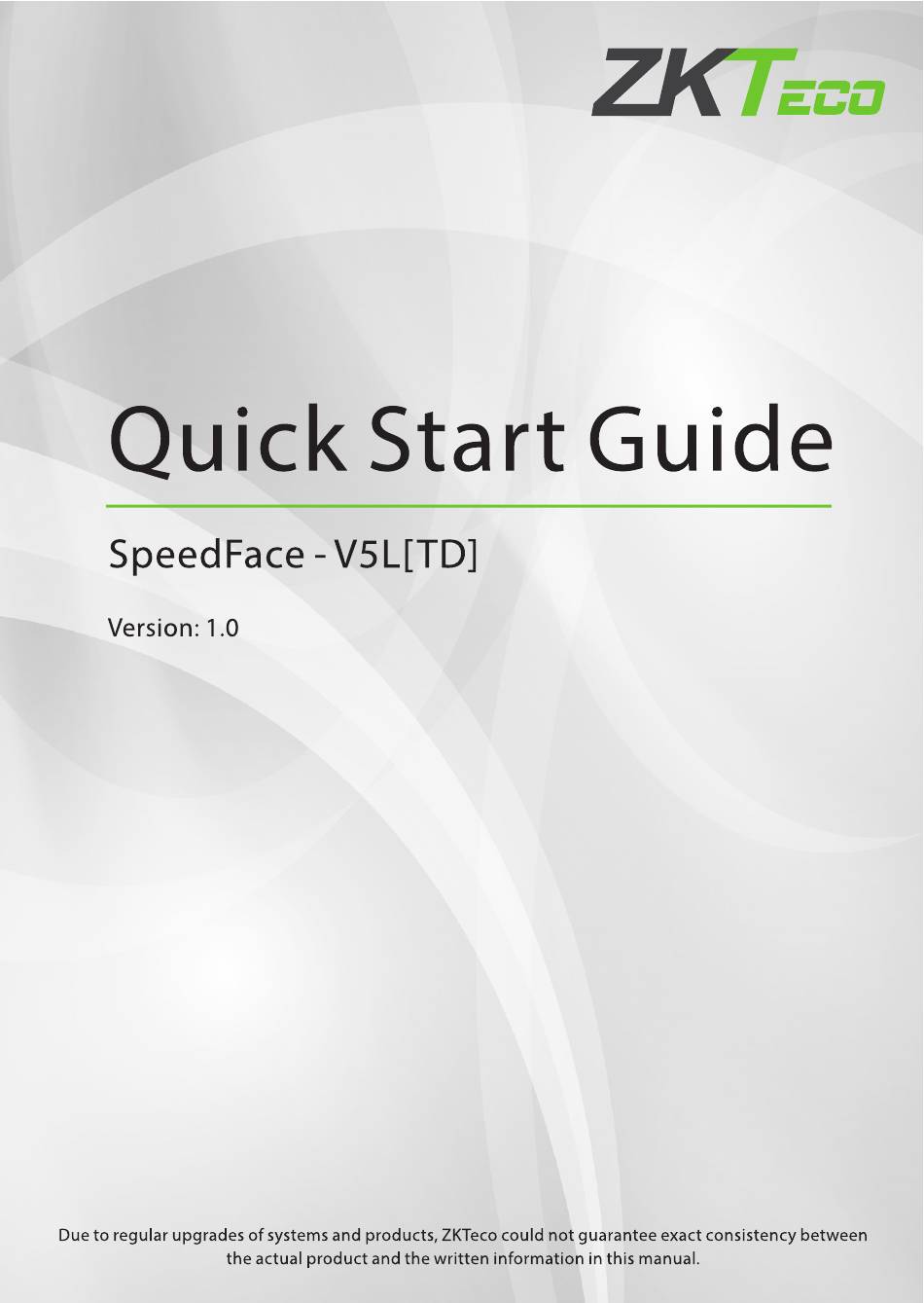

- Page 1 Quick Start Guide SpeedFace -V5L[TD] Version: Due to regular upgrades of systems and products, ZKTeco could not guarantee exact consistency between the actual product and the written information in this manual.
- Page 2 Overview Thermal infrared temperature measurement module Flash Camera & Palm collector Microphone * 5" touchscreen Fingerprint sensor Magnetic tamper ALIX Auxiliary switch input Power RXD2 TXD2 Speaker Reset Exit Button IWOo Lock 485A RS48S Alarm Note: Not all products have the function with * ,the real product shall prevail. Installation Environment Please refer to the following recommendations for installation.
- Page 3 Device Installation 1.5m (i) Attachthe mounting templatestickerto the wall,anddrill holesaccordingto the mounting paper. Fixthe back plate on the wall using wall mounting screws. @Attach the deviceto the backplate. @ Fasten the deviceto the backplatewith asecurityscrew. Standalone Installation Alarm Smoke detector Door sensor Exit button Card...
- Page 4 Door Sensor, Exit Button & Alarm Connection Smoke Detector Door Sensor Exit Button Alarm's power switch Alarm Lock Relay Connection The system supports Normal y Opened Lock and Normally Closed Lock. The NO OCK (normally opened at power on) is connected with 'NOI' and 'COM' terminals, and the NCLOCK(normal y closed at power on) isconnected with 'NCI ' and 'COM' terminals.
- Page 5 RS485 and RS232 Connection RXD2 RS232 TXD2 Reader RS232 RXD Reader RS485 485+ 485A Reader 485- 485B Wiegand Reader Connection IWDo v.'D1 IWI) Wiegand Reader Access controller...
- Page 6 Power Connection 12V DC Recommended power supply 121/ ± 10%, at least 3000mA. 2) To sharethe power with other devices,usea power supply with higher current ratings. Ethernet Connection ZKBioAccess p address: 192168.1 Subnet mask: 255.2552550 Default IP address: 192.168.1.201 Subnet mask: 255.2552550 Click [COMM.] >...
- Page 7 User Registration When there is no super administrator set in the device, click on to enter the menu. After setting the super administrator,the system will request for the administrator's verification before entering the menu. For the security purpose, it is recommended to registera superadministratorat the first time you usethe device.
- Page 8 Method 2: Register on ZKBioAccess MTD software Please set the IP address and cloud service server address on the device. 1. Click [Access] > [Access Device] > [Device] > [Search Device] to add the device to the software. When the device has set the server address and port, it can be added automatically.
- Page 9 Method 3: Register on the phone Once ZKBioAccess MT D software installed, users could enroll face via browser applica- tion on their own mobile phone. I . Click [Personnel] > [Parameters], input "http://Server address:Port" in the QR Code UGLbar.Thesoftware will automatically generates a QRcode. Scanthe QRcode or login onto "http://Server address:Port/app/v1/adreg"...
- Page 10 Ethernet and Cloud Server Settings Click > [COMM.] > [Ethernet] to set the network parameters. If the TCP/IP communication of the device is successful, the icon WII be displayed in the upper right cornerof the standby interface. Click on > [COMM.] > [Cloud Server Setting] to set the server address and server port, that is, the P address and port number of the server after the software is installed.If the device communicates with the serversuccessfully, t he •con Will be...
- Page 11 O OOO G.te Rule s.ttjna Records Query > [Attendance Search] > [Attendance Record] to enter the records query Click on interface, input the user ID and select the time range, the corresponding attendance logs will be displayed. couv 1129...
- Page 12 Detection Management Settings Click on > [System] > [Detection Management] to enter the setting interface. 1.You can set the value of High temperature alarm threshold. The device will send an alarm prompt when the temperature of the user detected exceeds this value. 2.When the Temperature over the range;...
- Page 13 Notes: 1.The effective distance for temperature detection is within 50cm. 2. Recommended for indoor use. 3.Temperaturemeasurement data isfor referenceonly, not for medical use. 4 Removethe maskto register the face,wear a maskto recognizethe face,the type of mask,the sizeof the face covered by the mask,and bangs will affect the facial recognition effect.
- Page 14 Real-Time Monitorin admin For more details, please refer to the ZKBioAccess MTD User Manua .
- Page 15 Note for Palm Registration and Verification Notes: 1. Placeyour palm within 30-50cm of the device. 2. Place your palm in the palm collection area, such that the palm is placed paral eI to the device. 3. Makesureto keep spacebetween your fingers. Thisdevicecomplies with part 15 ofthe FCCRules.Operation issubjectto the following conditions: (1)This device may not cause harmful interference, and (2) this device must accept any...
- Page 16 the userisencouragedto try to correctthe interferenceby one or moreofthe following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipmentand receiver. O Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Page 17 ZKTeco Industrial Park, No. 26, 188 Industrial Road, Tangxia Town, Dongguan, China. Phone : +86 769-82109991 : +86 755 - 89602394 www.zkteco.com Copyright a 2020 ZKTECOCO.,LTD.All Rights Reserved.
