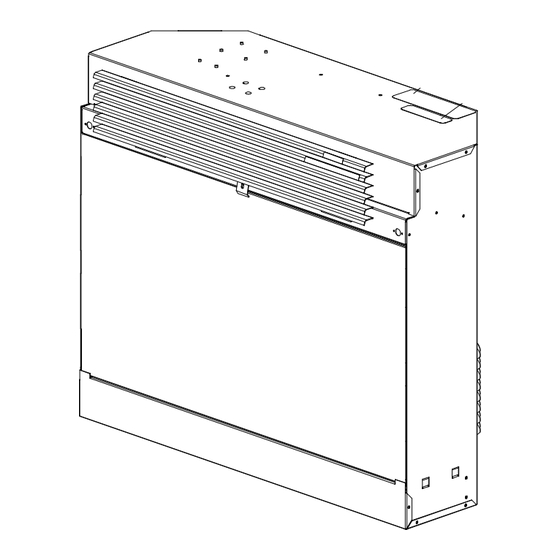

Dimplex 30" FIREPLACE User Manual

Dimplex 30" FIREPLACE User Manual

Electric fireplace
Hide thumbs Also See for 30" FIREPLACE:

Advertisement

Quick Links

Download this manual See also: Owner's Manual
PRACTICAL USER'S GUIDE
FOR THE ELECTRIC FIREPLACE
Valued Customer,
We are pleased that you have chosen
to purchase an electric fireplace
manufactured by Dimplex North America
Ltd.
Over the years, valuable memories
will occur around the warmth and
comfort of your hearth.
MODEL NUMBER:
30" FIREPLACE
Quality checked by:
Thank you for

Advertisement

loading
Need help?

Need help?

Do you have a question about the 30" FIREPLACE and is the answer not in the manual?

Questions and answers

Related Manuals for Dimplex 30" FIREPLACE

Summary of Contents for Dimplex 30" FIREPLACE

  • Page 1 FOR THE ELECTRIC FIREPLACE 30” FIREPLACE Valued Customer, We are pleased that you have chosen to purchase an electric fireplace manufactured by Dimplex North America Ltd. Over the years, valuable memories will occur around the warmth and comfort of your hearth.
  • Page 2 allowing our product to be the backdrop for those special moments. CONTENTS PAGE 1 PAGE 2 PAGE 3 PAGE 4 PAGE 5 PAGE 8 PAGE 11 Important Instructions Model and Serial Number Information Site selection and preparation Fireplace installation Operation Maintenance Warranty 7205450200REV05...
  • Page 3 4. If you have any technical questions or concerns regarding the operation of your fireplace, or require service contact Dimplex North America customer service at 1-888-DIMPLEX (1-888-346-7539) before returning the product to the point of purchase.
  • Page 4 IMPORTANT INSTRUCTIONS SAVE THESE INSTRUCTIONS PLEASE RETAIN THIS USER’S GUIDE FOR FUTURE REFERENCE When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: 1. Read all instructions before using the electric fireplace. 2.

  • Page 5: Important Instructions

    IMPORTANT INSTRUCTIONS If you have any questions about our products please have the product model and serial numbers available upon calling Dimplex customer service. To locate the model and serial number labels see below. Model Number Serial Number Firebox Carton...

  • Page 6: Site Selection And Preparation

    Existing Fireplace New wall construction Dimplex mantel surround kit or custom made mantel surround NOTE The fireplace insert comes completely assembled and wired. Some tools may be required to prepare the site and assembly/install the trim.

  • Page 7: Existing Fireplace Installation

    EXISTING FIREPLACE INSTALLATION 1. Seal all drafts and vents with non-fibrous insulation materials to prevent chimney debris from falling into the fireplace insert. Do not install into an existing fireplace that is prone to leaks or dampness. 2. Cap the top of the chimney flue to prevent rain from entering. 3.

  • Page 8: Fireplace Insert Installation

    DIMPLEX MANTEL SURROUND KIT OR CUSTOM MADE MANTEL SURROUND 1. Select a suitable location that is not susceptible to moisture and is away from drapes, furniture and high traffic. 2. Place the fireplace in the desired location to see how it will look in the room.
  • Page 9 OPERATION Remote Control Operation Warning: It takes some time for the receiver to respond to the transmitter. Do not press the buttons more than once within two seconds for correct operation. Note: The fireplace has an automatic timer function that will shut your fireplace off if the remote control has not been operated within a six-hour period.
  • Page 10 Batteries 1. The remote control uses 3 AAA size batteries (included). Replace these batteries at least every 6 months or when the low battery appears on the remote display screen. 2. When batteries are removed wait at least 1 minute before replacing with new batteries. Code selection If the current remote control is interfering with the operation of other remote control devices (TV, VCR, garage doors etc.) The code can be changed on the remote.

  • Page 11: Resetting The Temperature Cutoff Switch

    It can be reset by switching the MAIN ON/OFF SWITCH to OFF and waiting 5 minutes before switching the unit back on. CAUTION If you need to continuously reset the heater, unplug the unit and call Dimplex North America Limited at 1-800-668-6663.

  • Page 12: Maintenance

    MAINTENANCE WARNING Disconnect power before attempting any maintenance or cleaning to reduce the risk of fire, electric shock or damage to persons. LIGHT BULB REPLACEMENT Allow at least 5 minutes for light bulbs to cool off before touching bulbs to avoid accidental burning of skin.
  • Page 13 LOWER LIGHT BULB REQUIREMENTS Quantity of 4 clear chandelier or candelabra bulbs with an E-12 (small) socket base, 60 watt rating. To replace the top light bulbs: 1. Locate the two upper bulbs inside the firebox at the top. 2. Examine the bulbs to determine which bulbs require replacement. 3.

  • Page 14: Five Year Limited Warranty

    Subject to the provisions of this warranty, Dimplex warrants such products to be free from defects in material and workmanship for a period of 5 years from the date of the first purchase of such products as follows: (a) a repair or replacement warranty on defective products or parts, including in-home services, for the first two years following the date of first purchase;...
  • Page 15 If Dimplex is unable to repair or replace such product or part, or if repair or replacement is not commercially practicable or cannot be timely made, Dimplex may, in lieu of repair or replacement, choose to refund the purchase price for such product or part.
  • Page 16 (mantels) and trims or part thereof without charge. If Dimplex is unable to repair or replace such product or part, or if repair or replacement is not commercially practicable or cannot be timely made, Dimplex may, in lieu of repair or replacement, choose to refund the purchase price for such product or part.
