Field Controls SWGII-4HD Quick Start Manual

This kit includes a replacement assembly for the SWG and SWGII series sidewall power
venter models listed above.
NOTE: Before working on power venter, shut off electrical power to control box.

ITEMS INCLUDED:

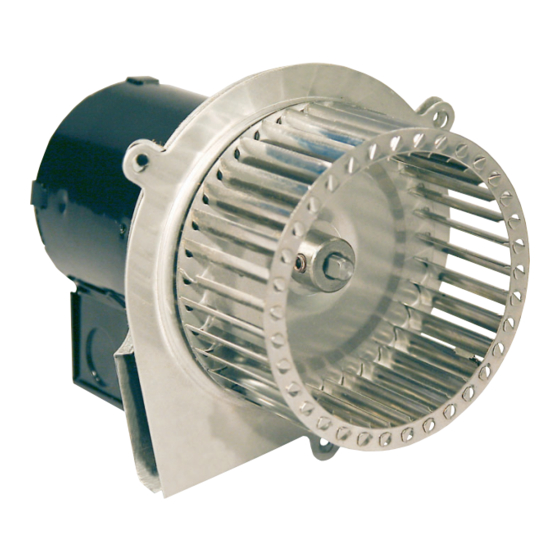

1- Replacement Motor and Blower Wheel on Mounting Bracket with Mounting Fasteners
1- ⁄ " Hex wrench
1
8
1- Instruction Sheet
READ THESE INSTRUCTIONS CAREFULLY AND COMPLETELY BEFORE PROCEEDING WITH THE INSTALLATION.
This device MUST be installed by a qualifi ed agency in accordance with the manufacturer's installation instructions. The defi nition of
a qualifi ed agency is: any individual, fi rm, corporation or company which either in person or through a representative is engaged
in, and is responsible for, the installation and operation of HVAC appliances, who is experienced in such work, familiar with all the
precautions required, and has complied with all the requirements of the authority having jurisdiction.
Installed By:

REPAIR MOTOR KIT

Model: SWG-4HD, SWGII-4HD, SWG-5,
SWGII-5, SWG-6, SWGII-6
Please retain these instructions after installation.
Phone:
www.fi eldcontrols.com
Installation Date:
P/N 46252300 Rev I 12/21
