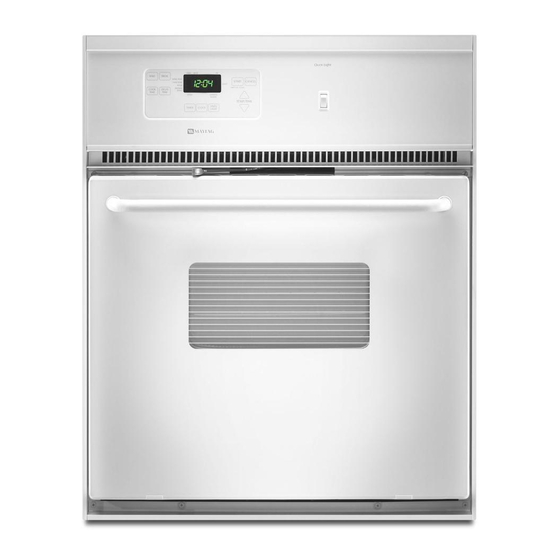

Maytag CWE4800ACS Installation Instructions Manual

24" electric built-in single cavity wall ovens
Hide thumbs

Advertisement

YT_&(3
®

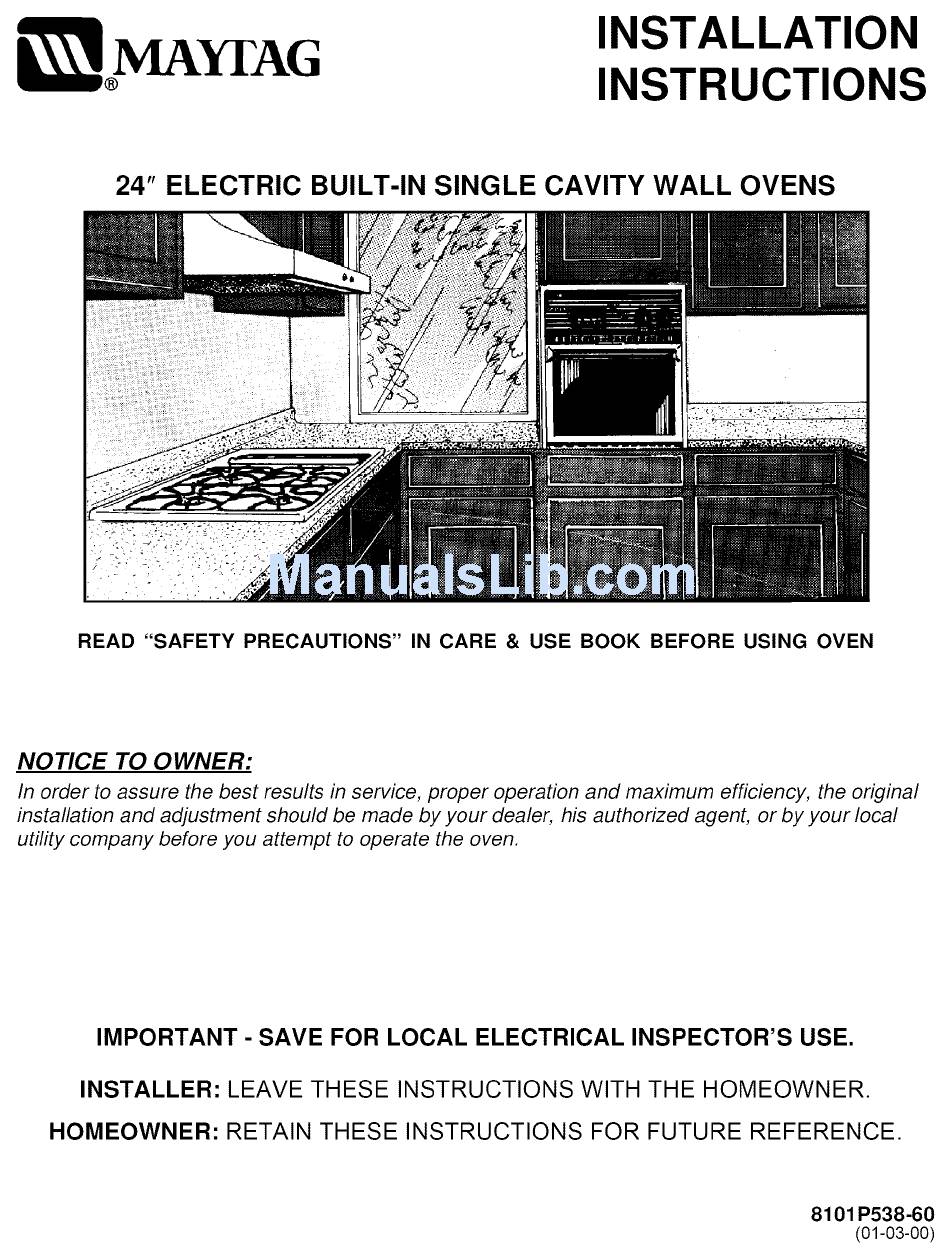

INSTALLATION
INSTRUCTIONS
24" ELECTRIC
BUILT-IN SINGLE CAVITY WALL OVENS
READ
"SAFETY
PRECAUTIONS"
IN CARE
& USE BOOK
BEFORE
USING OVEN
NOTICE
TO OWNER:
In order to assure the best results in service, proper operation and maximum efficiency, the original
installation and adjustment should be made by your dealer, his authorized agent, or by your local
utility company before you attempt to operate the oven.
IMPORTANT
- SAVE FOR LOCAL ELECTRICAL
INSPECTOR'S
USE.
INSTALLER:
LEAVE THESE INSTRUCTIONS
WITH THE HOMEOWNER.
HOMEOWNER"
RETAIN THESE INSTRUCTIONS
FOR FUTURE REFERENCE.
8101 P538-60
(01-03-00)

Advertisement

loading

  Also See for Maytag CWE4800ACS

  Related Manuals for Maytag CWE4800ACS

  Summary of Contents for Maytag CWE4800ACS

  • Page 1 INSTALLATION YT_&(3 INSTRUCTIONS ® 24" ELECTRIC BUILT-IN SINGLE CAVITY WALL OVENS READ "SAFETY PRECAUTIONS" IN CARE & USE BOOK BEFORE USING OVEN NOTICE TO OWNER: In order to assure the best results in service, proper operation and maximum efficiency, the original installation and adjustment should be made by your dealer, his authorized agent, or by your local utility company before you attempt to operate the oven.
  • Page 2 24" ELECTRIC BUILT-IN SINGLE CAVITY WALL OVENS 22" WIDE CUTOUT PROVIDE 120/240 120/208 VOLT ELECTRICAL CONNECTION IN THIS AREA. 24" FRONT CABI 6" WIRE 7/8" O.D. FLEXIBLE CABLE 4"0" LONG, FURNISHED MANUFACTURER. 1II6" 29-5/8" 2-9/16" SECURE OVEN CABINET THROUGH HOLES PROVIDED IN TRIM, FOUR...
  • Page 3 LOCATION Place oven where it will be well lighted. For proper baking WARNING and cooking results, oven must be level. Use a spirit level on center oven rack to level. THIS ELECTRIC OVEN IS APPROVED FOR INSTALLATION IN COMBUSTIBLE Be sure OVEN is DISCONNECTED from POWER CABINETRY.
  • Page 4: Instrucciones De Instalacion

    INSTRUCCIONES YTAG DE INSTALACION ® HORNOS ELi_CTRICOS EMPOTRADOS DE PARED CON CAVIDAD SENCILLA DE 24" LEA LAS "INSTRUCCIONES DE SEGURIDAD" EN EL MANUAL DE CUIDADO Y USO ANTES DE USAR EL HORNO A VlSO AL PROPIETARIO: Para garantizar los mejores resultados en el servicio, el funcionamiento apropiado y la maxima...
  • Page 5 HORNOS ELI_CTRICOS EMPOTRADOS DE PARED CON CAVIDAD SENCILLA DE 24" HUECO DE 22" DE ANCHO DEJE PREPARACI PARA COLECCION ELECTRICA 1201240, 1201208 VOLTIO$ ESTA AREA. FRENTE GABINE 24" CABLE FLEXIBLE 7/8" DI#METRO INTERNO 4'0" LARGO PROVISTO FABRICANTE CONDUCTORES ELECTRICOS 28-11/16" 22-3/8"...
  • Page 6 UBICACION Coloque el homo en donde este bien iluminado. Para obtener los mejores resultados en el homeado y la ADVERTENCIA cocci6n, el homo debe estar bien nivelado. Use un nivel de burbuja en el centro de la parrilla del homo para Asegt_rese de que et HORNO este DESCONECTADO nivelarlo.
  • Page 7: Mise En Service

    MISE EN MKWA(; SERVICE ® FOURS I=LECTRIQUES ENCASTRI=S DE 24 PO .A UNE CAVITI= LIRE LES "MESURES DE SleCURIT¢:" DANS LE MANUEL DE L'UTILISATEUR AVANT D'UTILISER LE FOUR. A L'INTENTION DE L'UTILISA TEUR : Pour assurer un fonctionnement correct et efficient et des resultats optimums au niveau du service...
  • Page 8 FOURS ELECTRIQUES ENCASTRES ._ UNE CAVITE DE 24 PO DF:COUPE DE 22 PO DE LARGE PREVOIR RACCORDEMENT L'ALIMENTATION _LECTRIQUE 120/240 120/208 VOLTS DANS CETTE ZONE 24" DEVANT L'ARMOI CABLE FLEXIBLE DE 7/8 PO-- DE DIAM. EXT. ET 4 PI LONG FOURNI PAR LE FABRICANT 28-1...
  • Page 9 EMPLACEMENT Mettre le four dans un endroit oQ il recevra un bon AVERTISSEMENT eclairage. Pour des resultats optimums a la cuisson, le four doit 6tre de niveau. Le mettre de niveau a I'aide d'un niveau place sur la grille centrale. CE FOUR S'assurer le FOUR D¢:BRANCH¢:...
