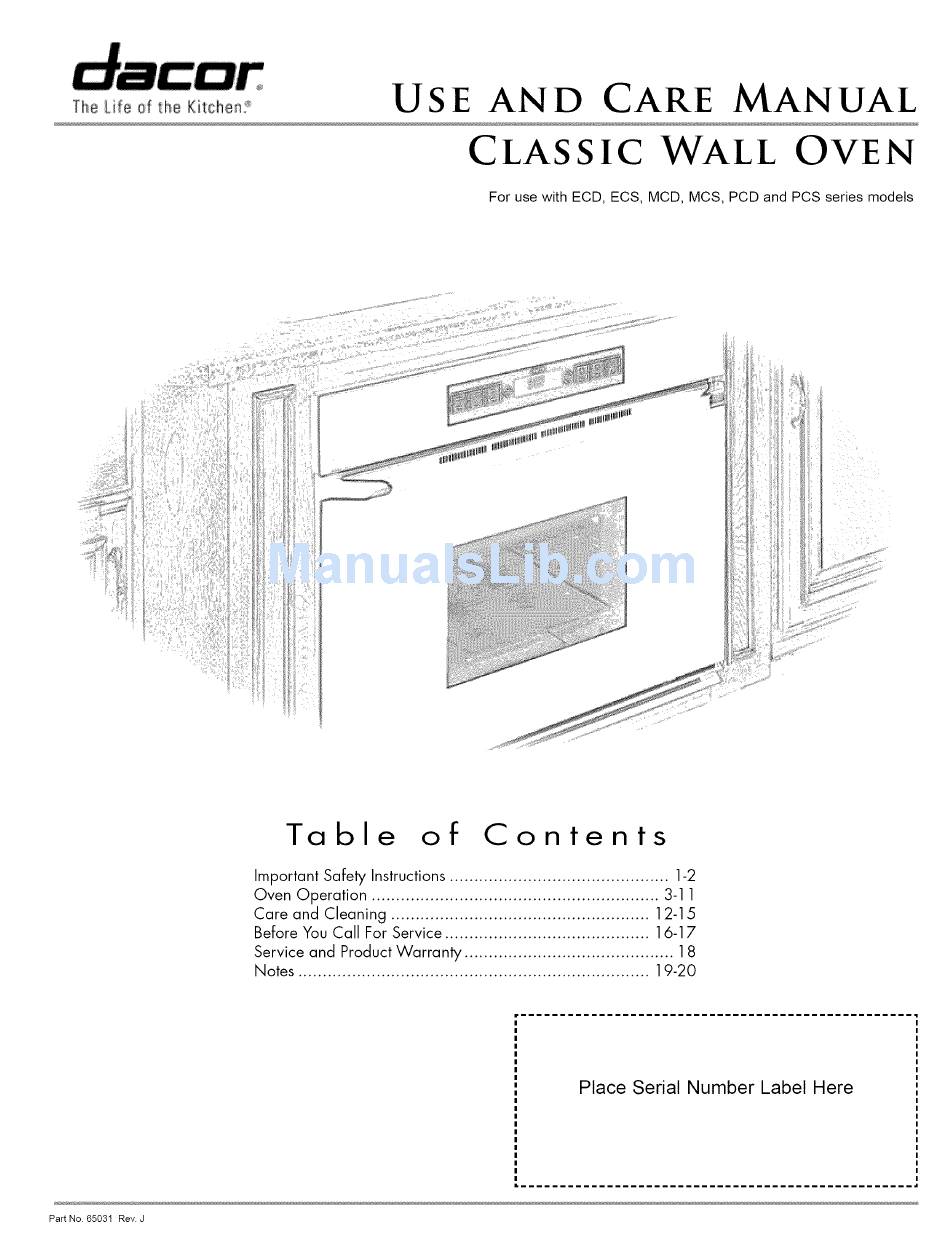

The Life o_ the Kitchen
CLASSIC
WALL
OVEN
For use with ECD, ECS, MCD, MCS, PCD and PCS series models
Table
of
Contents
Important Safety Instructions .............................................
1-2
Oven Operation ...........................................................
3-11
Care and Cleaning .....................................................
12-15
Before You Call For Service ..........................................
16-17
Service and Product Warranty ...........................................
18
Notes ........................................................................
19-20
Place Serial Number
Label Here
Part No. 65031
Rev. d
Advertisement
Table of Contents
Related Manuals for Dacor ECS130SCH
Summary of Contents for Dacor ECS130SCH
- Page 1 US E AND CARE MANUAL The Life o_ the Kitchen CLASSIC WALL OVEN For use with ECD, ECS, MCD, MCS, PCD and PCS series models Table Contents Important Safety Instructions ..........Oven Operation ............3-11 Care and Cleaning ............. 12-15 Before You Call For Service ..........
- Page 2 Thank you for choosing Dacor for your home. We are a company built by families for families and we are dedicated to serving yours. We are confident that your new Dacor product will deliver a high level of performance and enjoyment for many years to come.
- Page 3 Serial Number Date of Purchase For service and warranty information, see page 18. Since Dacor is constantly improving the quality and performance of our appliances, we may need to make changes to the appliance without revising this manual. Important Information About Safety...
-
Page 4: Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS General Safety Precautions To reduce the nsk of fire, electnc shock, senous injury or death when using your oven, follow basic safety precautions, _nclud_ngthe following • If you receive a damaged product, immediately contact • Do not use the oven for storage your dealer or builder Do not install or use a damaged •... -
Page 5: Getting Started
Getting Started Setting The Time Of Day Before using your oven, become familiar with the features and Follow these two steps to set the correct time of day: control panel layout (see pages 4 and 5). Press the CLOCK key. The time of day wilt flash, "AM" or Below the oven mode touch keys are three touch keys "PM"... -
Page 6: Control Panel
Control Panel Control Panel - Epicure ® Models ECD227 and ECD230 Control Panel - Epicure ® Models ECS227 and ECS230 Control Panel - Epicure ® Models ECS127, ECS130 and ECS136 i,ivii i,ilI P_o_E CONVECTION _AKE PURE CONWCTION puR_CONVEC_IeN CINVECTION B AKE CONV_CTION B_OIL TIME... - Page 7 _n_Dr cook _IME STOP T IME LICHT puR_ CONVECTION CONVECTION 8AK_ P_OB_ ....TIM_ T_M_ATUR_ ® Control Panel - Millennia T_Models MCS127 and MCS130 iiiii f _O 3s0°12"-"-'.,_,,_, 3s0° ..siiiiiiiiii ,,,i ii{{{7_ {iitiiiiif tiii_i{7f,,, iii, f1 ;_QI !! f i{b I_AKE I_AKE f-:{i:...
- Page 8 Rack Positions and glide at a full extension. The full extension of the rack allows you to slide pizza on and off with great ease when using Dacor's Helpful Hints When Using Your GlideRack Oven Rack optional pizza stone (model number ABS20). It is also great for •...
-
Page 9: Oven Mode Selection
Oven Modes Oven Mode Selection All oven modes are described below: Follow these steps to manually operate the oven in standard bake, Pure Convection or convection bake mode: STANDARD BAKE - In standard bake mode, the bottom Position oven rack(s) at the proper height(s). heating element provides conventional radiant heat. -
Page 10: Multiple Rack Baking
iiiii OVEN What Is Pure Convection? • Wait until the shortest recommended baking time before checking food. For baked goods, a wooden pick placed in the center should come clean when the food is done. Your new oven has the best cooking system available today, Pure Convection. -
Page 11: Delay Timed Cooking
Season the clock display, the broiler element wilt begin heating. second side just before removing. Dacor recommends that you set the minute timer(s) to time To prevent sticking, lightly grease the broiler grill. Excess the broiling process (see page 11). -
Page 12: Using The Meat Probe
Delay Timed Cooking (Continued) Using the Meat Probe To begin cooking immediately and turn off at the desired For many foods, especially roasts and poultry, internal food time: temperature is the best test for properly cooked food. The meat probe takes the guesswork out of roasting by cooking food to the Position oven rack(s) at the proper height(s). -
Page 13: Using The Minute Timer
TIME • TEMPERATURE keys. A "jump-in" temperature Dacor recommends that you set the minute timer(s) to time 160 ° will appear when the TIME • TEMPERATURE key is the process (see page 11). -
Page 14: Broiler Pan And Grill
Porcelain Surfaces The oven interior and inner door liners are finished in porcelain enamel. Clean these surfaces with a solution of mild detergent and hot water. Rinse and dry with a soft cloth. Do not use abrasives or commercial oven cleaners. Always remove excess grease and soil from the oven interior and door prior to using the self-cleaning cycle. -
Page 15: Self Cleaning
• Soak the filterinhotsoapy w ater. Remove the broiler pan and grill, all cookware, utensils and other loose items from the oven chamber. Also, remove all • Dry thefilter completely before r e-installing oven racks and the convection fan filter to prevent them from •... -
Page 16: Adjusting The Oven Temperature
Self-Cleaning (Continued) Adjusting the Oven Temperature About 50 to 60 minutes is required for the oven to reach the IMPORTANT: self-clean temperature of 850°F. You may find the temperature in their new oven to be different The self-clean cycle can be stopped at any time by pressing from that of their previously-owned appliance, Familiarity with the CANCEL •... -
Page 17: Replacing The Oven Light
Pull the light bulb out and replace it with a special 10-watt halogen bulb rated for use in a self-cleaning oven. Use Dacor Part No. 86364 available from any authorized Dacor parts distributor or dealer. -
Page 18: Problem Solution Guide
Problem Solution Guide Unnecessary service calls may be expensive, frustrating and time-consuming. Before you call for service, please review the potential problems, possible causes and remedies shown below. Also, see the facing page for various oven failure codes that can be displayed on the control panel. - Page 19 IMPORTANT: If a failure code is displayed, the oven wilt beep continuously until the user presses the CANCEL • SECURE key. The oven will not heat after a failure code is displayed. Call a qualified appliance technician to repair the oven. Clock Display Touch pad is stuck in depressed position.
-
Page 20: Product Maintenance
COLUMBIA AND CANADA*: state to state. FULL ONE YEAR WARRANTY If your DACOR product fails to function within one year of the original date of purchase, due to a defect in material or workmanship, DACOR wilt remedy the defect without charge to you or subsequent users. - Page 23 NO POSTAGE NECESSARY IF MAILED IN THE UNITED STATES BUSINESS REPLY MAIL FIRST-CLASSMAIL PERMITNO.4507 DIAMONDBARCA POSTAGEWILL BE PAIDBYADDRESSEE DACOR INC. ATTN: WARRANTY PROCESSING DEPT 1440 BRIDGE GATE DR STE 200 PO BOX 6532 DIAMOND BAR CA 91765-9861 I1,1,,,,,111,,,I,I1,,,I,1,1,1,,I,,I,,11,,,,,111,,I,I...
-
Page 24: Warranty Information
Please visit www.Dacor.com to activate your warranty online. WARRANTYINFORMATION IMPORTANT: Yourwarrantywill not be activateduntilyou activateit onlineor returnthis form to Dacor.If you havepurchasedmore thanone Dacorproduct,pleasereturnall forms in oneenvelopeor activatethe warrantyfor eachproductonline. Pleaserestassuredthat underno conditionswill Dacorsell yournameor anyof the informationon this form for mailinglist purposes.We...
