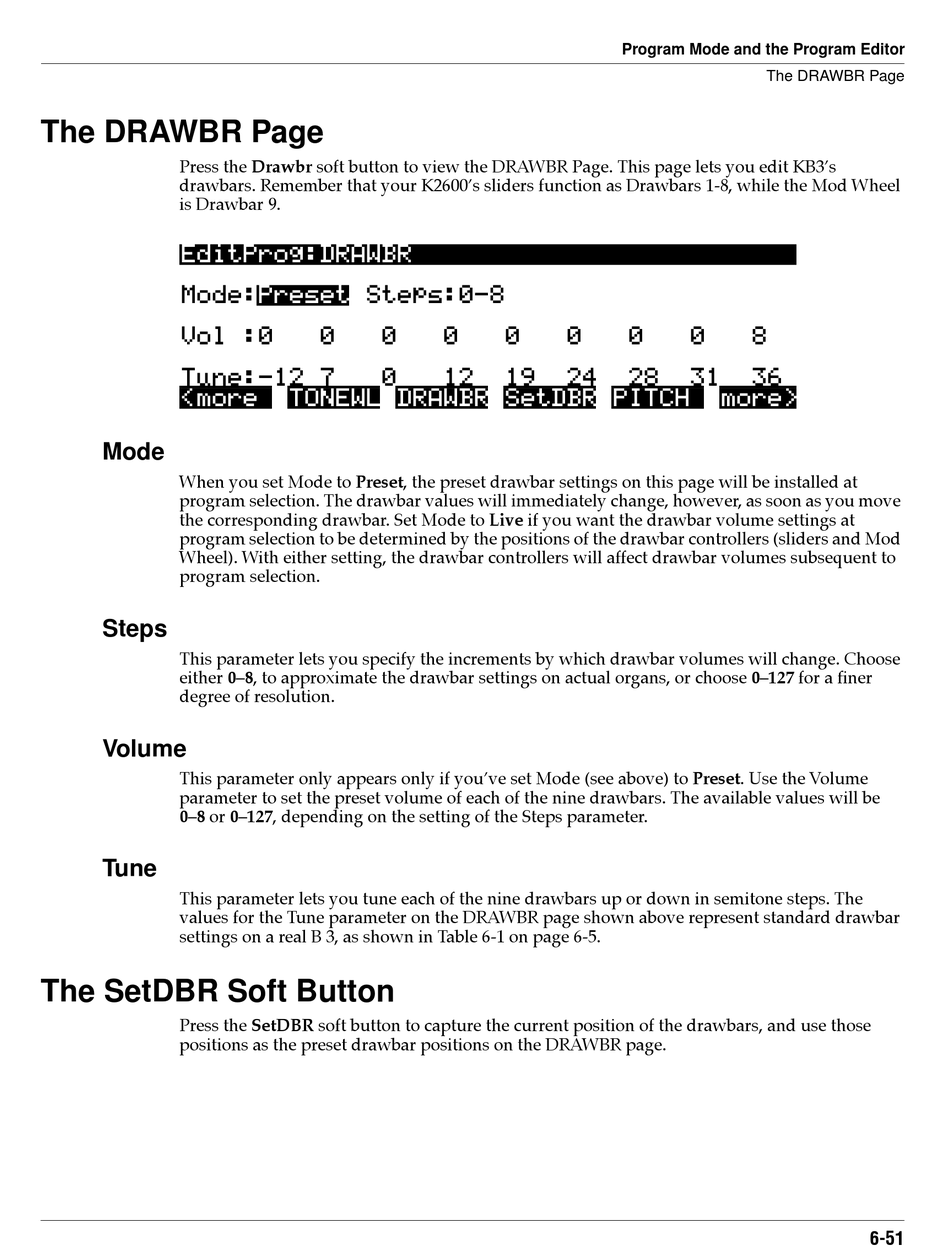

The DRAWBR Page
Press the Drawbr soft button to view the DRAWBR Page. This page lets you edit KB3Õs
drawbars. Remember that your K2600Õs sliders function as Drawbars 1-8, while the Mod Wheel
is Drawbar 9.
EditProg:DRAWBR|||||||||||||||||||||||||
||||||||||||||||||||||||||||||||||||||||
Mode:Preset|Steps:0-8|||||||||||||||||||
||||||||||||||||||||||||||||||||||||||||
Vol|:0|||0|||0|||0|||0|||0|||0|||0|||8||
||||||||||||||||||||||||||||||||||||||||
Tune:-12|7|||0|||12||19||24||28||31||36|
<more||TONEWL|DRAWBR|SetDBR|PITCH||more>
Mode
When you set Mode to Preset, the preset drawbar settings on this page will be installed at
program selection. The drawbar values will immediately change, however, as soon as you move
the corresponding drawbar. Set Mode to Live if you want the drawbar volume settings at
program selection to be determined by the positions of the drawbar controllers (sliders and Mod
Wheel). With either setting, the drawbar controllers will affect drawbar volumes subsequent to
program selection.
Steps
This parameter lets you specify the increments by which drawbar volumes will change. Choose
either 0Ð8, to approximate the drawbar settings on actual organs, or choose 0Ð127 for a Þner
degree of resolution.
Volume
This parameter only appears only if youÕve set Mode (see above) to Preset. Use the Volume
parameter to set the preset volume of each of the nine drawbars. The available values will be
0Ð8 or 0Ð127, depending on the setting of the Steps parameter.
Tune
This parameter lets you tune each of the nine drawbars up or down in semitone steps. The
values for the Tune parameter on the DRAWBR page shown above represent standard drawbar
settings on a real B 3, as shown in Table 6-1 on page 6-5.
The SetDBR Soft Button
Press the SetDBR soft button to capture the current position of the drawbars, and use those
positions as the preset drawbar positions on the DRAWBR page.
