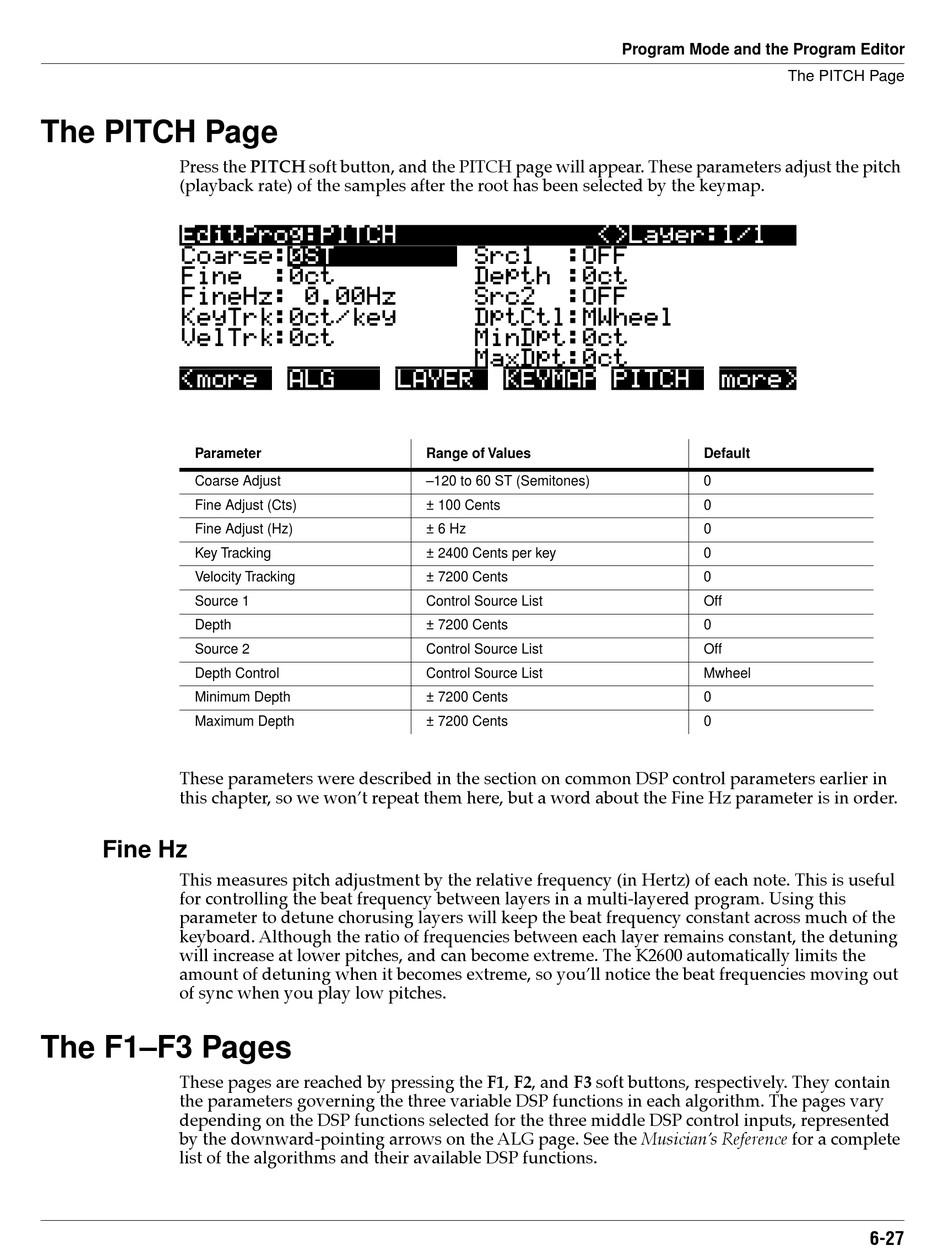

The PITCH Page
Press the PITCH soft button, and the PITCH page will appear. These parameters adjust the pitch
(playback rate) of the samples after the root has been selected by the keymap.
EditProg:PITCH|||||||||||||<>Layer:1/1||
Coarse:0ST|||||||||Src1||:OFF|||||||||||
Fine||:0ct|||||||||Depth|:0ct|||||||||||
FineHz:|0.00Hz|||||Src2||:OFF|||||||||||
KeyTrk:0ct/key|||||DptCtl:MWheel||||||||
VelTrk:0ct|||||||||MinDpt:0ct|||||||||||
|||||||||||||||||||MaxDpt:0ct|||||||||||
<more||ALG||||LAYER||KEYMAP|PITCH||more>
Parameter
Coarse Adjust
Fine Adjust (Cts)
Fine Adjust (Hz)
Key Tracking
Velocity Tracking
Source 1
Depth
Source 2
Depth Control
Minimum Depth
Maximum Depth
These parameters were described in the section on common DSP control parameters earlier in
this chapter, so we wonÕt repeat them here, but a word about the Fine Hz parameter is in order.
Fine Hz
This measures pitch adjustment by the relative frequency (in Hertz) of each note. This is useful
for controlling the beat frequency between layers in a multi-layered program. Using this
parameter to detune chorusing layers will keep the beat frequency constant across much of the
keyboard. Although the ratio of frequencies between each layer remains constant, the detuning
will increase at lower pitches, and can become extreme. The K2600 automatically limits the
amount of detuning when it becomes extreme, so youÕll notice the beat frequencies moving out
of sync when you play low pitches.
The F1–F3 Pages
These pages are reached by pressing the F1, F2, and F3 soft buttons, respectively. They contain
the parameters governing the three variable DSP functions in each algorithm. The pages vary
depending on the DSP functions selected for the three middle DSP control inputs, represented
by the downward-pointing arrows on the ALG page. See the MusicianÕs Reference for a complete
list of the algorithms and their available DSP functions.
Range of Values
–120 to 60 ST (Semitones)
± 100 Cents
± 6 Hz
± 2400 Cents per key
± 7200 Cents
Control Source List
± 7200 Cents
Control Source List
Control Source List
± 7200 Cents
± 7200 Cents
Program Mode and the Program Editor
The PITCH Page
Default
0
0
0
0
0
Off
0
Off
Mwheel
0
0
6-27
