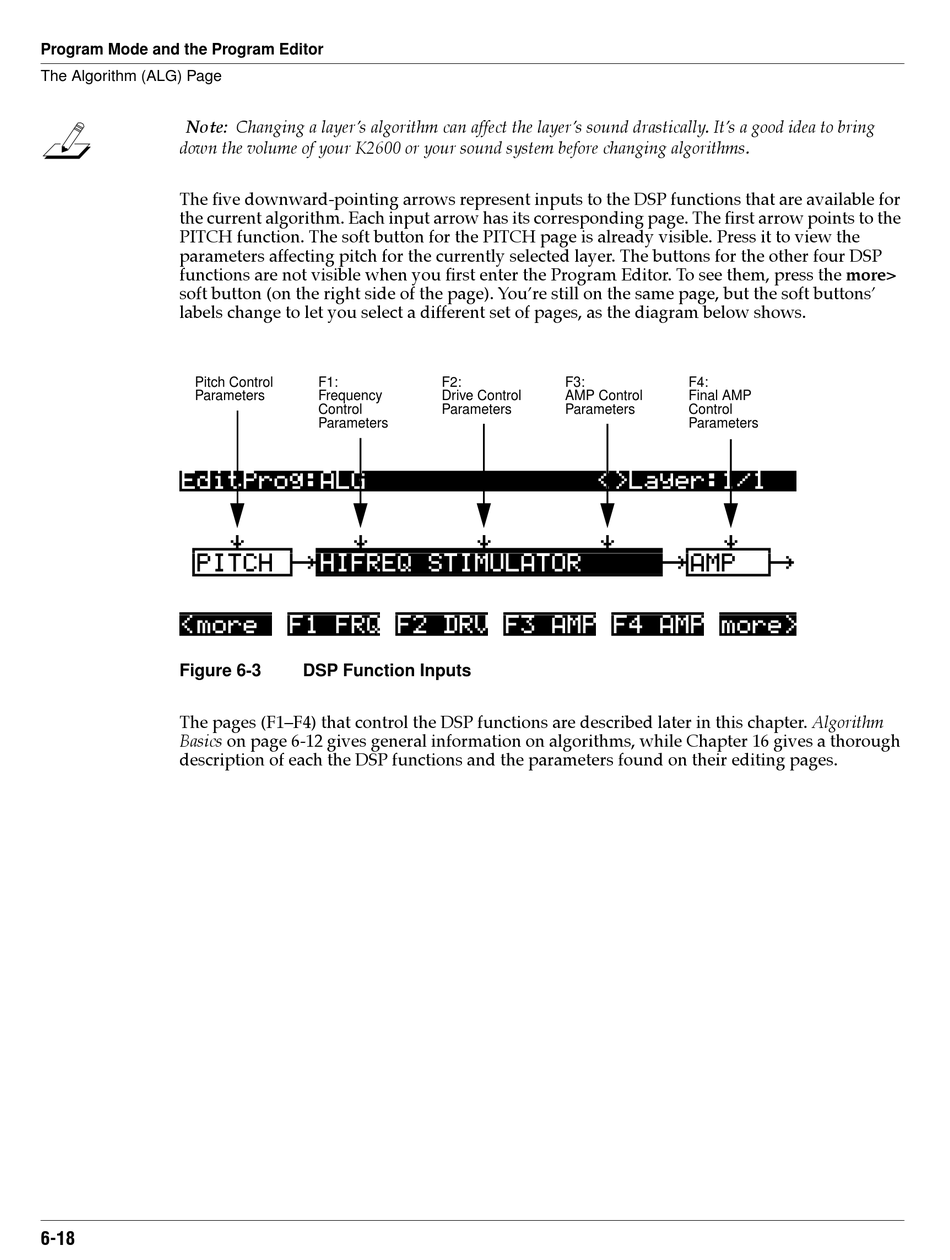

Kurzweil K2600 - MUSICIANS GUIDE REV A PART NUMBER 910330 CHAP 6 Manual page 18

Program Mode and the Program Editor
The Algorithm (ALG) Page
Note: Changing a layerÕs algorithm can affect the layerÕs sound drastically. ItÕs a good idea to bring
down the volume of your K2600 or your sound system before changing algorithms.
The Þve downward-pointing arrows represent inputs to the DSP functions that are available for
the current algorithm. Each input arrow has its corresponding page. The Þrst arrow points to the
PITCH function. The soft button for the PITCH page is already visible. Press it to view the
parameters affecting pitch for the currently selected layer. The buttons for the other four DSP
functions are not visible when you Þrst enter the Program Editor. To see them, press the more>
soft button (on the right side of the page). YouÕre still on the same page, but the soft buttonsÕ
labels change to let you select a different set of pages, as the diagram below shows.
Pitch Control
Parameters
EditProg:ALG|||||||||||||||<>Layer:1/1||
||||||||||||||||||||||||||||||||||||||||
||||||||||||||||||||||||||||||||||||||||
errR®rrte11231111112311111123114errR®rt|
dPITCH|gkHIFREQ|STIMULATOR|||||0kAMP||gh
CVVVVVVBCVVVVVVVVVVVVVVVVVVVVVVBCVVVVVB|
||||||||||||||||||||||||||||||||||||||||
<more||F1|FRQ|F2|DRV|F3|AMP|F4|AMP|more>
Figure 6-3
The pages (F1ÐF4) that control the DSP functions are described later in this chapter. Algorithm
Basics on page 6-12 gives general information on algorithms, while Chapter 16 gives a thorough
description of each the DSP functions and the parameters found on their editing pages.
6-18
F1: F2:
Frequency Drive Control
Control Parameters
Parameters
DSP Function Inputs
F3: F4:
AMP Control Final AMP
Parameters Control
Parameters
