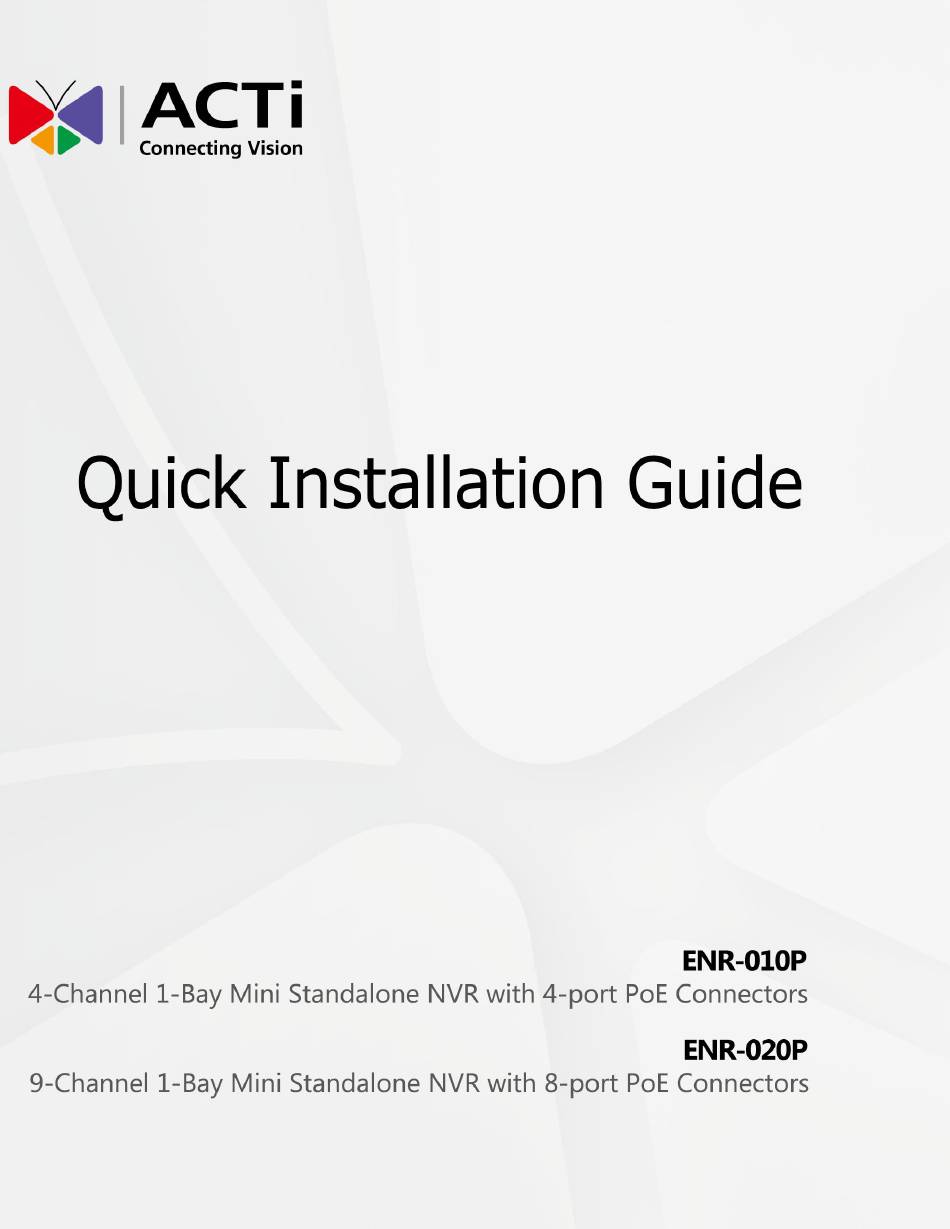

- Page 1 ACTi Connecting Vision Quick Installation Guide ENR-OIOP 4-Channel I-Bay Mini Standalone NVR with 4-port POEConnectors ENR-020P 9-Channel I-Bay Mini Standalone NVR with 8-port POEConnectors...
- Page 2 BEFORE START Thank you for purchasing ACTi ENR Standalone Network Video Recorder. This guide contains all the information you need to quickly set up ACTi ENR server system via local interface. For detailed instructions on installation, operation and how to log in to ENR as a web client, please refer to the product manuals provided on ACTi corporate website.
- Page 3 HARD DISK INSTALLATION Follow the procedures below to install the hard disk before powering on this unit. Step 1 Loosen the five screws tha fix the chassis (one on both the left and the right sides and three on the rear side) and remove the chassis cover. Step 2 Align the hard disk to the four holes on the bottom of the unit, and secure the disk with the provided disk screws.
- Page 4 Source Total POEPower Budget ENR-OIOP: ENR-020P: 140W HDMI Monitor Network Max. 15.4W per port USB Devices ACTi Cameras Remote Client and Video Source 1. Connect HDMI monitor. 2. Connect USB devices. 3. Plug the power adapter into ENR and the electricity outlet.
- Page 5 Live View screen. LAN 192.168.0.10 0 WAN 172.16.26.15 Technical Support If you have any question during system installation, please feel free to contact our engineers via: • Customer Help Desk platform: http://www.acti.com/CHD US/Canada toll-free number: 1-866-410-2284 (ACTi)
- Page 6 Playback sreen. On the time bar, drag current-time ACTi indicator to your desired position, and click on Playback control panel to play. •To export video, select the channel and then click on Playback Control Panel \2015.12.17...
