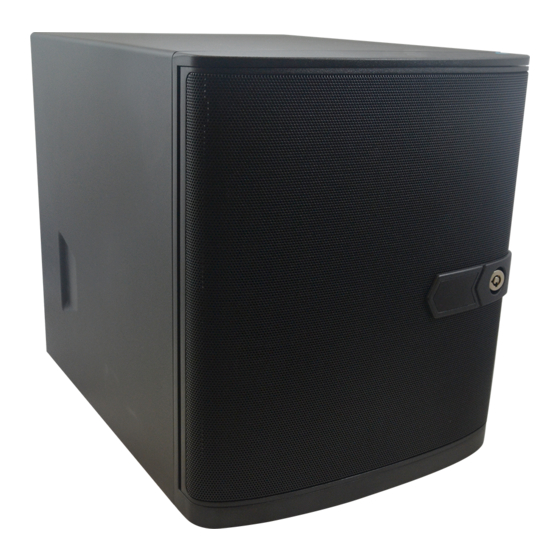

- Page 1 Quick Installation Guide ENR-320P 16-Channel 4-Bay Tower Standalone NVR with 16-port PoE connectors ENR-321P 32-Channel 4-Bay Tower Standalone NVR with 16-port PoE connectors...
-
Page 2: Before You Start
BEFORE YOU START Thank you for purchasing ACTi ENR Standalone Network Video Recorder. This guide contains all the information you need to quickly set up the device via local display interface. For detailed instructions on installation and operation, please search for the product manuals on http://www.acti.com/downloadcenter. -
Page 3: Front Panel
AT A GLANCE FRONT PANEL BACK PANEL Hard Disk Bay Digital Input / Output LAN Port LED Indicators USB 3.0 Port Power Button USB 2.0 Ports (2) WAN Port Reset Button PoE Ports (16) HDMI Port Main Switch Audio Input / Output Power Input Connector Quick Installation Guide... -
Page 4: Install Hard Disk Drive
INSTALL HARD DISK DRIVE Step 1 Step 2 Using the bundled keys, unlock the front Still using the bundled keys, cover panel. unlock a hard disk (HDD) bay. Step 3 Step 4 Push the lock towards the right to eject Pull out the HDD bay. - Page 5 CONNECTIONS The example below displays a network with ENR and basic required peripherals to start using the device. ENR automatically assigns IP addresses to cameras via LAN. Network Cameras 192.168.0.101 192.168.0.102 192.168.0.103 192.168.0.104 192.168.0.116 Power Source Default IP Address 192.168.0.10 LAN : WAN: DHCP assigned...
- Page 6 LOGIN On the Login screen, using the on-screen keyboard, type the Account and Password. Account: admin Password: 123456 “123456” is the default password of the administrator’s user account. For security reasons, please remember to change it. Enter Numeric Keypad The User Interface Device List Live View Events List Full Screen...
-
Page 7: Format The Hdd
FORMAT THE HDD 1. Click the System Setup icon on the Live View screen. 2. Click the Storage > Management page. 3. Select the hard disk to format, then click Format. 4. Repeat the above steps to format the other disk, and then click OK. ADD DEVICES 1. - Page 8 Add Camera Manually If you are adding cameras located in another network, click Add Camera Manually. Fill in the IP address, HTTP Port, Account and Password. Then click Add. Or, use the RTSP page for RTP protocol. CHECK LIVE VIEW After adding the cameras, the models are listed on the left panel of the Live View screen.
-
Page 9: Manage Devices
MANAGE DEVICES Managing the devices can be done from the Live View screen. Right-click on the device model from the left panel, then click to: • Rename the device name on the list • Delete the device from the list • Setup the camera settings (see below) Camera Settings From the Camera Settings screen, click the corresponding page tab to configure... - Page 10 CHECK RECORDINGS On the Live View screen, click the Playback icon on the bottom right corner to enter the Playback screen. On the time bar, drag the current-time indicator to your desired position, and then click the Playback icon. Quick Installation Guide...
-
Page 11: System Setup
This product is under warranty Download the latest documentation, from the date of the original purchase which shall prevail over the printed version provided in the package, (“Warranty Period”). http://www.acti.com/ from downloadcenter. For more information, please visit our website http://www.acti.com/warranty...
