Summary of Contents for ACTi ENR-1000

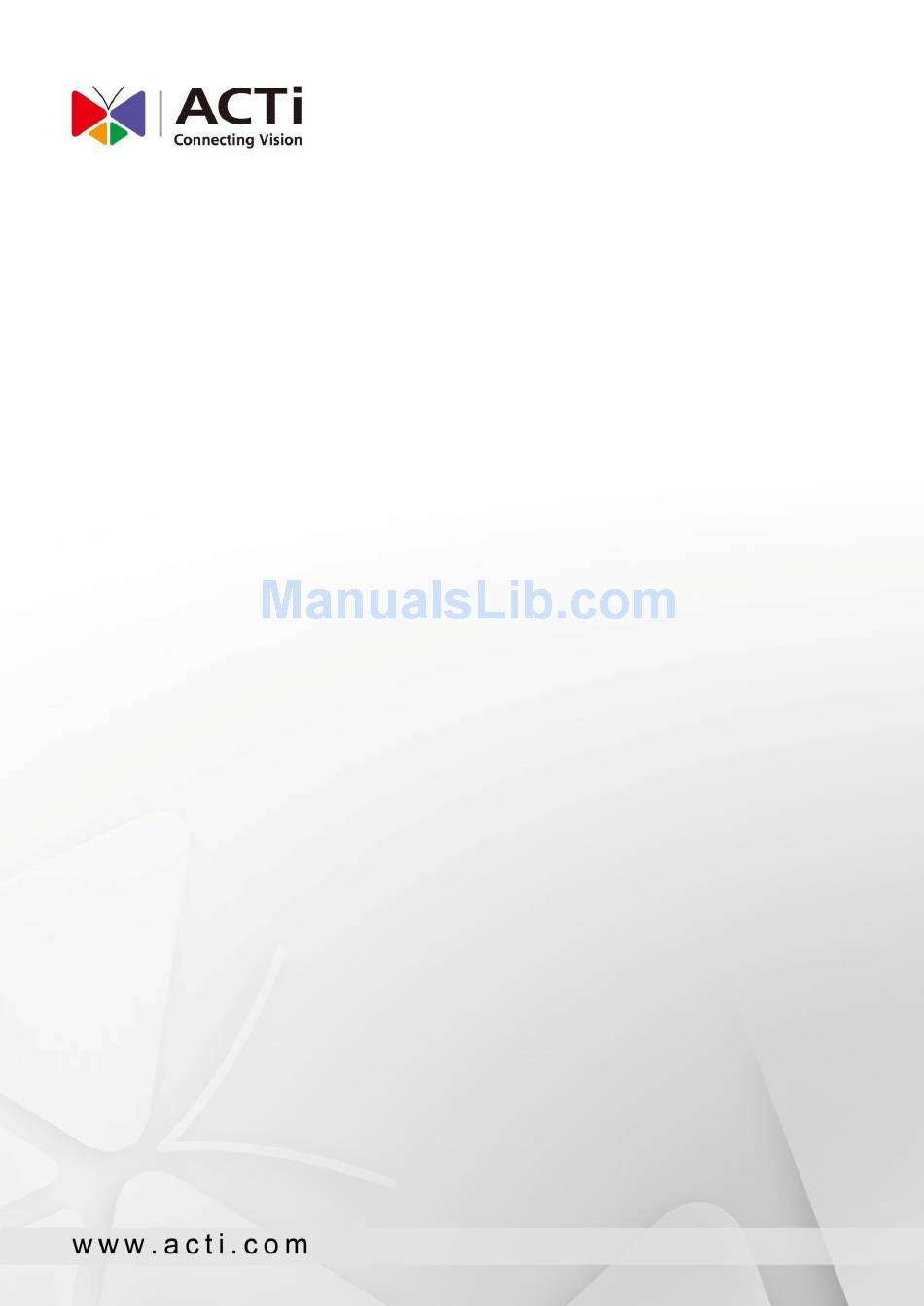

- Page 1 ENR-1000 Series User’s Manual For V4.00.02 Firmware 2014/01/28...
-
Page 2: Legal Notice
Disclaimer The information contained in this document is intended for general information purposes. ACTi Corporation shall not be liable for errors contained herein or for incidental or consequential damages arising from the furnishing, performance, or use of this manual. -
Page 3: Regulatory Compliance Information
ENR-1000 Series User’s Manual Regulatory Compliance Information Federal Communications Commission Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 4: About This Manual
Technical Support If you have any questions during system installation, please feel free to contact our engineers via our Customer Help Desk platform http://www.acti.com/CHD. Remarks 1. The screenshots appearing in this manual are taken from local display UI. 2. Differences in web client and local display UI should be expected but all functions are the same. -
Page 5: Table Of Contents
ENR-1000 Series User’s Manual Table of Contents 1 Legal Notice Disclaimer ..................... 2 Copyright ..................... 2 Trademarks .................... 2 Regulatory Compliance Information ............ 3 2 About This Manual Target Audience ..................4 Technical Support .................. 4 3 Table of Contents 4 Introduction Product Overview .................. - Page 6 ENR-1000 Series User’s Manual 5 Local Client Operation Login & Logout ................... 16 System Overview ................. 17 Main Screen Introduction ............17 Input Devices ................18 Onscreen Keyboard Onscreen Keyboard Settings Mouse Settings Monitoring ..................20 Live Screen Overview ..............20 Single Channel Operations ............
- Page 7 ENR-1000 Series User’s Manual 7 System Log Search Log ................. 34 Export Log .................. 35 www.acti.com...
-
Page 8: Introduction

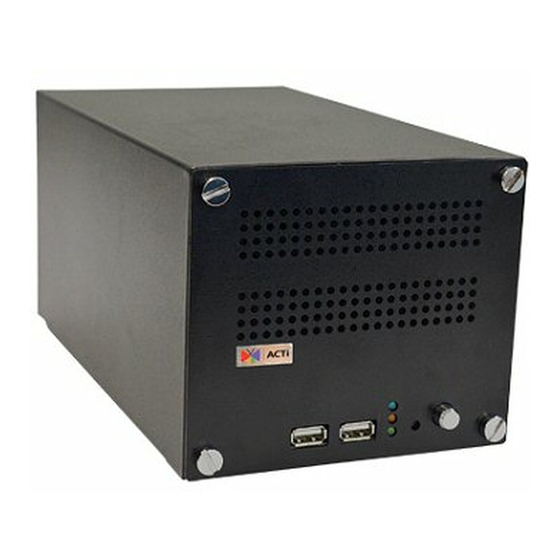

Introduction Product Overview ACTi ENR-1000 Series (hereafter referred to as ENR) is a compact and reliable multi-channel standalone NVR. It features a stable embedded Linux operating system and capabilities of supporting mega-pixel resolution H.264 streaming, an HDMI output for local display, PTZ control, scheduled / event-triggered / event speed-up recording, event management, synchronized playback, time / event-based playback search and video bookmarks. - Page 9 ENR-1000 Series User’s Manual www.acti.com...
-
Page 10: Display Video Performance
ENR-1000 Series User’s Manual Display Video Performance On a Live or Playback screen, ENR handles displayed video differently based on the combination of the following factors, which you should put into consideration when configuring your view layout: of your current layout (1) The number of channels format of video stream, e.g. -
Page 11: Remote Live View
ENR-1000 Series User’s Manual Remote Live View Aside from user’s behaviors, the hardware specifications of each remote client computer will affect the Live View display quality. ENR system will observe the outcome of all the variables (such as dynamic CPU loading) to make adaptations. -
Page 12: Supported Video Format
ENR-1000 Series User’s Manual Supported Video Format As 1080p HDMI monitors have become the most extensive products used in various applications, ENR is designed to conform to this display standard with its capability of outputting 1080p video stream. Therefore, to reserve as much computing power for ENR unit as possible, only up to two-megapixel H.264 video stream can be displayed on local Live... -
Page 13: At A Glance
ENR-1000 Series User’s Manual At A Glance Front Panel Power Button USB 2.0 Ports LED Indicators Reset Button Rear Panel LAN 2 HDMI Output Power Connector LAN 1 www.acti.com... -
Page 14: Power Button & Reset Button
ENR-1000 Series User’s Manual Power Button & Reset Button You can turn on/turn off the device with Power Button; with Reset Button, you may restore the device to factory default settings. Turn On the Device Press down the Power Button and release, the Power LED will light up and turn solid blue. -
Page 15: Reset To Factory Default
ENR-1000 Series User’s Manual Reset to Factory Default By resetting this device, all your system settings and system log will return to factory default. It is strongly recommended that you back up previous settings with Backup function and export the system logs before resetting to factory default. -
Page 16: Local Client Operation
ENR-1000 Series User’s Manual Local Client Operation Login & Logout To log into ENR system for the first time, you will have to key in the account name and password in Login window. Please contact your system administrator for account and password information. -
Page 17: System Overview
ENR-1000 Series User’s Manual System Overview Main Screen Introduction ENR system has two main screens: Live screen ● After logging in, you will enter Live screen. Live screen is the interface where you see the live views from your cameras. It is where most of the security professionals access the surveillance system. -
Page 18: Input Devices
ENR-1000 Series User’s Manual Input Devices IN ENR system, a USB mouse is the required input device to do all the operations on user interface. All the input devices, including USB mouse and USB keyboard are ready to use when you connect them to ENR via USB 2.0 ports. You may adjust the mouse’s cursor speed via the path below: On Live screen, click Setup ... -
Page 19: Onscreen Keyboard Settings
ENR-1000 Series User’s Manual Onscreen Keyboard Settings To disable the virtual keyboard if a physical one is already in use, on Live screen, click Setup System tab click “Keyboard”. Uncheck the box “Always shows software keyboard”. Mouse Settings You may adjust the mouse’s cursor speed via the path below:... -
Page 20: Monitoring
ENR-1000 Series User’s Manual Monitoring You can perform most live monitoring tasks on Live screen. ENR may display all live channels on the screen, or 1x1 single channel in succession automatically. Aside from keeping an eye on the video, you may also take snapshots, control PTZ cameras, start or stop manual recording on a selected channel. -
Page 21: Single Channel Operations
ENR-1000 Series User’s Manual Single Channel Operations By selecting a specific channel on Live screen, you may perform functions below on a single channel view: Take a snapshot of this single channel ● Start manual recording of this single channel ●... -
Page 22: Digital Ptz Operations
ENR-1000 Series User’s Manual Digital PTZ Operations Double-click a channel to display it in 1x1 layout, and then click on it again to reveal Single Channel Menu. On Single Channel Menu, click to enable digital PTZ controls. Note To take a snapshot of a layout containing more channels, select the desired layout and click on Live View menu. -
Page 23: Optical Ptz Operations
ENR-1000 Series User’s Manual Optical PTZ Operations By selecting a camera with panning / tilting / zooming capabilities, all onscreen buttons on PTZ Panel will become enabled. www.acti.com... -
Page 24: Layout Patrol
ENR-1000 Series User’s Manual Layout Patrol By performing the Patrol function, all the four channels can be displayed by 1x1 layout in turns. 1. On Live View menu, click to swtich to 1x1 layout. 2. Click 3. On Patrol Time Setting window, input the patrol interval (the maximum value is 999 seconds), and the click “OK”. - Page 25 ENR-1000 Series User’s Manual 1. Entrance Description Camera Name Digital Input Motion Alert This will flash along with the channel outline border when the digital input device detects motion on camera site. Video Motion Alert This will flash along with the channel outline border when the camera detects video motions on camera site.
-
Page 26: Playback
ENR-1000 Series User’s Manual Playback Playback is the service that processes recorded video clips. You may search by time. by event or the bookmarks you have set. Playback may include up to 4 channels synchronized playback. Video clips may also be exported in either RAW or AVI formats. -
Page 27: Event Search
ENR-1000 Series User’s Manual Click Month or Year to choose exact value Previous Next month month Recording exists No recording exists 2. As the date has been selected, choose the hour from the 24-hour time bar. The color represents the event type of the recording. -
Page 28: Bookmark Search
ENR-1000 Series User’s Manual 1. Select Event Search tab, and define the start time and a search duration (In the example below, ENR will search recording from 2013/01/23 04:00 to 08:00.) the Cameras and Event Type. 2. Click “Search”. 3. On search result list, select an entry. -
Page 29: Playback Recordings
ENR-1000 Series User’s Manual Playback Recordings ENR will start playing back the video after you click “Play” on Playback Search window. Current Playback Time Current Play Speed www.acti.com... -
Page 30: Playback Menu
ENR-1000 Series User’s Manual Playback Menu On Playback screen, right-click anywhere on screen to bring up the Playback Menu. Description Layout Styles Provided layout styles are 1x1 / 2x2 screen Single Channel Switch Playback Controls Reverse Play Pause Play Increase Play Speed... -
Page 31: Change Play Speed
ENR-1000 Series User’s Manual Change play speed Increase the play speed by clicking , and decrease the speed by clicking The provided speed rates are ½ x, 1x, 2x, 4x, 8x, 16x and 32x. The current play speed will be... -
Page 32: Take A Snapshot
ENR-1000 Series User’s Manual Take a Snapshot On Playback menu, click ,the image of current screen will be saved as jpg format (at 720x480 resolution) onto the USB mass storage. Please make sure the USB mass storage has already been connected to ENR device. -
Page 33: Set Video Bookmark
ENR-1000 Series User’s Manual 1. Select a channel and click 2. Select the Export Duration and Export Type. 3. Click “Start” The exported video will be saved onto the USB mass storage. Please make sure the USB mass storage has already been connected to ENR device and the available storage space is enough. -
Page 34: System Log
ENR-1000 Series User’s Manual System Log The activities performed by logged-in Users are recorded on server as System Log. With the access permission to Setup (for how to change the user group permissions, please refer to the User Group section in ENR1000_System_Administrator_Manual), a user may view, search and export this record for analysis or investigation. - Page 35 ENR-1000 Series User’s Manual Export Log You may export the system log of selected time period as .txt file onto the USB storage disk by clicking “Export”. www.acti.com...
