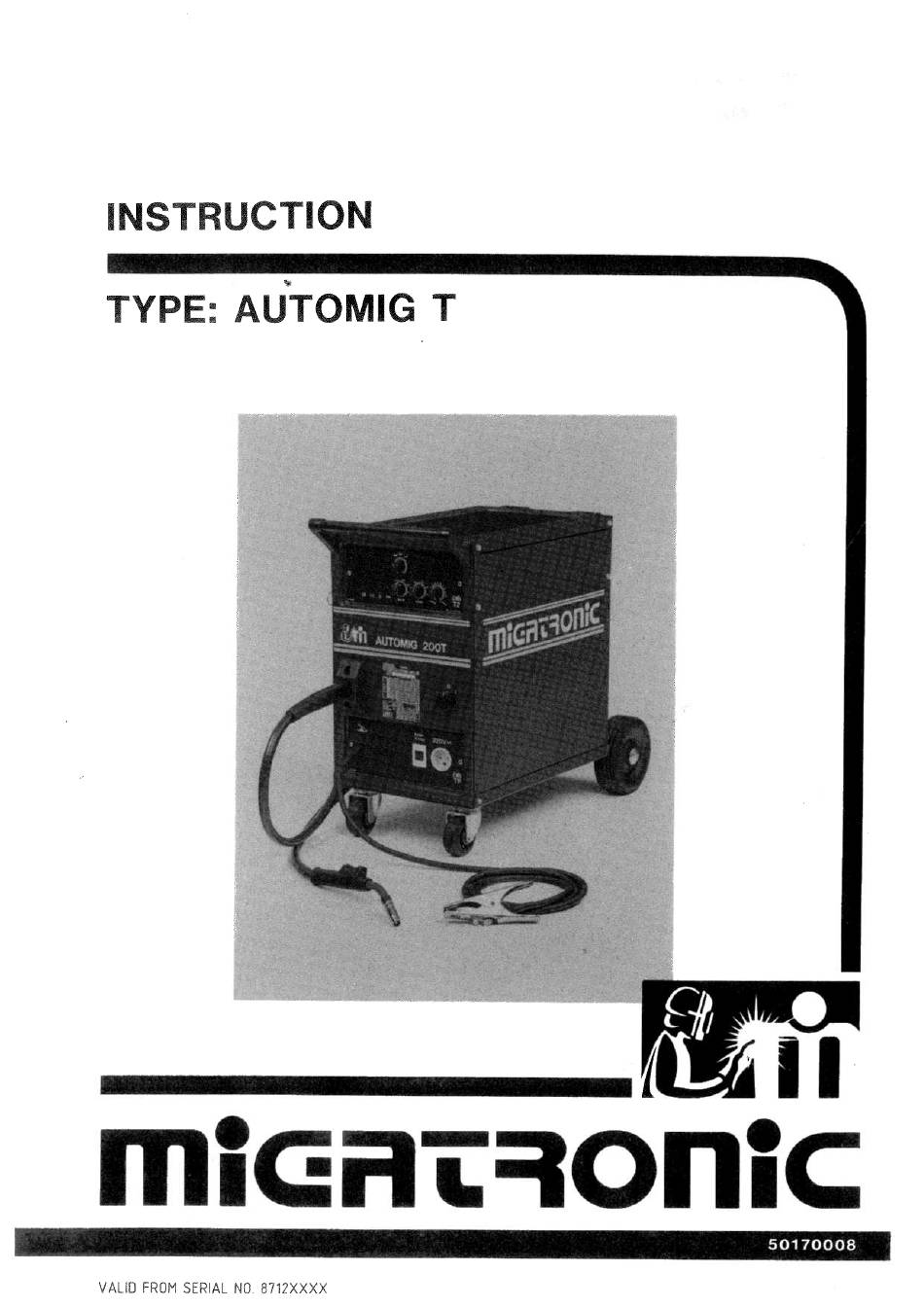

- Page 1 INSTRUCTION TYPE: AUTOMIG AUTOMYG 200T 50170008 VALID FROM SERIAL NO. 8712XXXX...
- Page 2 LIST OF CONTENTS PAGE INTRODUCTION GENERAL DESCRIPTION FEATURES MACHINE DESCRIPTION FUNCTIONAL DESCRIPTION INITIAL OPERATION MAINS CONNECTION • FITTING WELDING HOSE CONNECTING SHIELDING INSERTION OF WELDING WIRE CONTROL SWITCHES/INSTRUCTIONS FOR USE ELECTRONIC BOXES BOTTOM BOXES 3—7 WELDING WITH THE AUTOMIG WELDING TECHNIQUE ADJUSTING MACHINE THE IMPORTANCE...
- Page 3 INTRODUCTION "Reputation implies obligation". That goes for MIGATRONIC and it also goes for your own products. It is MIGATRONICs longstanding experience in welding machine design and pro- duction that is at the heart of your welding set and which, together...
- Page 4 We shouldlike to highlight the following features, which makethe Automig T welding machine a consider9ble improvement over any previous machines. Good strike: Before striking an arc, the thyristors are set in such a way that the initial voltage is higher than normal - as a result of which the arc strikes more easily when the wire touches the workpiece.
- Page 5 Minimum spatter: The Automig T's power source and regulating system are designed to produce a minimum of welding spatter. That cuts out any unnecessary grinding work and means the welding torch needs less frequent cleaning. Power Take-Off (PTO) for electrical...
- Page 6 spatter. When the switch on the torch is depressed, the thyristors come on. The rectifier emits a DC voltage - which is determined by the remote control in the welding trigger and the gas/wire matching switch (pos. 5) on the box. Simultaneously, shielding gas is turned on and the wire-feed motor started up at a speed also determined by remote regulation from the torch.
- Page 7 INITIAL OPERATION Mains connection: Check that the machine voltage on the type-plate conforms with the mains voltage on the site. If the machine is dual voltage or more, be sure to check that the machine is correctly set. The mono machine is designed for connection to single-phase 220-240 V (Ph. + Zero + Earth)/ 25 amps.
- Page 8 chains. Fit the reducing valve onto the cylinder. If the valve is equipped with a flowmeter, set the gas volume to 5 - 15 litres per minute. The gas is autornatically connected to the hose when this is mounted in the wire-feed device.
- Page 9 AUTOMiG 200T 16 Rosette 15 Switch 17. Hose protection 12. Grommet 13 PTO for electric tool 14 Automatic fuse FIG 1 18 Swan neck 31 Remote control 30 Swifth...
- Page 10 1 1 Wire inching switch 10 Burn back time 26 Pressure lever 27 Tensioning bolt 16 Rosette Inlet nozzle 25 Retaining clip- 21. Allen screw Wire feed roller ining clip et nozzle FIG. 3 3 . Friction brake FIG 1+...
- Page 11 CONTROL SWITCHES / INSTRUCTIONS FOR USE Electronic boxes: The entire electronics for the Automig T Series are built into a sealed, easy-to- replace control box. Warning: Repairs/maintenance must only be carried out when the machine is switched off. By loosening...
- Page 12 BOXTYPE: FUNCTIONS: Single-switch operation 2-cycle, tacking 4-cycle, latching Spot welding Stitch welding Gas/wire matching switch High strike voltage Crawl start Wire inching switch Burn back control Welding voltage short-circuit cut-out Bottom Feed-through grolnmet for earth cable Mains plug for optional extras Automatic fuse for mains plug...
- Page 13 ADJUSTMENT FUNCTION BOXES FIG 5 10. Burn back time ON indicator 5. Gas/ Wire matching switc 11.Wire inching switch 1 Overload indicator 8 Function selector 7 Pause time 6 Welding time 2 Gas valve indicator 3 Thyristor indicator 9 Function selector...
- Page 14 OPERATING INSTRUCTION BOXES Pos. Overload indicator The red lamp lights if the automatic thermal fuse on the machine has been cut out due to overloading. The thermostatically-controlled fan continues to run until thc machine has cooled down to normal operating temperature again, at which point the red lamp goes off and the machine is once again ready for use.
- Page 15 Seam: The machine welds when the torch switch is actuated and stops when the switch is released. Spot: When the torch switch is actuated the machine welds automatically, controlled by the "welding-time timer" (pos. 6). The time is adjustable from 0.2 to 2.5 secs, and when the set time runs out, welding stops.
- Page 16 This switch is usedwhena new reel of welding wire is put into the machine and the wire fed through the hose. The Automig T is equipped with crawl start, i.e. the wire is fed at a gentle speed when there is no arc - use the...
- Page 17 13 PTO electric tools At the present time two types of bottom box are available for the Automig t, i.e. TS TS - bottom box: This is the simple version, in which the only grommet (pos. 12) is for the cable to the...
- Page 18 WELDING WITH AUTOMIG Set the interruptor switch (pos. 15) on the machine to The "ON" LED (pos. 4) rnust light up and the LED (pos. 32) in the torch must also come on. Connect the machine to shielding gas and insert a reel of welding wire - if necessary, consult toe section on initial operation.
- Page 19 WELDING TECHNIQUE Adjusting the machine Adjusting a MIG/MAG welding machine requires a fair amount of experience on part of the welder, as in principle there are two parameter settings which must match each other, that is: wire speed and welding voltage. It is important, therefore that...
- Page 20 The table below, together with the drawings, may be of assistance when it is necessary to evaluate the importance of the individual factors for the welding quality and welding procedure. The terms draw welding and thrust welding should be understood thus: Torcheinted awayfrom directionof travel.
- Page 21 MAINTENANCE The following points demand special attention: Wire-feed unit. This unit must be checked regularly at the wire feed roller (pos. 29) and wire nozzles (pos. 24 and pos. 22), since it is of great importance for good welding and minimum wear that the wire...
- Page 22 The following inner liners are recommended in accordance with the table below: INTERNAL DIAMETER, INNER LINER WIRE DIAMETER, STEEL-WIRE ø o,8-ø TABLE INTERNAL DIAMETER, INNER LINER WIRE DIAMETER, ALUM. WIRE (teflon) TABLE Power source: Rectifier and transformer should be blasted clean of dust at suitable intervals, since...
- Page 23 TROUBLE SHOOTING If the machine fails to weld correctly, there are, in principle, two possible sources of error, namely wire feeding and power source. In the vast majority of cases, the error is to be found in irregular wire feeding. Try, where possible, pushing and pulling the welding wire out at the contact nozzle.
- Page 24 The arc does not look normal, and there This occurs material dirty or treated is a lot of spatter. with underseal paint. The wire keeps sticking in the contact wire be malformed. tip and is very slow. The damaged wire should be cut off, pulled out and replaced.
- Page 25 TECHNICAL DATA POWER SOURCE: 3 x 415 1 x 240 Mains voltage 50-60 Hz* 25 A Mains fuse Consumption max. 0,82 0,77 Efficiency 0,72 0,81 Cos.phi Open circuit voltage DC (fixed) : 25 v 25 v 90 A 80 A Permitted load 100% duty cycle: Permitted...
- Page 26 MIGATRONIC WELDING EQUIPMENT 3, Jubilee Drive, Loughborough Leicestershire, LEII Telephone (0509) 267499. Telex 341660 MIG GB MIGATRONIC SCHWEISSMASCHINEN GmbH Postfach 110845, Am Umenfeld D-6300 Giessen-Wieseck Telefon (0641) 5906. Telex 4821776 mig d MIGATRONIC EQUIPMENT de SOUDURE S.A.R.L. PARC d'Act1vités u.l.s.
