urmet domus 1099/204 User Manual

urmet domus 1099/204 User Manual

1080p day & night starlight ip micro camera fixed optics 3.3mm, pir sensor 3.7mm ip camera
Hide thumbs

Advertisement

Quick Links

Download this manual
Mod.
1093
DS1093-608
1080P DAY & NIGHT STARLIGHT IP MICRO CAMERA
FIXED OPTICS 3.3MM
Ref. 1093/143M2
PIR Sensor 3.7mm IP Camera
Ref. 1099/204
USER MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the 1099/204 and is the answer not in the manual?

Questions and answers

Related Manuals for urmet domus 1099/204

Summary of Contents for urmet domus 1099/204

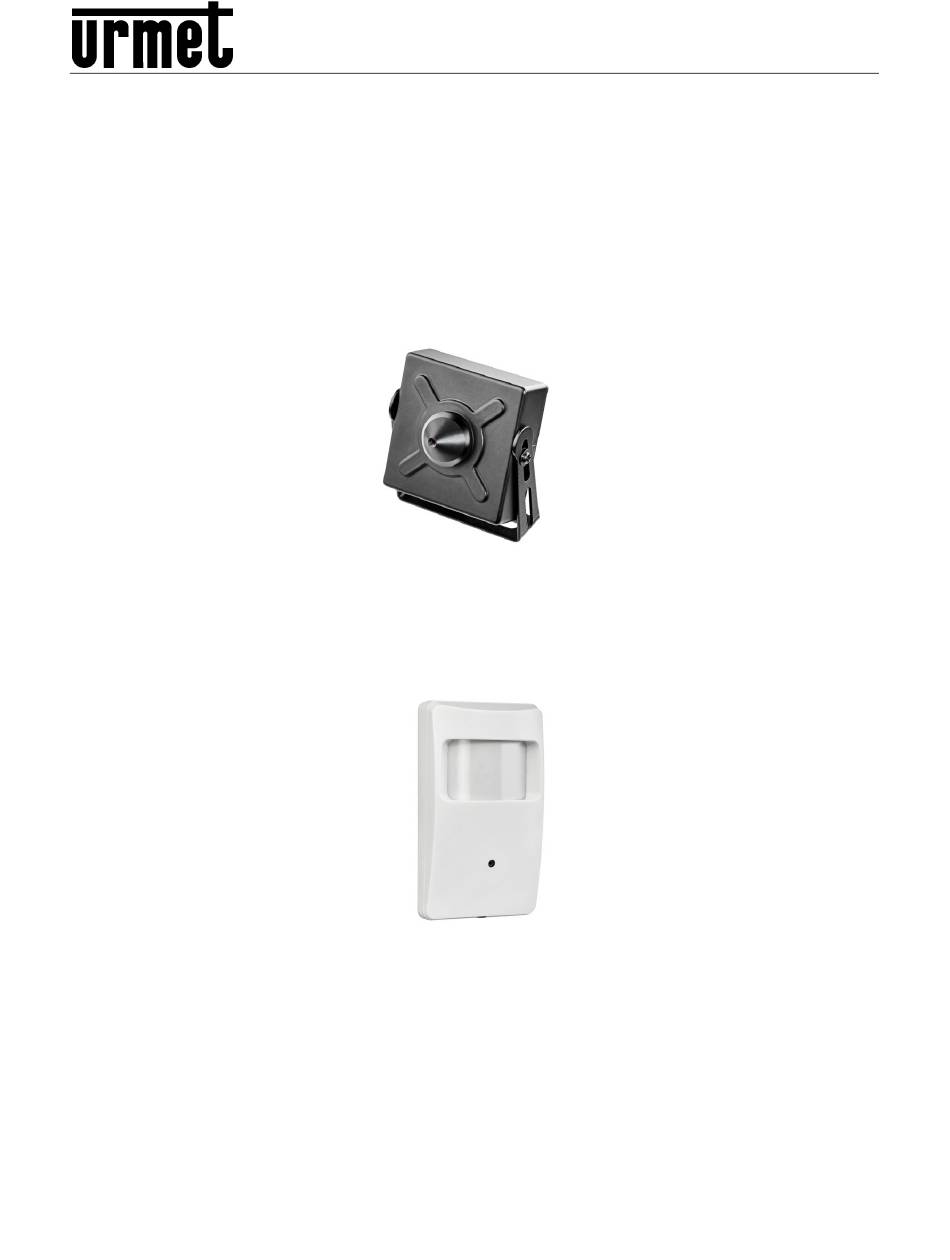

  • Page 1 Mod. 1093 DS1093-608 1080P DAY & NIGHT STARLIGHT IP MICRO CAMERA FIXED OPTICS 3.3MM Ref. 1093/143M2 PIR Sensor 3.7mm IP Camera Ref. 1099/204 USER MANUAL...
  • Page 2 ENGLISH CONTENTS CONTENTS ................................2 INTRODUCTION ..............................3 PRODUCT TECHNICAL FEATURES ......................3 Technical specifications ....................... 3 Opening the package ........................3 Warnings ............................4 INSTALLATION ............................. 5 ADDING TLC TO NETWORK ........................5 Configuration on wired network ....................5 EASYTOOL ..............................
  • Page 3 Care if you encounter problems during operations. The manual will be regularly updated without prior notice. PRODUCT TECHNICAL FEATURES URMET devices Ref. 1093/143M2 and Ref. 1099/204 are IP cameras which may be controlled entirely by connecting to the TCP/IP network.
  • Page 4 WARNINGS Power Make sure that the rating plate data corresponds to the power specifications before connecting the device to the mains. Arrange a suitable circuit breaker and fuse upstream of the devices. Disconnect power by means of the circuit breaker in the event of a failure and/or bad operation. The power unit is provided with the device.
  • Page 5 Privacy and Copyright The IP camera is a CCTV system device. Recording of imagines is subject to the laws in force in your country. Recording of images protected by copyright is forbidden. Product users shall be responsible for checking and respecting all local rules and regulations concerning monitoring and recording video signals.
  • Page 6 EASYTOOL The software is capable of detecting the IP address of the IP camera in the LAN network. Firstly, unzip the easytool.zip file contained on the CD included. Install and run EasyTool.exe. Start “Easy Tool” by selecting : the IP Address, Subnet Mask, Gateway and MAC Address will be automatically shown for each IP camera, as shown in the following figure.
  • Page 7 ACTIVEX CONTROL CONFIGURATION You will need to install the plug-ins when inspecting the IP camera using Internet Explorer for the first time. To install the plug-in, the browser protection level must be set. Select the “Tools/Internet Options/Security/Custom Level” menu and “ActiveX controls and plug-ins”...
  • Page 8 CONNECTION FROM OTHER WEB BROWSERS The camera web page can be accessed using a browser other than Internet Explorer, simply by keying in the IP address of the camera on the navigation bar of the browser. In this case, no additional components need to be installed and the displayed stream live consists in a fixed resolution MJPEG video stream (352x288) for which selecting Main/Sub/Mobile is not effective on the login home page.
  • Page 9 Other Live interface buttons (on Internet Explorer with ActiveX only): : This can be used to access the device setup menu to set the various customised parameters; : Snapshot, file type, saving path etc.; : Close and go back to the login page; : Control button preview.
  • Page 10 IMAGE CONTROL Click on 【Display】→【Image Control】 to access the following interface. IRCUT Mode: 4 modes: GPIO Mode, Video Mode, Color Mode and Black & White Mode. IR-CUT Delay: This is the IRcut delay time. Image setting: This is used to adjust brightness, saturation, hue. BLC (Back light compensation): This is used to Enable/Disable backlight compensation.
  • Page 11 3) PRIVACY ZONE Click on 【Display】→【Privacy Zone】 to access the following interface. Privacy zone setting: 1. Click to enable the privacy zone. 2. Select the Privacy area to be activated from the available four (Window 1, Window 2, Window 3, Window 4). 3.
  • Page 12 7.2.2 MAINS Network configuration Click on 【Network】→【Network Setting】 to access the following network. This page can be used to display and set the parameters related to the LAN of the camera: Type: DHCP, Static or PPoE. The default setting is Static. Command Port: This is the default command port of the IP camera.
  • Page 13 Video Stream Click on 【Network】→【Video Streaming】 to access the following interface. Type: MainStream, SubStream and MobileStream The user can set: Resolution (Resolution), FPS, Audio, control of the bitrate (Rate control: CBR/VBR and the MainStream/SubStream/MobileStream Bitrate. Resolution: MainStream (1280×720), SubStream e Mobile Stream (704×576, 640×360, 352×288). FPS: Max.
  • Page 14 Email Click on 【Network】) →【Email】 to access the following interface. Email: email service setting. By using this function in association with the Motion alarm function, the camera can sent the images acquired by email on the Internet by contacting the set email server (SMTP). SMTP Port: The default value is 25 (email service port).
  • Page 15 Connection Status is used to check the settings of the DDNS account. DDNS: Disable/Enable. Server: Select the DDNS provider Host Name: Enter the name of the host recorded User Name: Enter the name of your account recorded on on the DDNS provider website. the DDNS provider website.
  • Page 16 RTSP Click on 【Network】) →【RTSP】 to access the following interface. RTSP Port: The default password is 554. The device will be restarted after the change. Description rtsp://IP:Port/live/A/B • IP: IP address of the device. • Port: RTSP port of the device. 554 •...
  • Page 17 7) P2P (for future uses) Click on 【Network】) →【P2P】 to access the following interface. P2P: this refers to function which allows the device to be accessible through the internet, e.g. from the smartphone app with no need to know the public IP address and without port-mapping settings on the router. Description P2P: this activates/deactivate the function, default: active.
  • Page 18 8) HTTP Click on 【Network】) →【HTTP】 to access the following interface. HTTP: this refers to the function which allows the device to send http messages to a remote http server (e.g. a server which converts the message to push to smartphone). Description HTTP: this activates/deactivate the function, default: off.
  • Page 19 7.2.3 ALARM 1) MOTION Click on 【Alarm】→【Motion】 to access the following interface. Setting procedure 1. Motion detection can be activated/deactivated. 2. Holding the left button pressed, drag the mouse to select the motion detection area. Single cells can be enabled by clicking on them.
  • Page 20 7.2.4 SYSTEM The System menu contains the following items: 【Date/Time】,【Users】, 【Info】 and 【Log】. The respective interfaces and descriptions are shown below. 1) DATE/TIME SETTING Click on 【System】→【Date/Time】 to access the following interface. PARAMETERS: the Device Name can be changed here. DATE/TIME: This user interface can be used to set the date and time, including System Time, NTP, Date Format and Time Format.
  • Page 21 2) USERS Click on 【System】→【Users】 to access the following interface. New users can be created, activated and deactivated and the password can managed here. DS1093-608...
  • Page 22 INFO Click on 【System】→【Info】 to access the following interface. Device system information are shown here, such as model, serial number, software version etc. DS1093-608...
  • Page 23 4) LOG Click on 【System】→【Log】 to access the following interface. Log Type: five types can be selected (system log, parameter log, registration log, user log, alarm log, events log, memory log, All logs. Specify start date/time and end date/time for the searched log. Click on Search and the information on of the corresponding log will be shown.
  • Page 24 Default parameter loading Click on 【Advanced】→【Load Default】 to access the following interface. Select “Reset factory settings” and press the Save button to restore all default setting except for: network parameters (LAN), user Password, NTP, DST, channel name. Click on “Reboot” and press the Save button to restart the device. Maintenance Click on 【Advanced】...
  • Page 25 LOCAL SETTINGS Click on “Local Setting” to view the following dialogue window. You can set Local Disk, Record Path, Snapshot Path, File Type and Interval for video recordings and capturing manual snapshot. IMPORTANT NOTE: Start Internet Explorer with operating system Administrator rights for the browser to have the privileges needed to create folders for saving video files and manual snapshots on PC.
  • Page 26 TECHNICAL SPECIFICATIONS Description Item Micro Camera Square IP Starlight PIR IP Camera Starlight 1093/143M2 1099/204 Type of sensor IMX307 Video format 16/9 Minimum luminance Colour 0.008Lux @F1.2 AGC ON Fixed lens, 3.3mm Fixed lens, 3.7mm Lens HOV: 71 Viewing angle...
  • Page 27 Description Item Micro Camera Square IP Starlight PIR IP Camera Starlight 1093/143M2 1099/204 Power DC12V/POE Draw (G/N) 1.8W (G), 2.2W (N) Dimensions (W x H x D) 40(W) x 40(H) x27(D)mm 60(W) x 100(H) x25(D)mm 125g Weight (g) DS1093-608...
  • Page 28 APPENDIX TROUBLESHOOTING ◆ IE does not load or install the plug-ins. Possible cause: The IE protection level setting is too high. Solution: Set the IE protection level to minimum. ◆ After updating, the user cannot inspect the IP camera using IE. Solution: Empty the IE cache.
  • Page 29 DS1093-608...
  • Page 30 DS1093-608...
  • Page 31 DS1093-608...
  • Page 32 DS1093-608 Technical area URMET S.p.A. Customer Care 10154 TORINO (ITALY) 011.23.39.810 VIA BOLOGNA 188/C http://www.urmet.com Tel. +39 011.24.00.000 (AUTO) e-mail: info@urmet.com DS1093-608 +39 011.24.00.300 - 323 MADE IN CHINA...
