Page 3: Preface

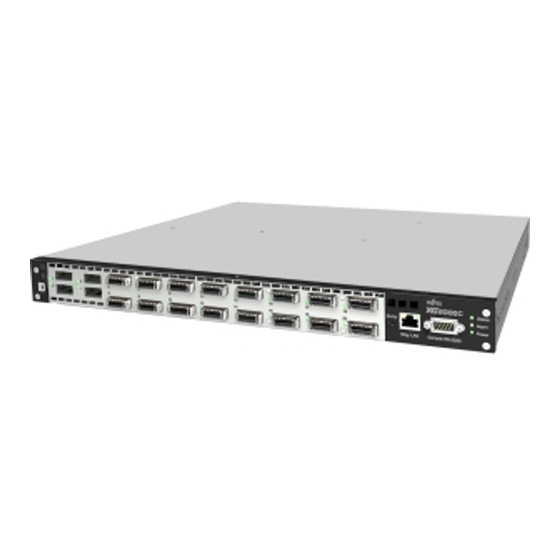

Preface You have purchased the XG2000C, a compact, 20 port 10 Gigabit Ethernet layer 2 switch that achieves unsurpassed standards of high throughput and low-latency performance. This manual explains the procedures required to install your XG2000C and should be read and understood before you start using your XG2000C. -
Page 4: For Safe Use Of The Xg2000C
For Safe Use of the XG2000C This manual contains important information to ensure the safe use of your XG2000C. Be sure to thoroughly read and understand its contents before attempting to use the XG2000C. After reading, store this manual in a safe place for future reference. PFU has made every effort to ensure the safety of the user and others, and to prevent property damage. - Page 5 This symbol indicates the possibility of serious or fatal injury if the XG2000C WARNING is not used properly. For your safety and that of others, please follow these guidelines. Category Warning Danger of Never attempt to disassemble, dismantle, upgrade, or recycle the XG2000C by yourself. electric shock Do not place objects on the XG2000C, as there is a risk of electric shock, fire, and/or damage.
- Page 6 This symbol indicates the possibility of minor or moderate personal injury, as CAUTION well as damage to the XG2000C and/or to other users and their property, if the XG2000C is not used properly. Category Caution Danger of device Do not place the XG2000C on its side or stack up multiple XG2000Cs. Doing so may damage the damage XG2000C.
-
Page 7: No Self Maintenance
• Use of this hardware guide, the XG2000C, its firmware, and the management software are the responsibility of the user. • Fujitsu and its partners accept no responsibility for any errors or data loss arising from use of the XG2000C. Before using the XG2000C, it should be understood that the XG2000C is not guaranteed against failure for any more than the original purchase price. -
Page 8: Electromagnetic Compatibility (Usa)
Electromagnetic compatibility (USA) FCC PART 15B (2005) Class A FCC WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class A dig- ital device, pursuant to Part 15 of the FCC Rules. -
Page 9: High Safety
Do not use the XG2000C for High Safety Required Use without otherwise ensuring the safety level required. Fujitsu and its related companies assume no liability whatsoever for damages arising from use of the XG2000C by the user in high-safety applications, and for any claims or compensation for damages by the user or a third party. -
Page 10: About This Manual
About This Manual This section explains who this manual is aimed at, describes the layout of the manual, and gives a description of the symbols used in this manual. Targeted reader and expected knowledge This manual is written for an administrator who has responsibility for network system configu- ration, maintenance, and management. -
Page 11: Symbols Used In This Manual
Company names and products names referred in this manual are registered trademarks or trademarks of respective companies. The trademark ™ and ® have been omitted from this manual. Product Information The latest product information including technical information, update information, are avail- able from the following web site: http://www.pfu.fujitsu.com/products/xg About This Manual... - Page 12 About This Manual...
-
Page 13: Table Of Contents
Contents Preface ......................1 For Safe Use of the XG2000C ..............2 Warning notations ....................2 No self maintenance ..................5 Warning label ..................... 5 Safety precautions ..................... 5 For security ......................5 Electromagnetic compatibility (USA) ..............6 Electromagnetic compatibility (CANADA) ............6 Electromagnetic compatibility (EU) .............. - Page 14 Chapter 3 Troubleshooting ............37 Start-up Problems ..................38 Hardware Problems ..................39 Appendix..................... 41 Appendix-A Specifications ...................42 Product Specifications ................42 Installation Specifications ................42 Contents...
-
Page 15: Chapter 1 Installation
Installation This chapter lists the items that should be in the XG2000C package, describes the names and functions of the various components of the XG2000C. 1-1 Parts List....................14 1-2 XG2000C Components ................16 1-3 Labels .....................19... -
Page 16: Parts List
Parts List Before proceeding, check that all of the following parts were included in your XG2000C package. Contact the vendor's service department if any parts are missing and/or the manual has any miss- ing or wrongly collated pages. Keep the hardware guide (this manual) and the CD-ROM in a safe place. XG2000C CD-ROM Power code ×... - Page 17 • Rack Mounting Brackets Brackets for mounting the XG2000C in a rack. Attach each rack mounting bracket to the right and left sides of the XG2000C, and fasten to the rack posts with the rack screws (large). • Rack Mounting Bracket B A bracket for mounting the XG2000C in a rack.
-
Page 18: Xg2000C Components
XG2000C Components This section explains the names and functions of the various XG2000C components, including the various indicator LEDs. XG2000C front The following explains the names and functions of the components at the front of the XG2000C. XFP/Port 1 - 4 Mng-LAN Speed LED upper stand : odd number Mng-LAN Link LED... - Page 19 XG2000C rear The following explains the names and functions of the components at the rear of the XG2000C. Rear Fan Unit Power Supply Unit FAN 2/3 Label PWR 1 Label Power Inlet Rear Fan LED PWR 0 Label FAN 0/1 Label Power Supply LED •...
- Page 20 Display LEDs There are three main indicator LEDs on the front of the XG2000C: Power LED, Alarm LED, and Status LED. The following explains the LED display under various conditions. XG2000C Condition Power Alarm Status Starting up Power just turned on System starting up Off *1 Blinking...
-
Page 21: Labels
Labels A warning sticker, FCC Label, FCC Canada Label, CSA/CE Label, product nameplate, product ID label, and MAC label are to be found in various places on the XG2000C. MAC Label Product ID Label CSA/CE Label FCC Canada Label FCC Label Warning Sticker Product Nameplate Top view of XG2000C... - Page 22 FCC Label This indicates statement of Part 15 fo FCC rules. FCC Canada Label This indicates notification of CSA. CSA/CE Label This indicates CE Marking. Installation...
- Page 23 0 1 2 3 4 5 6 7 8 9 1 50/60Hz **** Kg 100-240V *** **** A/INPUT PFU Limited MADE IN JAPAN a Fujitsu company Product ID Label This indicates the model and serial number. ***** Model MODEL ********* SER.
- Page 24 Address on the MAC label Location xx:xx:xx:xx:xx:xx+14 Port 13 xx:xx:xx:xx:xx:xx+15 Port 14 xx:xx:xx:xx:xx:xx+16 Port 15 xx:xx:xx:xx:xx:xx+17 Port 16 xx:xx:xx:xx:xx:xx+18 Port 17 xx:xx:xx:xx:xx:xx+19 Port 18 xx:xx:xx:xx:xx:xx+20 Port 19 xx:xx:xx:xx:xx:xx+21 Port 20 (=yy:yy:yy:yy:yy:yy) Installation...
-
Page 25: Chapter 2 Installation And Operation
Installation and Operation This chapter explains how the user should proceed from installation to operation of the XG2000C. 2-1 Installation Overview ................24 2-2 Installation Procedure ................25 2-2-1 Installation requirements............25 2-2-2 Installing the XG2000C in a rack ..........26 2-2-3 Uninstalling the XG2000C from a rack ........30 2-3 Installation of modules ................31 2-3-1 Installing the XFP modules ............31 2-3-2 Uninstalling the XFP modules............32... -
Page 26: Installation Overview
Installation Overview This section reviews the flow of work as the user proceeds from installation to operation of the XG2000C. Install the XG2000C and the proceed with normal operation as follows: Check the components "1-1 Parts List" Check the set up area and install the XG2000C "For Safe Use of the XG2000C", "2-2 Installation Procedure"... -
Page 27: Installation Procedure
Installation Procedure This chapter describes the installation requirements and installation procedure. 2-2-1 Installation requirements Before installing the XG2000C, read " For Safe Use of the XG2000C (P.2)" and comply with the installation requirements described below. Space requirements When installing the XG2000C, a certain amount of installation space is necessary. When installing the rack, the indicated space (800mm of both the front and rear of the rack) should be reserved as a service area. -
Page 28: Installing The Xg2000C In A Rack
Set up requirements Only use the XG2000C under the temperature, humidity and other environmental conditions specified in "A.2 Installation Specifications (P.42)". Using the XG2000C outside the following ranges can shorten the lifetime or cause the failure of the XG2000C. • Temperature (5 - 40°C) •... - Page 29 Fix the nuts and rails to the rack posts. First, choose nuts, cage nuts or rack nuts, by the type of hole dug in the rack post. When the rack has square post holes, cage nuts are used. When round holes, rack nuts are used.
-
Page 30: Installation And Operation
[When the rack has round post holes] Rack Post Rack Screws (Large) Rack Post Rack Nuts Rack Screws (Large) Rack Post Rail R Rail L Refer to Detail A Rack Nuts Rack Nuts Clip the rack nuts onto the Rack Post rack post so that the holes are lined up. - Page 31 Fix the four rack mounting brackets to the XG2000C. Each of the four rack mounting brackets (two of front side, two of back side) has two holes that should line up with matching holes on the sides of the XG2000C, as shown in the dia- gram.
-
Page 32: Uninstalling The Xg2000C From A Rack
This completes the rack installation procedure. Rack Post Rack Post 2-2-3 Uninstalling the XG2000C from a rack The following explains how to uninstall the XG2000C from a rack. Undo the rack screws that were used to fasten the XG2000C to the rack. Rack Screws (Small) Rack Screws (Large) Slide the XG2000C forward, and remove it from the rack. -
Page 33: Installation Of Modules
Installation of modules This section describes the installation of the XFP modules. 2-3-1 Installing the XFP modules The following explains how to install XFP modules in a XG2000C. Install a XFP module in a XG2000C. Install XFP module as in the following manner; (1) Insert the XFP module with the cable connector facings outward. -
Page 34: Uninstalling The Xfp Modules
2-3-2 Uninstalling the XFP modules The following explains how to uninstall XFP modules in a XG2000C. Uninstall a XFP module in a XG2000C. Uninstall the XFP module in the following manner; (1) Unlock the XFP module by lower the lever on odd numbered ports. Lift the lever up for even numbered ports. -
Page 35: Cable Connection
Cable Connection This section explains how to connect the cables and power cords. 2-4-1 Connecting cables The cables need to be connected to the XG2000C XFP modules and micro GiGa Connec- tors. Connect the fiber optic cables to the XG2000C. Connect the fiber optic cables to the XFP modules (Port 1 - Port 4) on the front of XG2000C. -
Page 36: Connecting The Power Cords
Connect the CX4 cables to the XG2000C. Connect the CX4 cables to the micro GiGa Connectors (Port 5 - Port 20) on the front of XG2000C. Attention Attention • It is necessary that the connectors be fixed in the correct position, in order to protect the connector interface against external damage. -
Page 37: Basic Operation
Basic Operation This section explains the basic operation of XG2000C. 2-5-1 Turning the XG2000C on WARNING • Unplug the XG2000C during thunder-storms. Continued use under these condi- tions risks lightning damage to the XG2000C, and may cause a fire. • Insert the power plug completely into the power socket. Using the XG2000C with a half inserted power plug may cause a fire or damage. -
Page 38: Turning The Xg2000C Off
2-5-2 Turning the XG2000C off WARNING • When you remove a power plug from its outlet, be sure to pull the only power plug itself. Pulling on the power cord itself may expose the cores or break the cord, and cause electric shock or fire. -
Page 39: Chapter 3 Troubleshooting
Troubleshooting This chapter describes what you should do when your XG2000C fails to operate properly. 3-1 Start-up Problems ...................38 3-2 Hardware Problems................39... -
Page 40: Start-Up Problems
Start-up Problems The following errors may occurs when the XG2000C is started up. If the cause of the error cannot be resolved, contact the vendor's service department. The following explains some general errors that can occur. Check if any of these match your prob- lem. -
Page 41: Hardware Problems
Hardware Problems This section explains what should be done when a fan, temperature, Voltage, power supply, memory, or XFP error occurs. Contact the vendor's service department when the following errors occur. Fan error When a problem is detected with a fan, the front panel Alarm LED lights orange, the LED of the fan unit in which the error has occurred lights orange, and an error is recorded in the event log. - Page 42 Troubleshooting...
-
Page 43: Appendix
Appendix This appendix explains XG2000C specifications. Appendix-A Specifications ................42 A.1 Product Specifications ..............42 A.2 Installation Specifications..............42... -
Page 44: Appendix-A Specifications
Appendix-A Specifications This section details the specifications of XG2000C. A.1 Product Specifications The product specifications of the XG2000C are as follows: Items Overview IEEE802.3ae/ak compliant 10 Gigabit Ethernet port × 4 10 Gigabit ports Port1 - Port4 (for XFP modules) IEEE802.3ak compliant 10 Gigabit Ethernet port ×... - Page 45 XG2000C Hardware Guide P3N1-E122-01EN Date of issue: June 2007 Issuing authority: PFU LIMITED Printed in Japan • Contents of this manual are not to be reproduced without permission from PFU. • The contents of this manual may be updated without notice. •...
