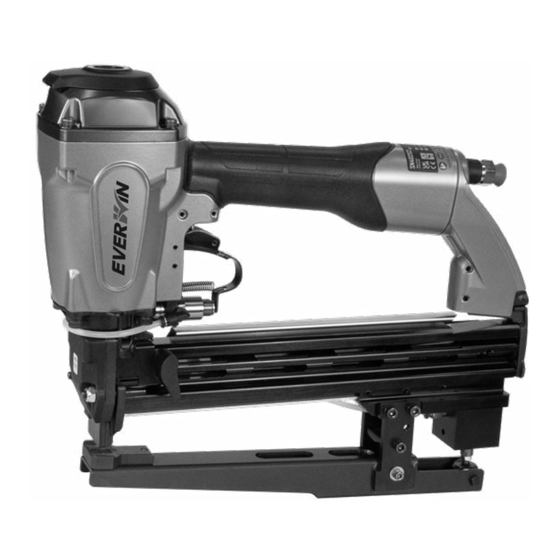

Everwin SN402S2CL Manual

SPECIFICATIONS
Model SN402S2CL
Height 310mm (12.2")
Width 85mm (3.4")
Length 363mm (14.3")
Weight 3.45 kgs (7.6 lbs)
Recommended
Oper. Press (75~85 psi)
Loading Capacity
Air Consumption 0.9 liter/cycle
(L/sec @90psi) (1.9 cfm)
OPERATING
Please refer to the SN50 & SN40 series manual for more detailed instructions and warnings
before using these tools.
1.Move Pusher
Backward
2.Loading Fasteners
3.Position the Tool
and Workpiece
SN402S2CL / SN402PCL
SN402PCL
310mm (12.2")
85mm (3.4")
363mm (14.3")
3.45 kgs (7.6 lbs)
5~6 bar 5~6 bar
(75~85 psi)
160 160
0.9 liter/cycle
(1.9 cfm)
16GA Clinch Stapler
FASTENER SPECIFICATIONS
Model SN402S2CL
19~40mm
Staple Length
(3/4"~1-9/16")
Crown Width
Wire 1.6x1.4mm
Dimensions (0.062"x0.055")
16GA BOSTITCH
Type
Position the Tool and Workpiece Hold the pusher and pull
it back until it latches.
Insert the fastener strip(s), then release the pusher to
secure them.
Slide the tool into the desired position on the workpiece
(e.g., cardboard) and ensure the material is properly
situated between the contact trip and the anvil.
40mm (1-9/16")
SN402PCL
19~40mm
(3/4"~1-9/16")
25.4mm 26.4mm
(1") (1.0625")
1.6x1.4mm
(0.062"x0.055")
16GA Senco P
BCS2
1 0 9 7 7 2
