Everwin SCN90L Operation And Maintenance Manual

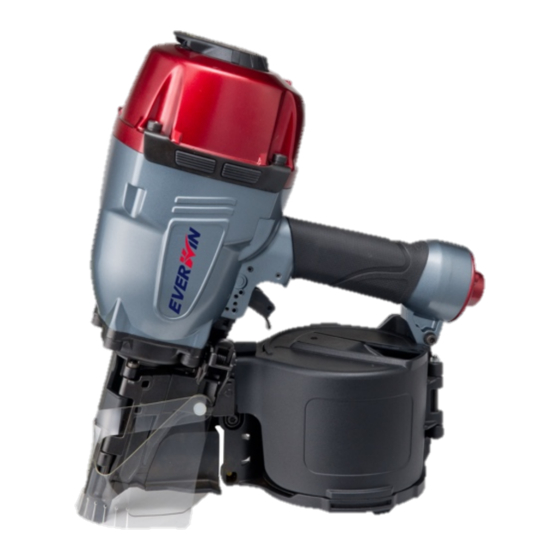

Pneumatic coil nailer
Hide thumbs Also See for SCN90L:
Table of Contents

Advertisement

Quick Links

Download this manual
FCN90(L) / SCN90L / PN90
Pneumatic Coil Nailer
OPERATIONS and MAINTENANCE MANUAL
CE DECLARATION OF CONFORMITY
BEFORE OPERATING THIS TOOL, ALL OPERATORS SHOULD READ AND STUDY
THIS MANUAL TO UNDERSTAND AND FOLLOW THE SAFETY WARNINGS AND
INSTRUCTIONS. KEEP THESE INSTRUCTIONS WITH THE TOOL FOR FUTURE
REFERENCE.
Everwin Pneumatic Corp.
19'/3/19

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCN90L and is the answer not in the manual?

Questions and answers

Related Manuals for Everwin SCN90L

Summary of Contents for Everwin SCN90L

  • Page 1 FCN90(L) / SCN90L / PN90 Pneumatic Coil Nailer OPERATIONS and MAINTENANCE MANUAL CE DECLARATION OF CONFORMITY BEFORE OPERATING THIS TOOL, ALL OPERATORS SHOULD READ AND STUDY THIS MANUAL TO UNDERSTAND AND FOLLOW THE SAFETY WARNINGS AND INSTRUCTIONS. KEEP THESE INSTRUCTIONS WITH THE TOOL FOR FUTURE REFERENCE.

  • Page 2: Table Of Contents

    NOTE: Additional safety measures may be required because of your particular application of the tool. Contact your EVERWIN representative or distributor with any questions concerning the tool and its use. Everwin Pneumatic Corp., Taichung City, Taiwan 41353.

  • Page 3: 1-Year Limited Warranty

    (as a gauge for the tool’s age) and photos/videos of the defect for test and evaluation to find root causes. EVERWIN’s analyst will judge the issuance of defective parts and will replace at no charge if evaluation results show that the root cause is defect in material and/or workmanship.

  • Page 4: Ce Declaration Of Conformity

    Europäischen Richtlinien 2006/42/EC und den Europäischen Norm EN 792-13. CE Déclaration de conformité FRANCAIS EVERWIN PNEUMATIC CORP. déclare et prend sur soi toute la responsabilité de cette déclaration, que le produit est en conformité avec les Directives Européennes 2006/42/EC et avec la norme harmonisée EN 792-13. CE konformiteitsverklaring NEDERLANDS EVERWIN PNEUMATIC CORP.

  • Page 5: Safety Instructions

    SAFETY INSTRUCTIONS TO AVOID SEVERE PERSONAL INJURY OR PROPERTY DAMAGE BEFORE OPERATING THIS TOOL, ALL OPERATORS SHOULD READ AND STUDY THIS MANUAL TO UNDERSTAND AND FOLLOW THE SAFETY WARNINGS AND INSTRUCTIONS. FAILURE TO FOLLOW WARNINGS COULD RESULT IN DEATH OR SERIOUS INJURY. KEEP THESE INSTRUCTIONS WITH THE TOOL FOR FUTURE REFERENCE.

  • Page 6: Specifications

    TECHNICAL DATA AIR CONSUMPTION Tool air consumption: FCN90-4.2 cfm (2.0 liter/second), FCN90L-3.4 cfm (1.6 liter/second), SCN90L-3.4 cfm (1.6 liter/sec), PN90-4.4 cfm (2.1 liter/second) of free air to operate at the rate of 100 nails per minute, at 90 PSI (6.0 kg/cm 2 ).

  • Page 7: Operation

    These values are determined and documented in accordance to EN12549. VIBRATION Vibration characteristic value= FCN90-4.57, FCN90L-3.68, SCN90L-3.68, PN90-4.57 m/s These values are determined and documented in accordance to ISO 8662-11. This value is a tool-related characteristic value and does not represent the influence to the hand-arm-system when using the tool.

  • Page 8: Air Consumption, Regulators, Supply Source

    rapid fastener placement on many jobs, such as sheathing, decking and pallet assembly. All pneumatic tools are subject to recoil when driving fasteners. The tool may bounce, releasing the trip, and if unintentionally allowed to recontact the work surface with the trigger still actuated (finger still holding trigger pulled) an unwanted second fastener will be driven.

  • Page 9: Lubrication

    LUBRICATION Frequent, but not excessive, lubrication is required for best performance. A i r - t o o l o il added through the air line connection will lubricate the internal parts. Do not use detergent oil or additives as these lubricants will cause accelerated wear to the seals and bumpers in the tool, resulting in poor tool performance and frequent tool maintenance.

  • Page 10: Tool Operation

    LOADING THE TOOL: Open the magazine: Pull down door latch and swing door open. Open the magazine. Nail length adjustment: The nail support can be moved up and down to four settings. To change setting pull up on the post and twist to t h e c orrect step.
  • Page 11 There are three available systems on the FCN90L, SCN90L & PN90: 1. CONTACT TRIP OPERATION (RAPID FIRE): To operate the tool in this manner, hold the tool with the contact trip pointing towards but not touching the work surface. Pull the trigger and then tap the contact trip against the work surface using a bouncing motion. Each depression of the contact trip will cause a fastener to be driven.
  • Page 12 TRIGGER LOCK MECHANISM (FCN90) The tool is equipped with a Trigger Lock mechanism. Push and rotate the Trigger Lock Dial to the trigger free position before driving nails. DIRECTIONAL EXHAUST COVER (FCN90L & PN90) ALWAYS disconnect air supply before rotating the exhaust cover by hand.

  • Page 13: Tool Operation Check

    TOOL OPERATION CHECK CAUTION: Remove all fasteners from tool before performing tool operation check. 1. CONTACT TRIP OPERATION: a. With finger off the trigger, press the contact trip against the work surface. THE TOOL MUST NOT CYCLE. b. Hold the tool off the work surface, and pull the trigger. THE TOOL MUST NOT CYCLE.

  • Page 14: Maintaining The Pneumatic Tool

    Standard Length FCN90: 6.667” – 6.683” (169.35 -- 169.75 mm) FCN90L: 7.154” – 7.169” (181.70 – 182.10 mm) SCN90L: 7.154” – 7.169” (181.70 – 182.10 mm) PN90: 6.756” – 6.772” (171.6 -- 172.0 mm) TROUBLESHOOTING / REPAIRS The troubleshooting and / or repairs shall be carried out only by the authorized dealer / distributor or by other...

This manual is also suitable for:

Fcn90lFcn90Pn90Pn90-tsPn90pal
