Everwin SCN65 Operation And Maintenance Manual

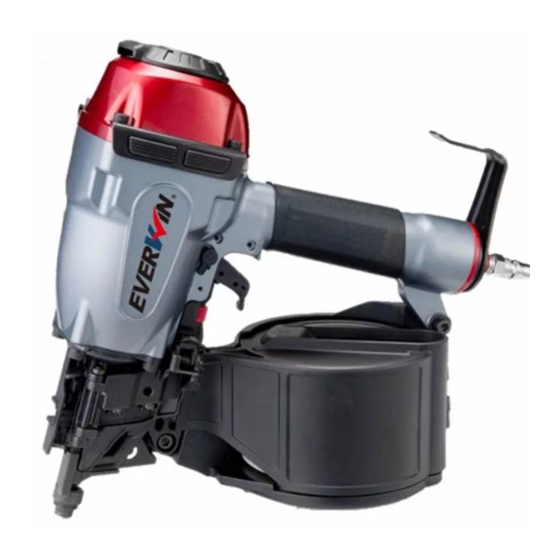

Pneumatic coil nailer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SCN65 / SCN66
Pneumatic Coil Nailer
OPERATIONS and MAINTENANCE MANUAL
CE DECLARATION OF CONFORMITY
BEFORE OPERATING THIS TOOL, ALL OPERATORS SHOULD READ AND STUDY
THIS MANUAL TO UNDERSTAND AND FOLLOW THE SAFETY WARNINGS AND
INSTRUCTIONS. KEEP THESE INSTRUCTIONS WITH THE TOOL FOR FUTURE
REFERENCE.
Everwin Pneumatic Corp.
19'/3/19

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCN65 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Everwin SCN65

Summary of Contents for Everwin SCN65

  • Page 1 SCN65 / SCN66 Pneumatic Coil Nailer OPERATIONS and MAINTENANCE MANUAL CE DECLARATION OF CONFORMITY BEFORE OPERATING THIS TOOL, ALL OPERATORS SHOULD READ AND STUDY THIS MANUAL TO UNDERSTAND AND FOLLOW THE SAFETY WARNINGS AND INSTRUCTIONS. KEEP THESE INSTRUCTIONS WITH THE TOOL FOR FUTURE REFERENCE.

  • Page 2: Table Of Contents

    NOTE: Additional safety measures may be required because of your particular application of the tool. Contact your EVERWIN representative or distributor with any questions concerning the tool and its use. Everwin Pneumatic Corp., Taichung City, Taiwan 41353.

  • Page 3: 1-Year Limited Warranty

    (as a gauge for the tool’s age) and photos/videos of the defect for test and evaluation to find root causes. EVERWIN’s analyst will judge the issuance of defective parts and will replace at no charge if evaluation results show that the root cause is defect in material and/or workmanship.

  • Page 4: Ce Declaration Of Conformity

    Europäischen Richtlinien 2006/42/EC und den Europäischen Norm EN 792-13. CE Déclaration de conformité FRANCAIS EVERWIN PNEUMATIC CORP. déclare et prend sur soi toute la responsabilité de cette déclaration, que le produit est en conformité avec les Directives Européennes 2006/42/EC et avec la norme harmonisée EN 792-13. CE konformiteitsverklaring NEDERLANDS EVERWIN PNEUMATIC CORP.

  • Page 5: Safety Instructions

    SAFETY INSTRUCTIONS TO AVOID SEVERE PERSONAL INJURY OR PROPERTY DAMAGE BEFORE OPERATING THIS TOOL, ALL OPERATORS SHOULD READ AND STUDY THIS MANUAL TO UNDERSTAND AND FOLLOW THE SAFETY WARNINGS AND INSTRUCTIONS. FAILURE TO FOLLOW WARNINGS COULD RESULT IN DEATH OR SERIOUS INJURY. KEEP THESE INSTRUCTIONS WITH THE TOOL FOR FUTURE REFERENCE.

  • Page 6: Specifications

    SPECIFICATIONS TOOL SPECIFICATIONS MODEL SCN65 / SCN65T / SCN65-ST SCN66 / SCN66-ST HEIGHT 11.7" (297 mm) 11.4” (290 mm) WIDTH 5" (127 mm) 5.7” (146 mm) LENGTH 10.7" (272 mm) 11.4” (290 mm) WEIGHT 5.0 lbs. (2.3 kg) 5.2lbs. (2.3 kg)

  • Page 7: Operation

    Refer to Operation Instructions and warnings on pages before proceeding to use this tool. THIS TOOL IS EQUIPPED WITH A TRIGGER THAT HAS DUAL PURPOSE SCN65, SCN65B, SCN65T, SCN66 ARE EQUIPPED WITH A SMART TRIGGER THAT HAS DUAL PURPOSE SMART TRIGGER: IDENTIFIED BY RED TRIGGER CONTINUOUS BUMP FIRE OPERATION WITH SMART TRIGGER The common operating procedure on “Contact Trip”...

  • Page 8: Air Consumption, Regulators, Supply Source

    SCN65-ST, SCN65B-ST, SCN65T-ST, SCN66-ST ARE EQUIPPED WITH A SEQUENTIAL TRIP TRIGGER SYSTEM. SEQUENTIAL TRIP: IDENTIFIED BY GREY TRIGGER The Sequential Trip requires the operator to hold the tool against the work before pulling the trigger. This makes accurate fastener placement easier, for instance on framing, toe nailing and crating applications. The Sequential Trip allows exact fastener location without the possibility of driving a second fastener on recoil, as described under “Contact Trip”.

  • Page 9: Lubrication

    LUBRICATION Frequent, but not excessive, lubrication is required for best performance. A i r - t o o l o il added through the air line connection will lubricate the internal parts. Do not use detergent oil or additives as these lubricants will cause accelerated wear to the seals and bumpers in the tool, resulting in poor tool performance and frequent tool maintenance.

  • Page 10: Tool Operation

    LOADING THE TOOL: Open the magazine: Pull down door latch and swing door open. Open the magazine. Nail length adjustment: The nail support can be moved up and down to four settings. To change setting pull up on the post and twist to t h e c orrect step.
  • Page 11 There is one available system on the SCN65-ST, SCN65B-ST, SCN65T-ST & SCN66-ST: 1. SEQUENTIAL TRIP OPERATION (SINGLE FIRE): To operate the tool in this manner, first position the contact trip on the work surface, WITHOUT PULLING THE TRIGGER. Depress the contact trip until the nose touches the work surface and then pull the trigger to drive a fastener.
  • Page 12 TRIGGER LOCK MECHANISM The tool is equipped with a Trigger Lock mechanism. Push and rotate the Trigger Lock Dial to the trigger free position before driving nails. DIRECTIONAL EXHAUST COVER ALWAYS disconnect air supply before rotating the exhaust cover by hand.

  • Page 13: Tool Operation Check

    TOOL OPERATION CHECK CAUTION: Remove all fasteners from tool before performing tool operation check. 1. RAPID FIRE OPERATION: a. With finger off the trigger, press the contact trip against the work surface. THE TOOL MUST NOT CYCLE. b. Hold the tool off the work surface, and pull the trigger. THE TOOL MUST NOT CYCLE.

  • Page 14: Maintaining The Pneumatic Tool

    MAINTAINING THE PNEUMATIC TOOL When working on air tools, note the warnings in this manual and use extra care evaluating problem tools. Disconnect air supply and empty the magazine when inspecting or maintaining the tool. REPLACEMENT PARTS: Use only genuine parts from the manufacturer or distributor. Do not use modified parts or parts which will not give equivalent performance to the original equipment.
