TOUGHER FASTER SMARTER

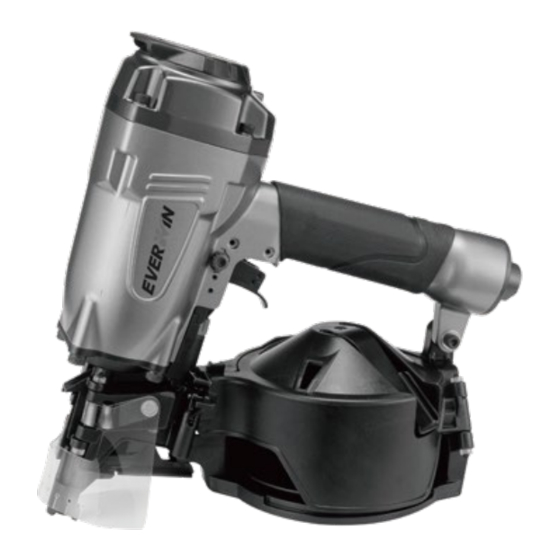

Pneumatic Coil Nailer
Pneumatic Coil Nailer
PN51 / PN51B / SCN51
Operations and Maintenance Manual
Operations and Maintenance Manual
Before operating this tool, all operators should read and study this
manual to understand and follow the safety warnings and instructions.
Keep these instructions with the tool for future reference.
REV Apr./26/2022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PN51B and is the answer not in the manual?

Questions and answers

Related Manuals for Everwin PN51B

Summary of Contents for Everwin PN51B

  • Page 1 TOUGHER FASTER SMARTER Pneumatic Coil Nailer Pneumatic Coil Nailer PN51 / PN51B / SCN51 Operations and Maintenance Manual Operations and Maintenance Manual Before operating this tool, all operators should read and study this manual to understand and follow the safety warnings and instructions.

  • Page 2: Table Of Contents

    NOTE Additional safety measures may be required because of your particular application of the tool. Contact your EVERWIN representative or distributor with any questions concerning the tool and its use. Everwin Pneumatic Corp., No.7, Wugong 7th Road, Wufeng District, Taichung City, 413, Taiwan...

  • Page 3: 1-Year Limited Warranty

    EVERWIN products are designed and manufactured to the highest standards of both material and workman- ship. EVERWIN warrants to the original retail purchaser that the product purchased is free from defect in material and workmanship and agrees to repair or replace at EVERWIN ‘s option any defective EVERWIN pneumatic stapler or er for a period of one year, subject to the exclusions and limitations described hereunder.

  • Page 4: Ce Declaration Of Conformity

    Europäischen Richtlinien 2006/42/EC undden Europäischen Norm EN 792-13. FRANCAIS CE Déclaration de conformité EVERWIN PNEUMATIC CORP. déclare et prend sur soi toute la responsabilité de cette déclaration, que le produit esten conformité avec les Directives Européennes 2006/42/EC et avec la norme harmonisée EN 792-13.

  • Page 5: Safety Instructions

    Safety Instructions To Avoid Severe Personal Injury Or Property Damage Before operating this tool, all operators should read and study this manual to understand and follow the safety warnings and instructions. Failure to follow warnings could result in death or serious injury. Keep these instructions with the tool for future reference. Eye Protection Which conforms to ANSI/ CE specifications and provides protection against flying particles both from the FRONT and SIDE should ALWAYS be worn by the operator and others in...
  • Page 6 Safety Instructions staple Loading When loading tool: 1.) Never place a hand or any part of body in fastener discharge area of tool; 2.) Never point tool at anyone; 3.) Do not pull the trigger or depress the trip as accidental actuation may occur, possibly causing injury.

  • Page 7: Specifications And Technical Data

    Do not exceed this recommended operating pressure. Air Consumption Tool air consumption: PN51-2.27 cfm (1.07 liter/cycle), PN51B-2.27 cfm (1.07 liter/cycle),SCN51-2.27 cfm (1.07 liter/cycle) of free air to operate at the rate of 100 nails per minute, at 90 psi (6.0 kg/cm ).

  • Page 8: Operation

    Specifications and Technical Data Noise A-weighted single-event sound power level LWA, 1s: PN51-102.5, PN51B-102.5, SCN51-102.5 dBA. A-weighted single-event emission sound pressure level at work station LpA 1s,d: PN51-104.5, PN51B-104.5, CN51-104.5 dBA. These values are determined and documented in accordance to EN12549.
  • Page 9 Operation 2. Squential Trip The Sequential Trip requires the operator to hold the tool against the work before pulling the trigger. This makes accurate fastener placement easier, for instance on framing, toe stapling and crating applications. The Sequential Trip allows exact fastener location without the possibility of driving a second fastener on recoil, as described under “Contact Trip”.

  • Page 10: Air Supply And Connections: Fittings, Hoses, Filters

    Air Supply and Connections Do not use oxygen, combustible gases, or bottled gases as a power source for this tool as tool may explode possibly causing injury. Fittings Install a male plug on the tool which is free flowing and which will release air pressure from the tool when disconnected from the supply source.

  • Page 11: Lubrication

    Lubrication Frequent, but not excessive, lubrication is required for best performance. Air - tool oil added through the air line connection will lubricate the internal parts. Do not use detergent oil or additives as these lubricants will cause accelerated wear to the seals and bumpers in the tool, resulting in poor tool performance and frequent tool maintenance.

  • Page 12: Fastener Loading

    Fastener Loading Eye Protection Which conforms to ANSI/ CE specifications and provides protection against flying particles both from the FRONT and SIDE should ALWAYS be worn by the operator and others in the work area when connecting to air supply, loading, operating or servicing this tool. Eye protection is required to guard against flying fasteners and debris, which could cause severe eye injury.

  • Page 13: Tool Operation

    There are three available systems on the PN51, PN51B: 1. Contact Trip Operation (Rapid Fire) : To operate the tool in this manner, hold the tool with the contact trip pointing towards but not touching the work surface.
  • Page 14 Tool Operation 3. Remote Fire : The Remote fire model is cycle by actuation of remote valve (RCVA1) for mounted machine. There are three available systems on the SCN51: 1. Switchable Trigger Operation : SINGLE SEQUENTIAL FIRE OPERATION WITH SWITCHABLE TRIGGER The single sequential fire operation requires the operator to hold the tool against the work with the safety yoke depressed before pulling the trigger.
  • Page 15 Tool Operation Driving Depth Adjustment Dial (SCN51) WARNING ALWAYS discount air supply before Adjustment dial. 1. With air pressure set, drive nails into a representative material sample to determine if adjustment is necessary. 2. If adjustment is required, disconnect air supply. Shallower 3.

  • Page 16: Tool Operation Check

    Tool Operation Check CAUTION Remove all fasteners from tool before performing tool operation check. 2. Sequential Trip Operation : 1. Contact Trip Operation : a. With finger off the trigger, press the contact trip a. Press the contact trip against the work surface, against the work surface without touching the trigger.

  • Page 17: Maintaining The Pneumatic Tool

    Maintaining The Pneumatic Tool WARNING When working on air tools, note the warnings in this manual and use extra care evaluating problem tools. Disconnect air supply and empty the magazine when inspecting or maintaining the tool. Replacement Parts Use only genuine parts from the manufacturer or distributor. Do not use modified parts or parts which will not give equivalent performance to the original equipment.

  • Page 18: Troubleshooting / Repairs

    When using optional flangeless driver, see adjustment below. Be sure to use proper preparation and installation. Standard Length PN51 : 123.3mm~123.7mm (4.854"~4.870") PN51B : 123.3mm~123.7mm (4.854"~4.870") SCN51 : 123.3mm~123.7mm (4.854"~4.870") Troubleshooting / Repairs The troubleshooting and / or repairs shall be carried out only by the authorized dealer / distributor or by other...
