Everwin PN100 Operation And Maintenance Manual

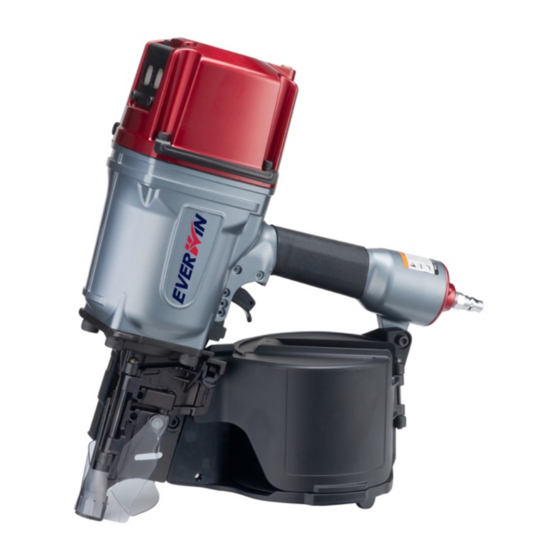

Pneumatic coil nailer
Hide thumbs Also See for PN100:
Table of Contents

Advertisement

Quick Links

Download this manual
PN100(B/CP) / PN100EPAL / PN130(B)
Pneumatic Coil Nailer
OPERATIONS and MAINTENANCE MANUAL
CE DECLARATION OF CONFORMITY
BEFORE OPERATING THIS TOOL, ALL OPERATORS SHOULD READ AND STUDY
THIS MANUAL TO UNDERSTAND AND FOLLOW THE SAFETY WARNINGS AND
INSTRUCTIONS. KEEP THESE INSTRUCTIONS WITH THE TOOL FOR FUTURE
REFERENCE.
19"/3/19
Everwin Pneumatic Corp.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PN100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Everwin PN100

Summary of Contents for Everwin PN100

  • Page 1 PN100(B/CP) / PN100EPAL / PN130(B) Pneumatic Coil Nailer OPERATIONS and MAINTENANCE MANUAL CE DECLARATION OF CONFORMITY BEFORE OPERATING THIS TOOL, ALL OPERATORS SHOULD READ AND STUDY THIS MANUAL TO UNDERSTAND AND FOLLOW THE SAFETY WARNINGS AND INSTRUCTIONS. KEEP THESE INSTRUCTIONS WITH THE TOOL FOR FUTURE REFERENCE.

  • Page 2: Table Of Contents

    NOTE: Additional safety measures may be required because of your particular application of the tool. Contact your EVERWIN representative or distributor with any questions concerning the tool and its use. Everwin Pneumatic Corp., Taichung City, Taiwan 41353.

  • Page 3: 1-Year Limited Warranty

    (as a gauge for the tool’s age) and photos/videos of the defect for test and evaluation to find root causes. EVERWIN’s analyst will judge the issuance of defective parts and will replace at no charge if evaluation results show that the root cause is defect in material and/or workmanship.

  • Page 4: Ce Declaration Of Conformity

    Europäischen Richtlinien 2006/42/EC und den Europäischen Norm EN 792-13. CE Déclaration de conformité FRANCAIS EVERWIN PNEUMATIC CORP. déclare et prend sur soi toute la responsabilité de cette déclaration, que le produit est en conformité avec les Directives Européennes 2006/42/EC et avec la norme harmonisée EN 792-13. CE konformiteitsverklaring NEDERLANDS EVERWIN PNEUMATIC CORP.

  • Page 5: Safety Instructions

    SAFETY INSTRUCTIONS TO AVOID SEVERE PERSONAL INJURY OR PROPERTY DAMAGE BEFORE OPERATING THIS TOOL, ALL OPERATORS SHOULD READ AND STUDY THIS MANUAL TO UNDERSTAND AND FOLLOW THE SAFETY WARNINGS AND INSTRUCTIONS. FAILURE TO FOLLOW WARNINGS COULD RESULT IN DEATH OR SERIOUS INJURY. KEEP THESE INSTRUCTIONS WITH THE TOOL FOR FUTURE REFERENCE.

  • Page 6: Specifications

    For instance, if your fastener usage averages 50 nails per minute, you need 50% of the tool air consumption in running at 100 nails per minute. NOISE A-weighted single-event sound power level LWA, 1s: PN100(B/CP), PN100EPAL: 112.3 dBA PN130(B): 111.2 dBA...

  • Page 7: Operation

    A-weighted single-event emission sound pressure level at work station LpA 1s,d: PN100(B/CP), PN100EPAL: 109.3 dBA PN130(B): 110.0 dBA VIBRATION Vibration characteristic value for PN100(B/CP), PN100EPAL: 4.4 m/s PN130(B): 5.37 m/s These values are determined and documented in accordance to ISO 8662-11.

  • Page 8: Air Consumption, Regulators

    AIR SUPPLY AND CONNECTIONS DO NOT USE OXYGEN, COMBUSTIBLE GASES, OR BOTTLED GASES AS A POWER SOURCE FOR THIS TOOL AS TOOL MAY EXSPLODE, POSSIBLY CAUSING INJURY. FITTINGS: Install a male plug on the tool which is free flowing and which will release air pressure from the tool when disconnected from the supply source.

  • Page 9: Nail Loading

    NAIL LOADING EYE PROTECTION which conforms to ANSI/ CE specifications and provides protection against flying particles both from the FRONT and SIDE should ALWAYS be worn by the operator and others in the work area when connecting to air supply, loading, operating or servicing this tool. Eye protection is required to guard against flying fasteners and debris, which could cause severe eye injury.

  • Page 10: Tool Operation

    TOOL OPERATION EYE PROTECTION which conforms to ANSI/ CE specifications and provides protection against flying particles both from the FRONT and SIDE should ALWAYS be worn by the operator and others in the work area when connecting to air supply, loading, operating or servicing this tool. Eye protection is required to guard against flying fasteners and debris, which could cause severe eye injury.

  • Page 11: Tool Operation Check

    TOOL OPERATION CHECK CAUTION: Remove all fasteners from tool before performing tool operation check. 1. CONTACT TRIP OPERATION: a. With finger off the trigger, press the contact trip against the work surface. THE TOOL MUST NOT CYCLE. b. Hold the tool off the work surface, and pull the trigger. THE TOOL MUST NOT CYCLE.

  • Page 12: Maintaining The Pneumatic Tool

    When using optional flangeless driver, see adjustment below. Be sure to use proper preparation and installation. Standard Length PN100(B)/PN100EPAL: 7.984” – 8.008” (202.8 – 203.4 mm) PN100CP: 7.921” – 7.945” (201.2 – 201.8 mm) PN130: 10.059” – 10.083” (255.5 – 256.1 mm)

This manual is also suitable for:

Pn100bPn100cpPn100-tsPn100palPn100epalPn130b ... Show all
