Everwin FS9240BC Operation And Maintenance Manual

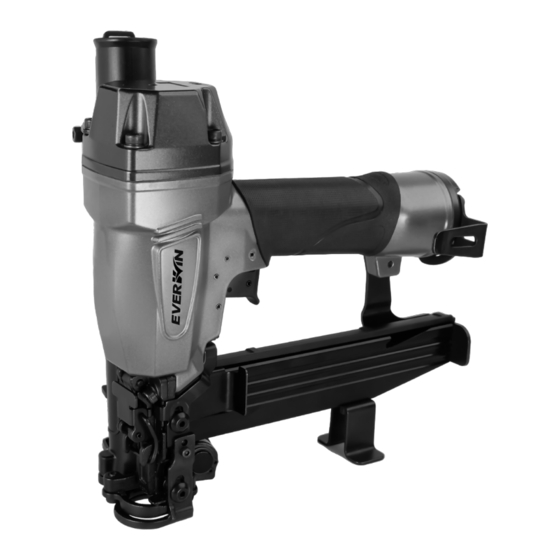

18ga. pneumatic cap stapler
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

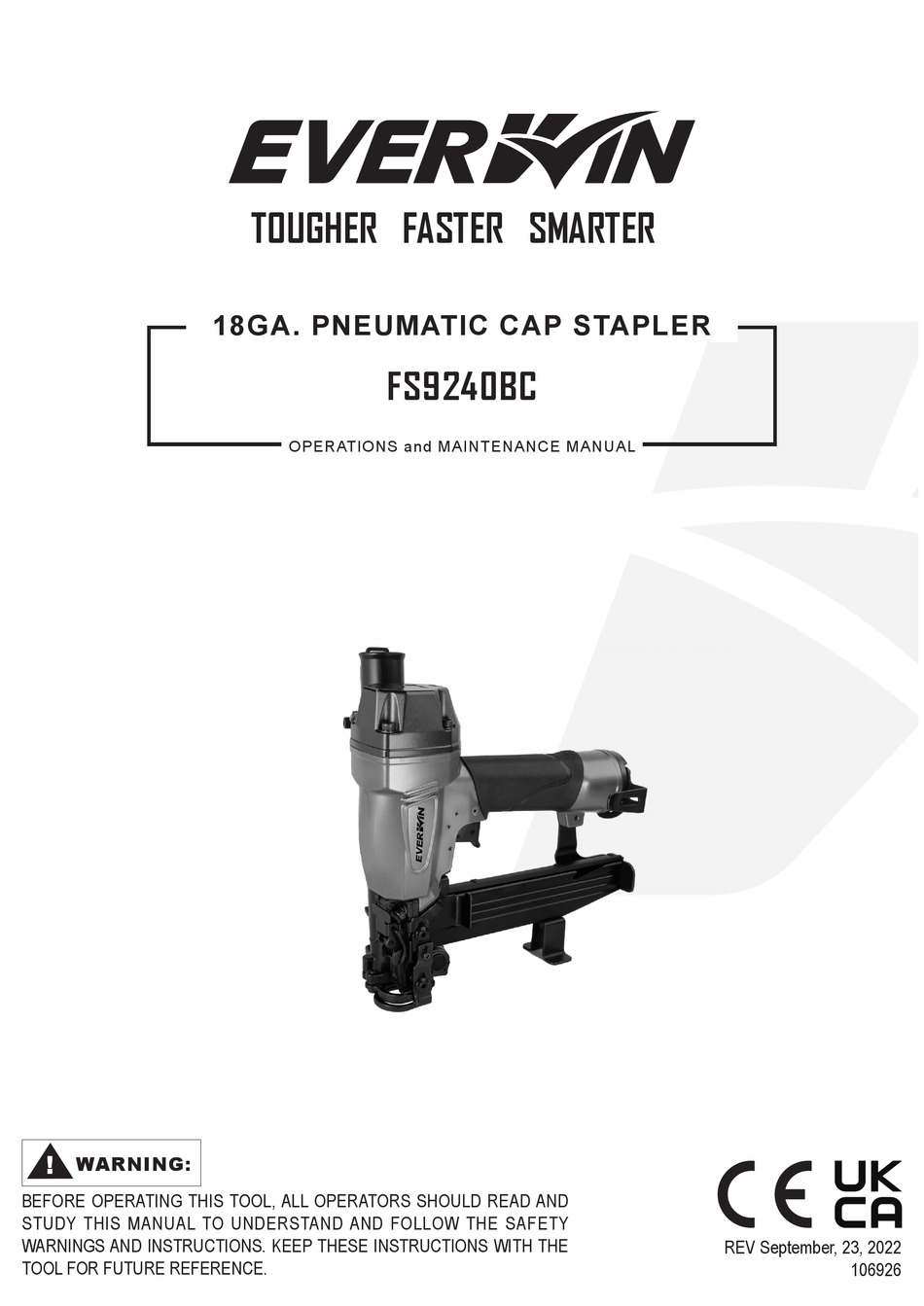

TOUGHER FASTER SMARTER
18GA. PNEUMATIC CAP STAPLER
FS9240BC
OPERATIONS and MAINTENANCE MANUAL
!
WARNING:
BEFORE OPERATING THIS TOOL, ALL OPERATORS SHOULD READ AND
STUDY THIS MANUAL TO UNDERSTAND AND FOLLOW THE SAFETY
WARNINGS AND INSTRUCTIONS. KEEP THESE INSTRUCTIONS WITH THE
REV September, 23, 2022
TOOL FOR FUTURE REFERENCE.
106926

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FS9240BC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Everwin FS9240BC

Summary of Contents for Everwin FS9240BC

  • Page 1 TOUGHER FASTER SMARTER 18GA. PNEUMATIC CAP STAPLER FS9240BC OPERATIONS and MAINTENANCE MANUAL WARNING: BEFORE OPERATING THIS TOOL, ALL OPERATORS SHOULD READ AND STUDY THIS MANUAL TO UNDERSTAND AND FOLLOW THE SAFETY WARNINGS AND INSTRUCTIONS. KEEP THESE INSTRUCTIONS WITH THE REV September, 23, 2022 TOOL FOR FUTURE REFERENCE.

  • Page 2: Table Of Contents

    NOTE Additional safety measures may be required because of your particular application of the tool. Contact your EVERWIN representative or distributor with any questions concerning the tool and its use.

  • Page 3: 1-Year Limited Warranty

    (as a gauge for the tool’s age), and photos/videos of the defect for test and evaluation to find root causes. EVERWIN’s analyst will judge the issuance of defective parts and will.

  • Page 4: Ce Declaration Of Conformity

    EVERWIN PNEUMATIC CORP. förklarar härmed att produkten överensstämmer med följande normer och direktiv 2006/42/EC och SS-EN ISO 11148-13:2018. SAMSVARSERKLÆRING / CE Deklaration NORSK EVERWIN PNEUMATIC CORP. erklærer herved att produktet er i samsvar med følgende normer og direktiv 2006/42 EC og NS- EN ISO 11148-13:2018. Todistus CE standardinmukaisuudesta FINSK EVERWIN PNEUMATIC CORP.

  • Page 5: Safety Instructions

    SAFETY INSTRUCTIONS TO AVOID SEVERE PERSONAL INJURY OR PROPERTY DAMAGE Before operating this tool, all operators should read and study this manual to understand and follow the safety warnings and instructions. Failure to follow warnings could result in death or serious injury. Keep these instructions with the tool for future reference.
  • Page 6 SAFETY INSTRUCTIONS FASTENER LOADING When loading the tool: 1.) Never place a hand or any part of body in the fastener discharge area of the tool; 2.) Never point the tool at anyone; 3.) Do not pull the trigger or depress the trip as accidental actuation may occur, causing injury.

  • Page 7: General Safety Instruction

    EVERWIN fasteners driving tools consist of: tool and fasteners. In the ．Keep bystanders away (when working in an area where there is a interests of operator and system safety, the tool and fasteners referred to likelihood of through traffic of people).
  • Page 8 EVERWIN PNEUMATIC CORP. ．Wear warm clothing when working in cold conditions, keep your hands ．Use only lubricants recommended by EVERWIN PNEUMATIC CORP. warm and dry. slippery surfaces caused by use of the tool and also trip hazards caused ．If you experience numbness, tingling, pain, or whitening of the skin in...

  • Page 9: Specifications And Technical Data

    0.89 liter/sec (1.56 cfm) of free air to operate at the rate of 60 nails per minute, at 6.2 bar (90 psi). NOISE A-weighted single-event sound power level LWA, 1s: FS9240BC-95.6 dBA. A-weighted single-event emission sound pressure level at work station LpA 1s,d: FS9240BC-85.2 dBA. These values are determined and documented in accordance to EN12549. VIBRATION FS9240BC-2.24 m/s2...

  • Page 10: Operation : Trigger Selection

    Air Inlet 1. Contact Trip (available system on : FS9240BC-CT) The common operating procedure on “Contact Trip” tools is for the operator to contact the workpiece to actuate the trip mechanism while keeping the trigger pulled, thus driving a fastener each time the workpiece is contacted. This will allow rapid fastener placement on many jobs, such as sheathing, decking, and pallet assembly.

  • Page 11: Operation : Air Supply And Connections

    OPERATION : AIR SUPPLY AND CONNECTIONS DO NOT USE OXYGEN, COMBUSTIBLE GASES, OR BOTTLED GASES AS A POWER SOURCE FOR THIS TOOL AS TOOL MAY EXPLODE, POSSIBLY CAUSING INJURY. FITTINGS Install a male plug on the tool which is free flowing and which will release air pressure from the tool when disconnected from the supply source.

  • Page 12: Operation : Lubrication

    OPERATION : LUBRICATION Frequent, but not excessive, lubrication is required for best performance. Air - tool oil added through the air line connection will lubricate the internal parts. Do not use detergent oil or additives as these lubricants will cause accelerated wear to the seals and bumpers in the tool, resulting in poor tool performance and frequent tool maintenance.

  • Page 13: Operation : Fastener Loading

    OPERATION : FASTENER LOADING EYE PROTECTION Which conforms to ANSI/ CE specifications and provides protection against flying particles both from the FRONT and SIDE should ALWAYS be worn by the operator and others in the work area when connecting to air supply, loading, operating, or servicing this tool. Eye protection is required to guard against flying fasteners and debris, which could cause severe eye injury.
  • Page 14 Simplified 3-Step Cap Loading (FS9240BC-CT / FS9240BC-ST) Pull Pusher Upwards, Install Caps Remove Collation Ring Surpassing the Top Cap...

  • Page 15: Operation : Tool Operation System

    There are three available systems in these tools : 1. Contact Trip Operation (available system on : FS9240BC-CT) The CONTACT TRIP MODEL tool contains a contact trip that operates in conjunction with the trigger to drive a fastener. To operate the tool in this manner, hold the tool with the contact trip pointing towards but not touching the work surface. Pull the trigger and then tap the contact trip against the work surface using a bouncing motion.

  • Page 16: Operation : Tool Operation Check

    OPERATION : TOOL OPERATION CHECK CAUTION Remove all fasteners from tool before performing tool operation check. 1. Contact Trip Operation 2. Sequential Trip Operation a. With finger off the trigger, press the contact trip against a. Press the contact trip against the work surface, without the work surface.

  • Page 17: Maintaining The Pneumatic Tool

    MAINTAINING THE PNEUMATIC TOOL WARNING When working on pneumatic tools, note the warnings in this manual and use extra care evaluating tools with problems. Disconnect the air supply and empty the magazine when inspecting or maintaining the tool. REPLACEMENT PARTS Use only genuine parts from the manufacturer or distributor.

  • Page 18: Troubleshooting / Repairs

    WARNING Always disconnect air supply before clearing a jammed fastener. If a jam occurs on the FS9240BC-CT, FS9240BC-ST, follow this procedure: 1. Disconnect the tool from the air supply. 2. Pull pusher into lock position or depress latch to pull magazine cover to open, remove remaining staples from the magazine.
