FCN90 ( B ) / FCN90LB / SCN90L / PN90
OPERATIONS and MAINTENANCE MANUAL

BEFORE OPERATING THIS TOOL, ALL OPERATORS SHOULD READ AND STUDY

THIS MANUAL TO UNDERSTAND AND FOLLOW THE SAFETY WARNINGS AND
INSTRUCTIONS. KEEP THESE INSTRUCTIONS WITH THE TOOL FOR FUTURE
REFERENCE.

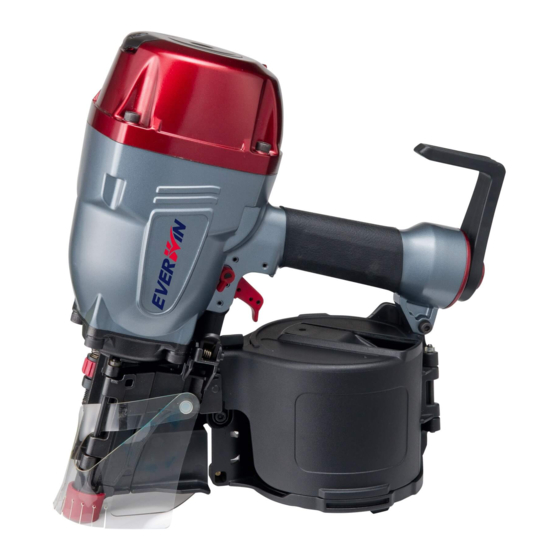

Pneumatic Coil Nailer
CE DECLARATION OF CONFORMITY
Everwin Pneumatic Corp.

105577
20'/8/5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FCN90B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Everwin FCN90B

Summary of Contents for Everwin FCN90B

  • Page 1   BEFORE OPERATING THIS TOOL, ALL OPERATORS SHOULD READ AND STUDY   THIS MANUAL TO UNDERSTAND AND FOLLOW THE SAFETY WARNINGS AND INSTRUCTIONS. KEEP THESE INSTRUCTIONS WITH THE TOOL FOR FUTURE REFERENCE.       105577 Everwin Pneumatic Corp. 20’/8/5...

  • Page 2: Table Of Contents

    NOTE: Additional safety measures may be required because of your particular application of the tool. Contact your EVERWIN representative or distributor with any questions concerning the tool and its use. Everwin Pneumatic Corp., Taichung City, Taiwan 41353.

  • Page 3: 1-Year Limited Warranty

    (as a gauge for the tool’s age) and photos/videos of the defect for test and evaluation to find root causes. EVERWIN’s analyst will judge the issuance of defective parts and will replace at no charge if evaluation results show that the root cause is defect in material and/or workmanship.

  • Page 4: Ce Declaration Of Conformity

    Europäischen Richtlinien 2006/42/EC und den Europäischen Norm EN 792-13. CE Déclaration de conformité FRANCAIS EVERWIN PNEUMATIC CORP. déclare et prend sur soi toute la responsabilité de cette déclaration, que le produit est en conformité avec les Directives Européennes 2006/42/EC et avec la norme harmonisée EN 792-13. CE konformiteitsverklaring NEDERLANDS EVERWIN PNEUMATIC CORP.

  • Page 5: Safety Instructions

    SAFETY INSTRUCTIONS   TO AVOID SEVERE PERSONAL INJURY OR PROPERTY DAMAGE   BEFORE OPERATING THIS TOOL, ALL OPERATORS SHOULD READ AND STUDY THIS MANUAL TO UNDERSTAND AND FOLLOW THE SAFETY WARNINGS AND INSTRUCTIONS. FAILURE TO FOLLOW WARNINGS COULD RESULT IN DEATH OR SERIOUS INJURY. KEEP THESE INSTRUCTIONS WITH THE TOOL FOR FUTURE REFERENCE.

  • Page 6: Specifications And Technical Data

    SPECIFICATIONS AND TECHNICAL DATA SPECIFICATIONS SCN90L MODEL FCN90(B) FCN90L(B) PN90 HEIGHT 13.2” (335mm) 14.3” (364mm) 14.3” (364mm) 13.8” (350mm) WIDTH 5.2" (131 mm) 5.1” (130mm) 5.1” (130mm) 5.2” (131mm) LENGTH 11.9" (302 mm) 12.2” (311mm) 12.2” (311mm) 11.9” (302mm) WEIGHT 7.7 lbs.

  • Page 7: Operation

    Trigger is released and tool can cycle. (see detailed illustration hereunder) CONTACT TRIP: IDENTIFIED BY BLACK TRIGGER Available on the FCN90B, FCN90L, FCN90LB, SCN90L & PN90 The common operating procedure on “Contact Trip” tools is for the operator to contact the work to actuate the trip mechanism while keeping the trigger pulled, thus driving a fastener each time the work is contacted.

  • Page 8: Air Consumption, Regulators, Supply Source

      SEQUENTIAL TRIP: IDENTIFIED BY NICKEL PLATED TRIGGER Available on the FCN90B, FCN90L, FCN90LB, SCN90L & PN90 The Sequential Trip requires the operator to hold the tool against the work before pulling the trigger. This makes accurate fastener placement easier, for instance on framing, toe nailing and crating applications. The Sequential Trip allows exact fastener location without the possibility of driving a second fastener on recoil, as described under “Contact Trip”.

  • Page 9: Lubrication

    LUBRICATION Frequent, but not excessive, lubrication is required for best performance. A i r - t o o l o il added through the air line connection will lubricate the internal parts. Do not use detergent oil or additives as these lubricants will cause accelerated wear to the seals and bumpers in the tool, resulting in poor tool performance and frequent tool maintenance.

  • Page 10: Tool Operation

    LOADING THE TOOL: Open the magazine: Pull down door latch and swing door open. Open the magazine. Nail length adjustment: The nail support can be moved up and down to four settings. T o change setting pull up on the post and twist to t h e c orrect step.
  • Page 11 There are three available systems on the FCN90B, FCN90L, FCN90LB, SCN90L & PN90: 1. CONTACT TRIP OPERATION (RAPID FIRE):   To operate the tool in this manner, hold the tool with the contact trip pointing towards but not touching the work surface.
  • Page 12 TRIGGER LOCK MECHANISM (FCN90) The tool is equipped with a Trigger Lock mechanism. Push and rotate the Trigger Lock Dial to the trigger free position before driving nails. DIRECTIONAL EXHAUST COVER (FCN90LB & PN90) ALWAYS disconnect air supply before rotating the exhaust cover by hand.

  • Page 13: Tool Operation Check

    TOOL OPERATION CHECK CAUTION: Remove all fasteners from tool before performing tool operation check. 1. CONTACT TRIP OPERATION: a. With finger off the trigger, press the contact trip against the work surface. THE TOOL MUST NOT CYCLE. b. Hold the tool off the work surface, and pull the trigger. THE TOOL MUST NOT CYCLE.

  • Page 14: Maintaining The Pneumatic Tool

    When working on air tools, note the warnings in this manual and use extra care evaluating problem tools. Disconnect air supply and empty the magazine when inspecting or maintaining the tool. REPLACEMENT PARTS: Use only genuine parts from the manufacturer or distributor. Do not use modified parts or parts which will not give equivalent performance to the original equipment.
