Kichler Lighting Prin 59157OZ Installation Instructions

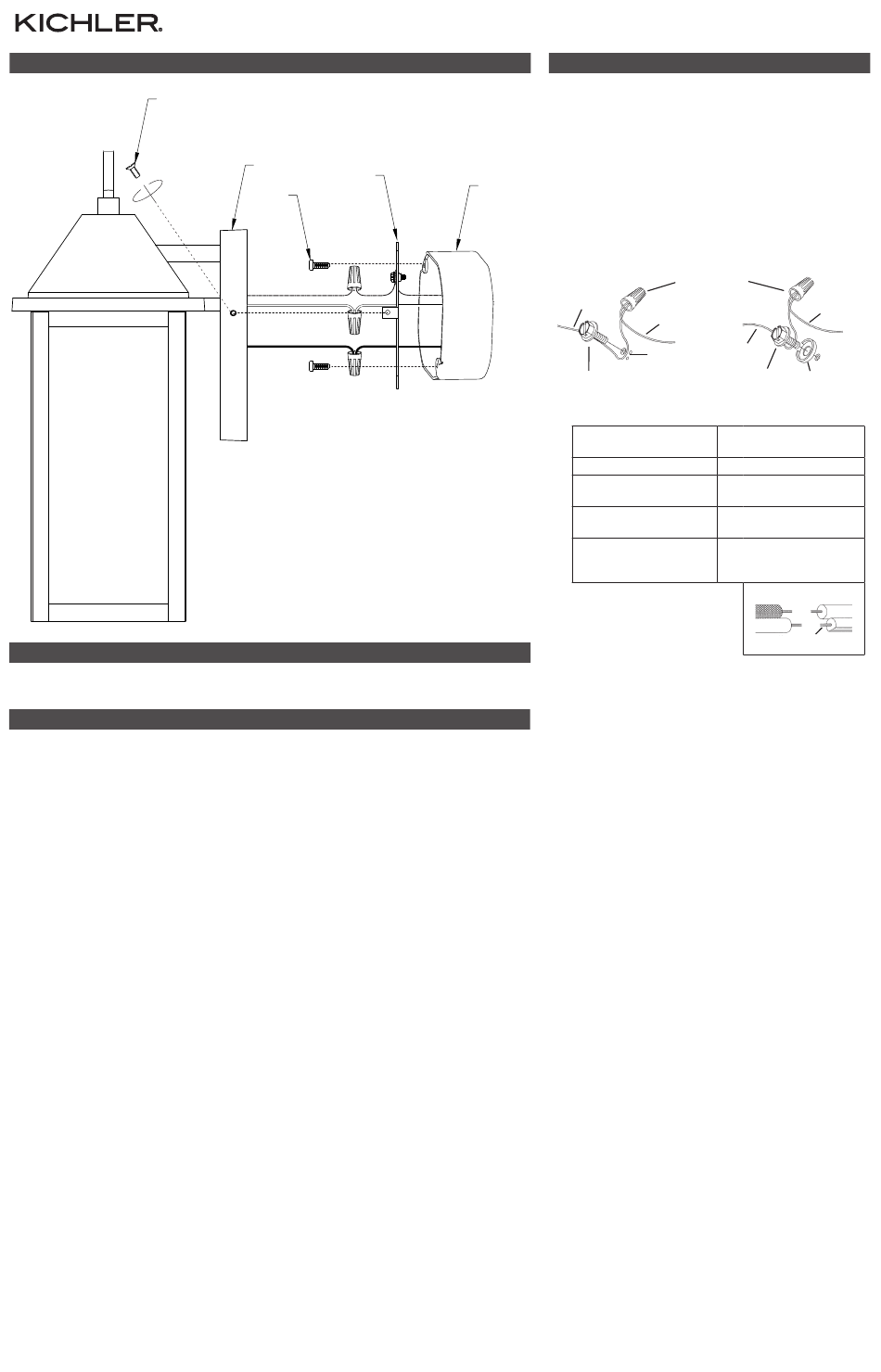

FIXTURE DIAGRAM
D
PARTS LIST
[A] Mounting Strap
[B] Outlet Box (not supplied)
CAUTIONS
CAUTION – RISK OF SHOCK:
Disconnect Power at the main circuit breaker panel or main fusebox before starting and during
the installation.
WARNING:
1. This fixture is intended for installation in accordance with the National Electrical Code (NEC)
and all local code specifications. If you are not familiar with code requirements, installation by a
certified electrician is recommended. Failure to adhere to these codes and instructions may result
in serious injury and/or property damage and will void the warranty.
INSTRUCTIONS FOR MOUNTING FIXTURE OUTDOORS
AND/OR IN WET LOCATIONS:
1) Mounting surface should be clean, dry, flat and 1/4" larger than the canopy on all sides. Any gaps
between the mounting surface and canopy exceeding 3/16" should be corrected as required.
2) With silicone caulking compound, caulk completely around where back of canopy meets the wall
surface to prevent water from seeping into outlet box.
CLEANING:
• Always be certain that electric current is turned off before cleaning.
• Only a soft damp cloth should be used. Harsh cleaning products may damage the finish.
REV 6-JAN-2025
E
C
[C] Strap Mounting Screw (2)
[D] Mounting Screw (2)
© 2025 Kichler Lighting LLC. All rights reserved.
For warranty information please visit: kichler.com/warranty
A
B
[E] Canopy
We're here to help
INSTALLATION INSTRUCTIONS
1. Attach mounting strap[A] to outlet box[B] using the strap mounting
screws[C]. Mounting strap can be adjusted to suit position of fixture.
NOTE: Mounting plate should be installed with the flat side of the
mounting plate against the wall, and with the holes for the mounting
screws[D] at the 9 and 3 o'clock position as shown.
2. Grounding instructions: (See Illus. a or b).
a. On fixtures where mounting strap is provided with a hole and two
raised dimples, wrap ground wire from outlet box around green
ground screw, and thread into hole.
b. On fixtures where a cupped washer is provided, attach ground wire
from outlet box under cupped washer and green ground screw, and
thread into mounting strap.
If fixture is provided with ground wire, connect fixture ground wire to
outlet box ground wire with wire connector after following the above
steps. Never connect ground wire to black or white power supply wires.
a
WIRE CONNECTOR
OUTLET BOX
GROUND
FIXTURE
GROUND
OUTLET BOX
DIMPLES
GROUND
GREEN GROUND
SCREW
3. Make wire connections. Reference chart below for correct connections
and wire accordingly.
Connect Black or Red
Supply Wire to:
Black
*Parallel cord (round &
smooth)
Clear, Brown, Gold or Black
without Tracer
Insulated wire (other
than green) with copper
conductor
*Note: When parallel wire (SPT
1 & SPT 2) are used. The neutral
wire is square shaped or ridged
and the other wire will be round
in shape or smooth (See illus.)
4. NOTE: Fixture should be installed with the socket facing DOWN.
Push canopy[E] to wall, carefully aligning the mounting screw holes in left
and right side of mounting strap with the mounting screw holes in left and
right side of canopy.
NOTE: Make sure all wires are inside canopy and do not get pinched
between mounting strap and canopy or wall and canopy of fixture.
5. Screw two (2) mounting screws[D] into holes in canopy and mounting
strap to attach fixture to wall. One on the left side and one on the right
side of canopy. Tighten to secure.
6. Insert recommended bulb(s) (not included).
866-558-5706
Hrs: M-F 9am to 5pm EST
b
FIXTURE
GROUND
CUPPED
GREEN GROUND
WASHER
SCREW
Connect White Supply
Wire to:
White
*Parallel cord (square &
ridged)
Clear, Brown, Gold or Black
with Tracer
Insulated wire (other
than green) with silver
conductor
Neutral Wire
IS-59157-US
