Kichler Lighting Harmont 59093OZ Manual

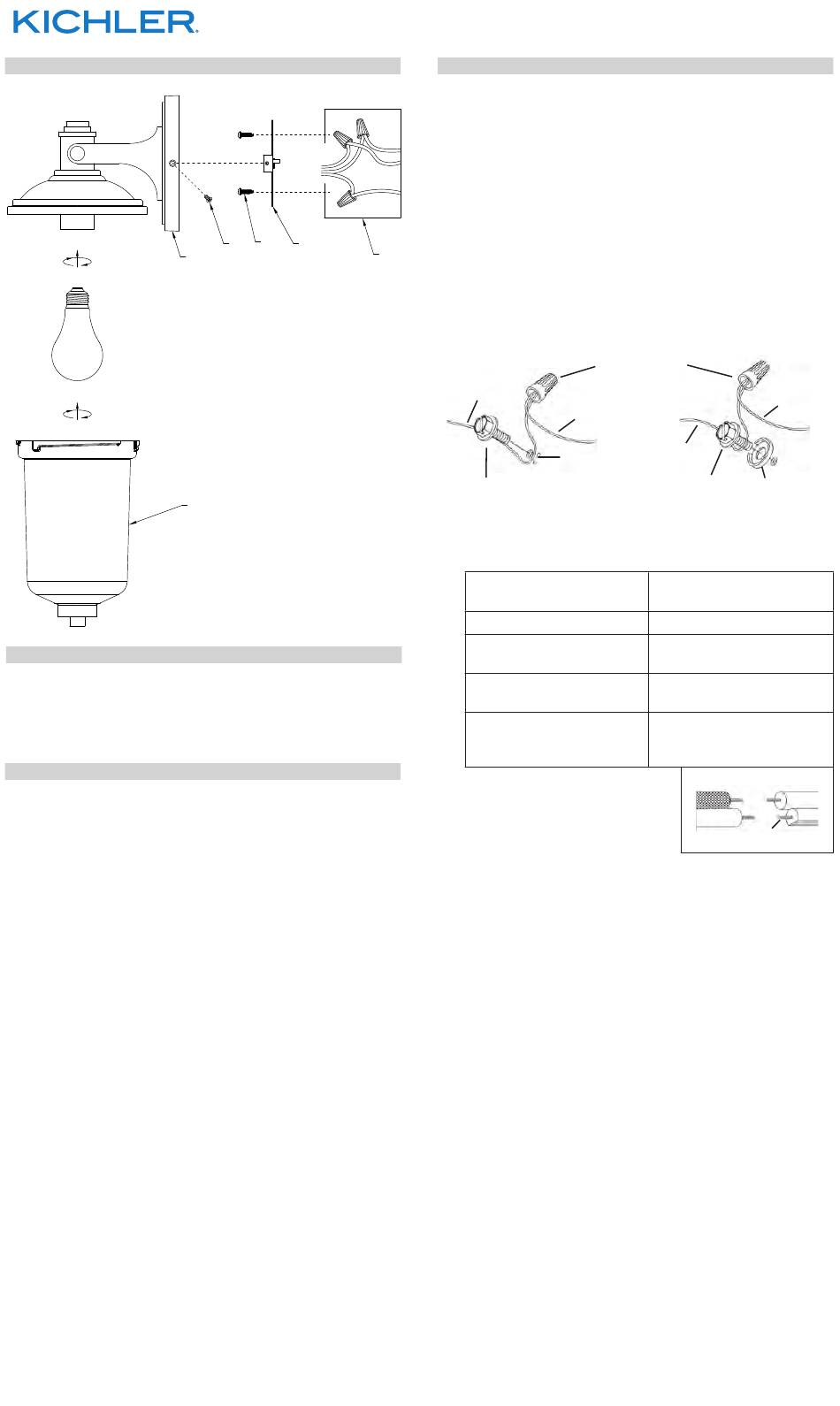

Fixture Diagram
Parts List
[A] Mounting [D] Canopy
Strap [E] Strap
[B] Outlet Box
[C] Mounting
Screws
Cautions
CAUTION – RISK OF SHOCK –
Disconnect Power at the main circuit breaker panel or main
fusebox before starting and during the installation.
WARNING:
This fixture is intended for installation in accordance
with the National Electrical Code (NEC) and all local code
specifications. If you are not familiar with code requirements,
installation by a certified electrician is recommended.
INSTRUCTIONS FOR MOUNTING FIXTURE OUTDOORS
AND/OR IN WET LOCATIONS:
1) Mounting surface should be clean, dry, flat and 1/4"
larger than the canopy on all sides. Any gaps between the
mounting surface and canopy exceeding 3/16" should be
corrected as required.
2) With silicone caulking compound, caulk completely around
where back of canopy meets the wall surface to prevent
water from seeping into outlet box.
REV 17-NOV-2020
E
C A
D
F
[F] Glass
Mounting
Screws
For warranty information please visit: kichler.com/warranty
Installation Instructions
1) With the tabs of the mounting strap[A] in the 9 and 3
o'clock position, attach the mounting strap to the outlet
box[B] using the strap mounting screws[E].
2) Grounding instructions: (See Illus. a or b).
a) On fixtures where mounting strap is provided with a
hole and two raised dimples, wrap ground wire from
outlet box around green ground screw, and thread
into hole.
b) On fixtures where a cupped washer is provided,
attach ground wire from outlet box under cupped
washer and green ground screw, and thread into
B
mounting strap.
If fixture is provided with ground wire, connect fixture
ground wire to outlet box ground wire with wire
connector after following the above steps. Never connect
ground wire to black or white power supply wires.
a
OUTLET BOX
GROUND
GREEN GROUND
SCREW
3) Make wire connections. Reference chart below for
correct connections and wire accordingly.
Connect Black or Red
Supply Wire to:
Black
*Parallel cord (round &
smooth)
Clear, Brown, Gold or
Black without Tracer
Insulated wire (other
than green) with copper
conductor
*Note: When parallel wire (SPT
1 & SPT 2) are used. The neutral
wire is square shaped or ridged
and the other wire will be round
in shape or smooth (See illus.)
4) Push fixture to wall over the tabs of the mounting strap,
carefully aligning holes in tabs of mounting strap with
holes in canopy[D]. Be sure not to pinch wires between
wall and canopy of fixture.
5) Screw the two (2) mounting screws[C] into the canopy
and mounting strap tabs to secure fixture to wall. Tighten
to secure.
6) Insert recommended bulb (not supplied).
7) Carefully lift glass[F] into fixture and gently twist in the
clockwise direction until locked into place. DO NOT OVER
TIGHTEN.
866-558-5706
We're here to help
Hrs: M-F 9am to 5pm EST
WIRE CONNECTOR
FIXTURE
GROUND
OUTLET BOX
DIMPLES
GROUND
GREEN GROUND
SCREW
Connect White Supply
Wire to:
White
*Parallel cord (square &
ridged)
Clear, Brown, Gold or Black
with Tracer
Insulated wire (other
than green) with silver
conductor
Neutral Wire
b
FIXTURE
GROUND
CUPPED
WASHER
IS-59093-US
