Kichler Lighting 59009WZC Quick Start Manual

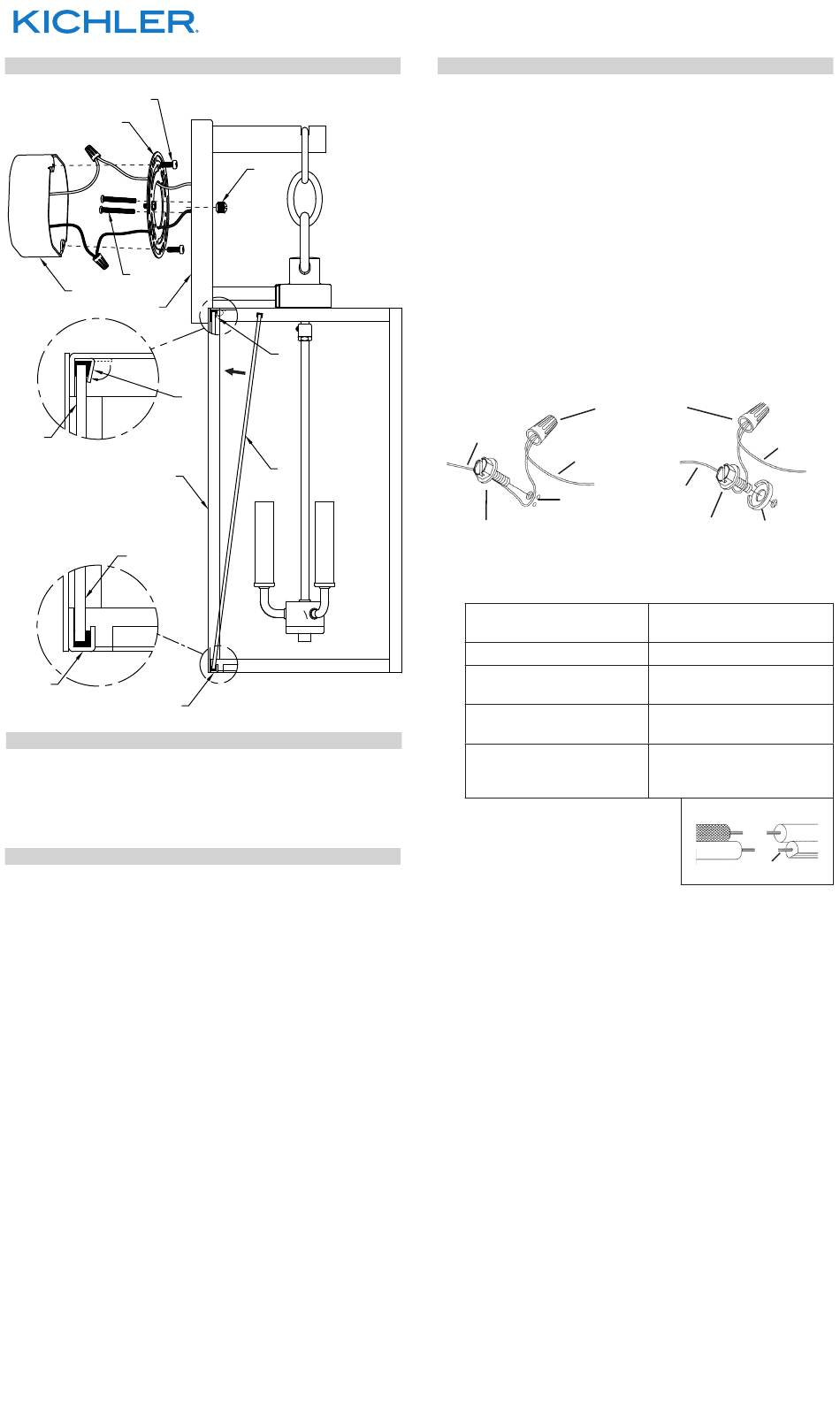

Fixture Diagram
E
A
C
B
D
G
Fig. 2
H
G
I
Fig. 1
Parts List
[A] Mounting [D] Canopy
Strap [E] Strap
[B] Outlet Box
[C] Mounting
Screws
Cautions
CAUTION – RISK OF SHOCK –
Disconnect Power at the main circuit breaker panel or main
fusebox before starting and during the installation.
WARNING:
This fixture is intended for installation in accordance
with the National Electrical Code (NEC) and all local code
specifications. If you are not familiar with code requirements,
installation by a certified electrician is recommended.
INSTRUCTIONS FOR MOUNTING FIXTURE OUTDOORS
AND/OR IN WET LOCATIONS:
1) Mounting surface should be clean, dry, flat and 1/4"
larger than the canopy on all sides. Any gaps between the
mounting surface and canopy exceeding 3/16" should be
corrected as required.
2) With silicone caulking compound, caulk completely around
where back of canopy meets the wall surface to prevent
water from seeping into outlet box.
CLEANING:
• Always be certain that electric current is turned off before
cleaning.
• Only a soft damp cloth should be used. Harsh cleaning
products may damage the finish.
REV-15-FEB-2023
F
J
J
G
I
[F] Ball Knobs
[G] Glass
Mounting [H] Frame
Screws [I] Channel
[J] Tabs
For warranty information please visit: kichler.com/warranty
We're here to help
Installation Instructions
1) Find the appropriate threaded holes on mounting
strap[A] that align with hole distance in canopy[D].
Thread mounting screws[C] into threaded holes starting
from outlet box[B] side.
2) Attach mounting strap[A] to outlet box[B] using the
strap mounting screws[E].
3) Grounding instructions: (See Illus. a or b).
a) On fixtures where mounting strap is provided with a
hole and two raised dimples, wrap ground wire from
outlet box around green ground screw, and thread
into hole.
b) On fixtures where a cupped washer is provided,
attach ground wire from outlet box under cupped
washer and green ground screw, and thread into
mounting strap.
If fixture is provided with ground wire, connect fixture
ground wire to outlet box ground wire with wire
connector after following the above steps. Never connect
ground wire to black or white power supply wires.
a
WIRE CONNECTOR
OUTLET BOX
GROUND
FIXTURE
GROUND
DIMPLES
GREEN GROUND
SCREW
4) Make wire connections. Reference chart below for
correct connections and wire accordingly.
Connect Black or Red
Supply Wire to:
Black
*Parallel cord (round &
smooth)
Clear, Brown, Gold or
Black without Tracer
Insulated wire (other
than green) with copper
conductor
*Note: When parallel wire (SPT
1 & SPT 2) are used. The neutral
wire is square shaped or ridged
and the other wire will be round
in shape or smooth (See illus.)
5) Push fixture to wall carefully aligning the mounting
screws with holes in canopy.
NOTE: Make sure all wires are inside canopy and do not
get pinched between wall and canopy of fixture.
6) While holding canopy in place, screw on the two (2) ball
knobs[F] to the canopy[D]. Tighten to secure.
7) Carefully raise glass[G] up through the bottom of the
fixture, seat glass in channel[I] (Fig. 1), and tilt glass
against frame[H]. While holding glass in place, bend
tabs[J] down against glass (Fig. 2) to secure.
DO NOT REMOVE FOAM CORNERS FROM GLASS.
Repeat for remaining glass.
8) Insert recommended bulb(s) (not supplied).
866-558-5706
Hrs: M-F 9am to 5pm EST
b
FIXTURE
GROUND
OUTLET BOX
GROUND
CUPPED
GREEN GROUND
WASHER
SCREW
Connect White Supply
Wire to:
White
*Parallel cord (square &
ridged)
Clear, Brown, Gold or Black
with Tracer
Insulated wire (other
than green) with silver
conductor
Neutral Wire
IS-59009-US
