Kichler Lighting Lombard 59101BK Manual

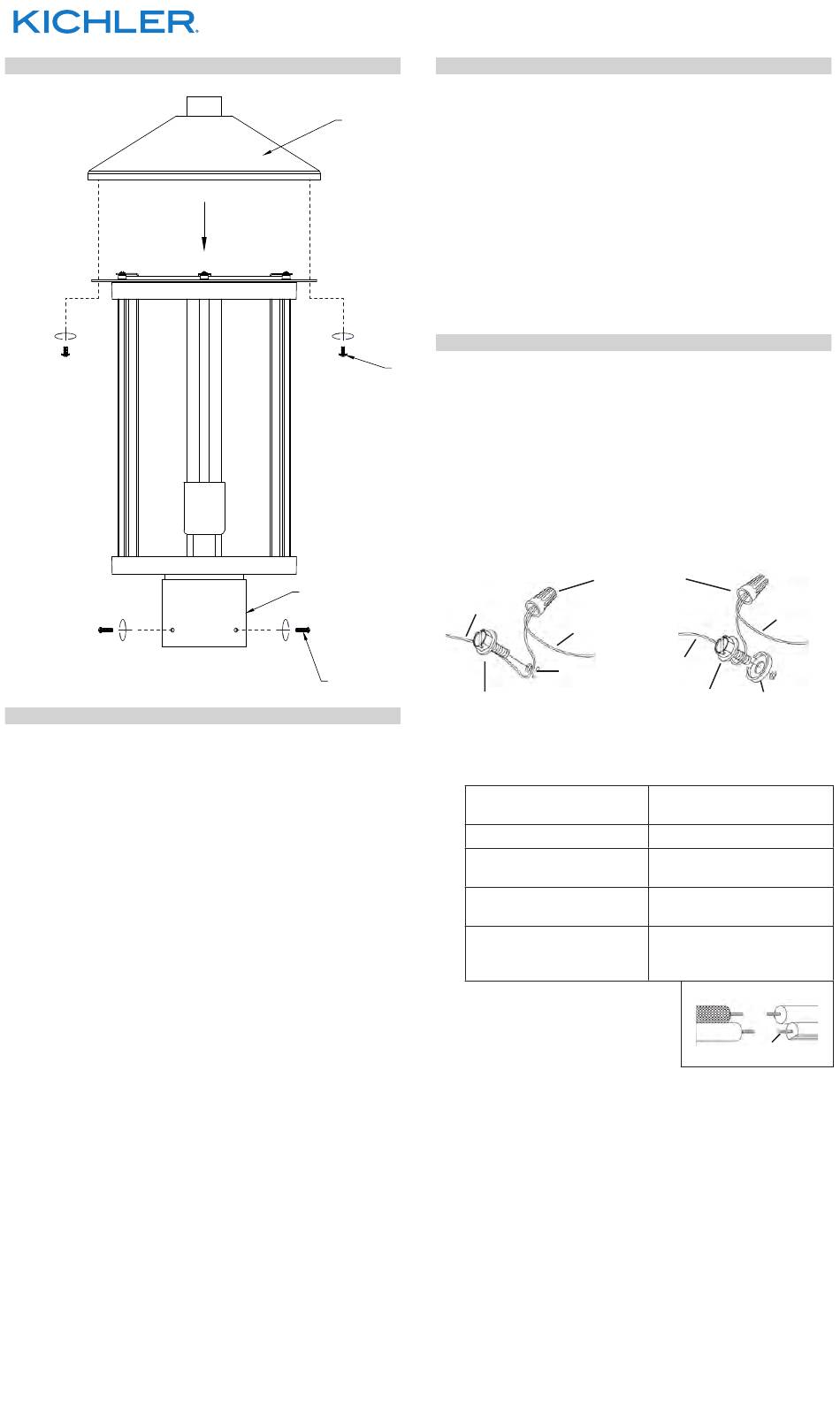

Fixture Diagram
Parts List
[A] Screws (3) [C] Fixture
[B] Top
REV 02-FEB-2021
B
D
C
A
[D] Top Mounting
Screws (2)
For warranty information please visit: kichler.com/warranty
We're here to help
Cautions
CAUTION – RISK OF SHOCK –
Disconnect Power at the main circuit breaker panel or main
fusebox before starting and during the installation.
WARNING:
This fixture is intended for installation in accordance
with the National Electrical Code (NEC) and all local code
specifications. If you are not familiar with code requirements,
installation by a certified electrician is recommended.
CLEANING:
• Always be certain that electric current is turned off before
cleaning.
• Only a soft damp cloth should be used. Harsh cleaning
products may damage the finish.
Installation Instructions
1) Slip fixture[C] over post and mark position of mounting
holes in post.
NOTE: When marking position of mounting holes in
post, be sure to orient the fixture facing the desired final
installation direction.
2) Remove fixture from post.
3) Drill 3/16" dia holes in post at positions marked.
4) Grounding instructions: (See Illus. a or b).
If fixture is provided with ground wire, connect fixture
ground wire to outlet box ground wire with wire
connector after following the above steps. Never connect
ground wire to black or white power supply wires.
a
WIRE CONNECTOR
OUTLET BOX
GROUND
FIXTURE
GROUND
DIMPLES
GREEN GROUND
SCREW
5) Make wire connection. Reference chart below for correct
connections and wire accordingly.
Connect Black or Red
Supply Wire to:
Black
*Parallel cord (round &
smooth)
Clear, Brown, Gold or
Black without Tracer
Insulated wire (other
than green) with copper
conductor
*Note: When parallel wire (SPT
1 & SPT 2) are used. The neutral
wire is square shaped or ridged
and the other wire will be round
in shape or smooth (See illus.)
6) Slip fixture[C] over post and secure in place using three
(3) provided screws[A]. Screws should slip into holes
drilled in post.
7) Insert recommended bulb (Not supplied).
8) Place the top[B] onto the fixture as shown and secure in
place using two (2) top mounting screws[D] by threading
up into the top as shown.
866-558-5706
Hrs: M-F 9am to 5pm EST
b
FIXTURE
GROUND
OUTLET BOX
GROUND
CUPPED
GREEN GROUND
WASHER
SCREW
Connect White Supply
Wire to:
White
*Parallel cord (square &
ridged)
Clear, Brown, Gold or Black
with Tracer
Insulated wire (other
than green) with silver
conductor
Neutral Wire
IS-59101-US
