Operating instructions
MVVS 116 IRS No: 3010
Version 1.7
Before using the engine, please read these instructions carefully.

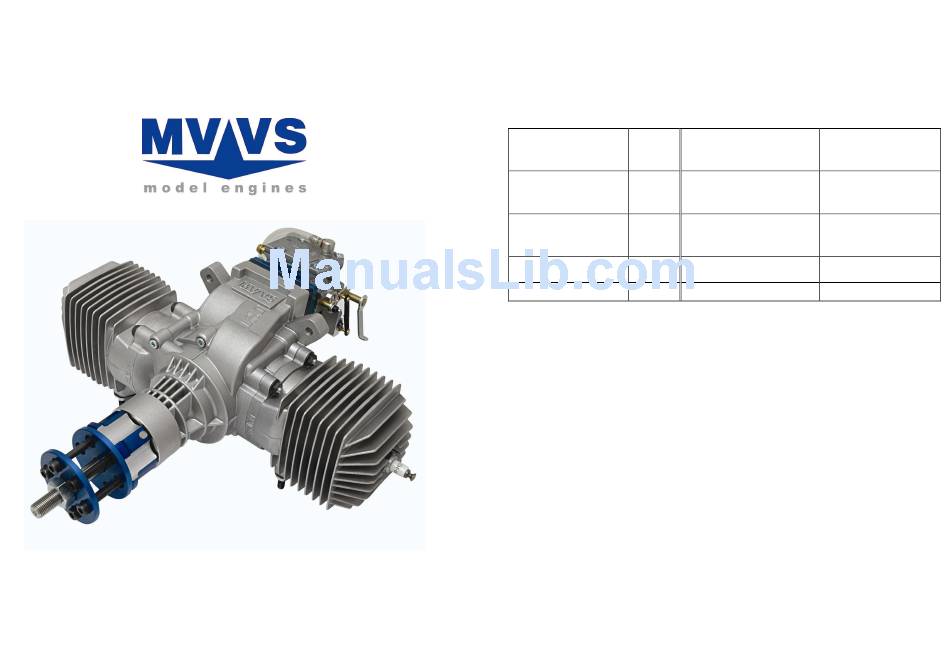

Congratulations on choosing the gas engine MVVS 116cc.
MVVS 116cc has been designed and manufactured for propeller-powered radio-controlled
model planes. It is able to meet all of your expectations of an acrobatic racing engine.

Technical specifications

Maximum power output **
Bore
42 mm
Silencer INT 58.01
+MVVS adaptor
Maximum torque **
Stroke
42 mm
Silencer INT 58.01
+MVVS adaptor
Weight of complete
engine without
3100 g
ignition*
Weight of ignition unit
270 g
Lubrication
RpM range
* Some manufacturers state the weight of incomplete engines. The value in the table above
stands for the weight of a complete engine, including the spark plug, carburetor, drive washer
and prop screws.
** Power output varies with the exhaust used. The value given in the table stands for the
maximum available power output.

Safety precautions

1)
Never use the engine for any manned vehicles.
2)
When operating model planes, always follow the rules and laws in effect in your country.
3)
The manufacturer declines all responsibility for all damages arising from the operation of
models and other appliances driven by MVVS 116cc engine.
4)
Use always original spare parts.
5)
Never tamper with the engine construction.
6)
Before each flight check that all the propeller screws are tightened up and in good
condition. If you use a spinner, check that it is tightened up, too. When mounting the
spinner always follow the assembly instructions.
7)
Periodically check that the engine is firmly fixed to the engine mounts. Never start a loose
engine!
8)
Always use a balanced propeller! Always replace the propeller when damaged!
9)
Make sure that no part of your body intersects the plane of the spinning propeller.
10) Always wear close-fitting, well-fastened clothes when starting or operating the running
engine. Never wear loosely hanging clothes (tie, scarf, etc.).
14 HP / 6400 RpM
11 HP / 6000 RpM
15 N/m / 6100 RpM
12.7 N/m / 5600 RpM
Unleaded 95-octane
fuel
Oil with petrol in
mixture 1:40
1000 – 7500 RpM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 116-BOXER IRS - V1.7 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for MVVS 116-BOXER IRS - V1.7

  • Page 1 Operating instructions Congratulations on choosing the gas engine MVVS 116cc. MVVS 116cc has been designed and manufactured for propeller-powered radio-controlled model planes. It is able to meet all of your expectations of an acrobatic racing engine. MVVS 116 IRS No: 3010...
  • Page 2 14) Fuel is combustible and therefore must be kept in an enclosed container at a safe distance For running the engine in, please use MVVS Racing 2T oil that comes with the engine. Mix it from the engine when it is running.
  • Page 3 Carburetor adjustment Step I - Accelerate to 2/3 of the throttle range within approx. 1 sec (faster acceleration). Repeat three Carburetor is adjusted before you buy it. It is not usually needed to change this setting (always times – if the engine accelerates quickly and without a hiccup go to Step III. If acceleration is apply if used recommended exhaust system and propeller).
  • Page 4 Starting and running a new engine in Problem guide Before you first start the engine, screw the plug in and tighten it up. Follow the instructions on The engine would not start: the box of the spark plug. Make sure that the plug socket is fitted in place and fastened down properly;...
  • Page 5 Notes: Spare parts list...
  • Page 6 Warranty The MVVS gas engines come with a three-year guarantee against defects in workmanship and materials. Only original buyers of the engines are eligible warranty claimants. The warranty cannot be transferred with a change in ownership. This guarantee does not cover:...
