MVVS 58 IRS - V1.2 Operating Instructions Manual

Operating instructions
MVVS 58 IRS / LC #3002
Version 1.2
Before using the engine, please read these instructions carefully.

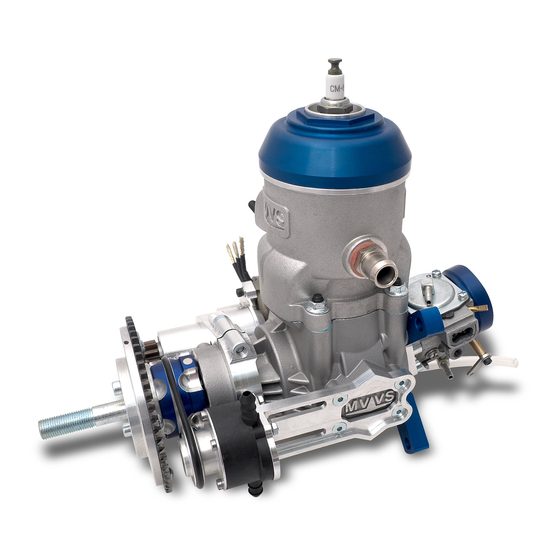

Congratulations on choosing the gas engine MVVS 58 liquid cooled (LC).
MVVS 58 LC has been designed and manufactured for propeller-powered radio-controlled model planes
especially for those where is air cooling complicated.
Technical specifications
Bore 42 mm
Stroke 42 mm
Weight of complete
1830 g
engine without ignition *
Weight of ignition unit 165 g
* Some manufacturers state the weight of incomplete engines. The value in the table above stands for the
weight of a completely assembled engine, including the spark plug, carburetor, drive washer and prop
screws.
** Power output varies with the exhaust used. The value given in the table stands for the maximum
available power output.
Safety precautions
1) Never use the engine for any manned vehicles.
2) When operating model planes, always follow the rules and laws in effect in your country.
3) The manufacturer declines all responsibility for all damages arising from the operation of models and
other appliances droved by MVVS 58 engine.
4) Always use original spare parts.
5) Never tamper with the engine construction.
6) Before each flight check that all the propeller screws are tightened up and in good condition. If you
use a spinner, check that it is tightened up, too. When mounting the spinner always follow the
assembly instructions.
7) Periodically check that the engine is firmly fixed to the engine mounts. Never start a loose engine!
8) Always use a balanced propeller! Always replace the propeller when damaged!
9) Make sure that no part of your body intersects the plane of the spinning propeller.
10) Always wear close-fitting, well-fastened clothes when starting or operating the running engine. Never
wear loosely hanging clothes (ties, scarf, etc.).
11) Never try to stop the engine by any part of your body.
12) Always stop the engine either by turning off the ignition switch or by completely closing the
carburetor throttle valve.
13) Before starting the engine make sure that the model is safely fixed in place and cannot start moving.
14) Fuel is combustible and therefore must be kept in an enclosed container at a safe distance from the
engine when it is running.
15) When preparing fuel carefully follow the manufacturer's or dealer's instructions.
16) Small objects must be kept at a safe distance from the engine when it is running. Never throw any
objects towards the spinning propeller.
17) Be careful in choosing the location where you wish to start the engine. Avoid dusty or sandy areas.
18) Start the engine in well-ventilated areas only. Never start the engine indoors.
19) When starting the engine make sure that bystanders, especially children, are at a safe distance of at
least 10 m.
20) The engine power output makes it possible to fly big models. Mal-operation of such models may
cause serious damage. Start using the MVVS 58 in model planes only after you have mastered
operating smaller models.
Maximum power output** 8,5 HP / 6950 RpM
Maximální torque** 8,8 N/m / 6600 RpM
Unleaded fuel
Fuel
95 octane
Oil with petrol in
Lubrication
mixture 1:40
RpM range 1000 – 7500 RpM
