MVVS 3.5-1200 - V1.8 User Manual

Warranty Information

The MVVS Company gives 36-month warranty applying to manufacture and material defects of the electric
motors.
Warranty does not apply to:
- Damages due to an accident.
- Damages due to unprofessional handling or disassembling the product.
- Damages due to use of an unbalanced or damaged propeller.
- Damages due to usage of unoriginal spare parts or accessories.
- Damages due to intaking foreign objects or substances, such as water, chemicals, dust, etc.
- Damages due to incorrect use, such as application of incorrect supply voltage.
- Damages due to incorrect assembly (provision of sufficient cooling).
Contact: MVVS, Ltd., Tř. Kpt. Jaroše 35, 60200 Brno, Czech Republic
Tel.: +420 545 211 683 Fax: + 420 545 211 418
E-mail: mvvs@mvvs.cz
Web: www.mvvs.cz
Certificate of Warranty
Sell-by date:
Seller: Buyer's name and address:

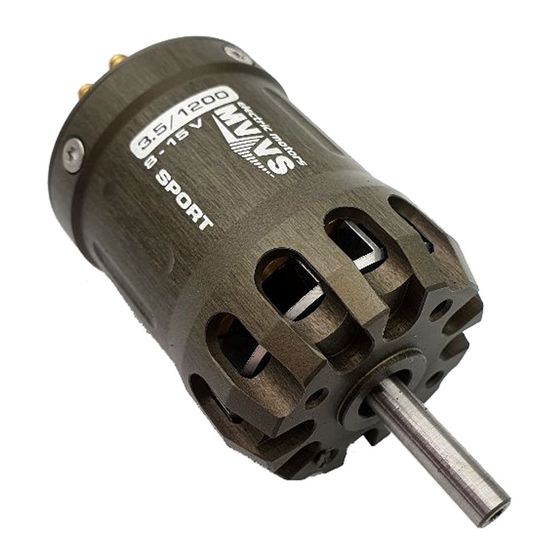

Congratulations on buying the MVVS series 3.5 AC sensor-free electric motor designed for driving aircraft
models. Owing to used materials, brand-name unified parts and high production precision this product features
high quality, long service life and top performance parameters.
This motor is intended, owing to used conception combining advantages of static motors and those with external
rotor, for direct driving the propeller and thus for all types of aircraft models including FUN – FLY and version
SPORT is possible to use also in Heli models. In addition, this conception is extremely suitable for glider models.

Specification

RPM per Volt 1200 / 1200 SPORT
Stator diameter 26 mm
Stator length 18 mm
Shaft diameter 5 mm
Nominal voltage 10 V
Number of poles 12
Working voltage 8 – 15 V
Recom. amperage loading 25 – 37 A
Maximum loading 45 A / 30 s 45 A / 60 s
Number of cells 7 – 12 NiCd / 3 – 4 Li-xx
Weight 168g / 177g

Area of Application

Motor Type Model
FUN-FLY 1,1 – 1,3 kg
Acrobat 1,4 kg
3,5 / 1200 Slow model 2 kg
3,5 / 1200 SPORT
Glider 1,6 – 2m / 2 kg
Dynamic Glider 1,4 kg
Quick model 1,4 kg
3,5 / 1200 SPORT Helicopter 1,5 – 2 kg
FUN-FLY 1,2 – 1,4 kg
Acrobat 1,5 kg
3,5 / 960
Slow model 2 kg
Glider 1,6 – 2,4m / 2 kg
FUN-FLY 1,0 – 1,2 kg
Glider 1,6 kg
Acrobat 1,5 kg
3,5 / 1400 SPORT
Dynamic Glider 1,6 kg
Quick model 1,5 kg
Helicopter 1,5 – 2 kg
MVVS 3,5/1200
MVVS 3,5/1200 SPORT
MVVS 3,5/960
MVVS 3,5/1400 SPORT
User's Manual
1.8
960 1400 SPORT
26 mm 26 mm
18 mm 18 mm
5 mm 5 mm
10 V 10 V
12 12
8 – 15 V 8 – 15 V
20 – 30 A 30 – 40 A
35 A / 30 s 50 A / 60 s
7 – 12NiCd / 3 – 4 Li-xx 7 – 12 NiCd / 3 – 4 Li-xx
168g 177g
Accumulator / Propeller
3 Li-xx / 12x6"
3 Li-xx / 11x7"
3 Li-xx / 10,5x7"
3 Li-xx / 11x7"
3 Li-xx / 11x8"
4xLi-xx / 8,5x6"
3-4 Lixx
4 Lixx / 12x6"
4 Lixx / 10,5x7"
3 Li-xx 12x8"
10 NiCd 11 – 13"/ 6 – 8"
3 Li-xx 12x6,5"
8 NiCd APC E 10x5"
8 NiCd APC E 11x6"
3 Li-xx APC E 10x6-7"
3 Li-xx 10x7
4 Li-xx 8,5x5", 9x4"
3 – 4 Lixx
