MVVS 5.6-690 GLIDER - V1.3 User Manual

Warranty Information

The MVVS Company gives 36-month warranty applying to manufacture and material defects of the electric
motors.
Warranty does not apply to:
- Damages due to an accident.
- Damages due to unprofessional handling or disassembling the product.
- Damages due to use of an unbalanced or damaged propeller.
- Damages due to usage of unoriginal spare parts or accessories.
- Damages due to intaking foreign objects or substances, such as water, chemicals, dust, etc.
- Damages due to incorrect use, such as application of incorrect supply voltage.
- Damages due to incorrect assembly (provision of sufficient cooling).
Contact: MVVS, Ltd., Tř. Kpt. Jaroše 35, 60200 Brno, Czech Republic
Tel.: +420 545 211 683 Fax: + 420 545 211 418
E-mail: mvvs@mvvs.cz
Web: www.mvvs.cz
Certificate of Warranty
Sell-by date:
Seller: Buyer's name and address:
MVVS 5.6 / 690 GLIDER
MVVS 5.6 / 960 REDLINER

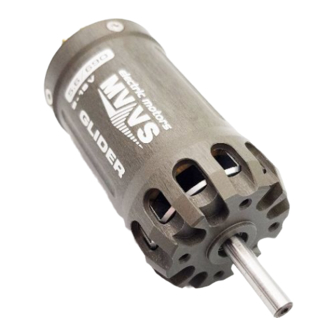

Congratulations on buying the MVVS series 4.6 AC sensor-free electric motor designed for driving aircraft
models. Owing to used materials, brand-name unified parts and high production precision this product features
high quality, long service life and top performance parameters.
This motor is intended, owing to used conception combining advantages of static motors and those with external
rotor, for direct driving the propeller and versions Glider /or Redliner are intended specially for glider's models.

Specification

RPM per Volt
Stator diameter
Stator length
Shaft diameter
Nominal voltage
Number of poles
Working voltage
Recommended amperage loading
Maximum loading
Number of cells
Weight

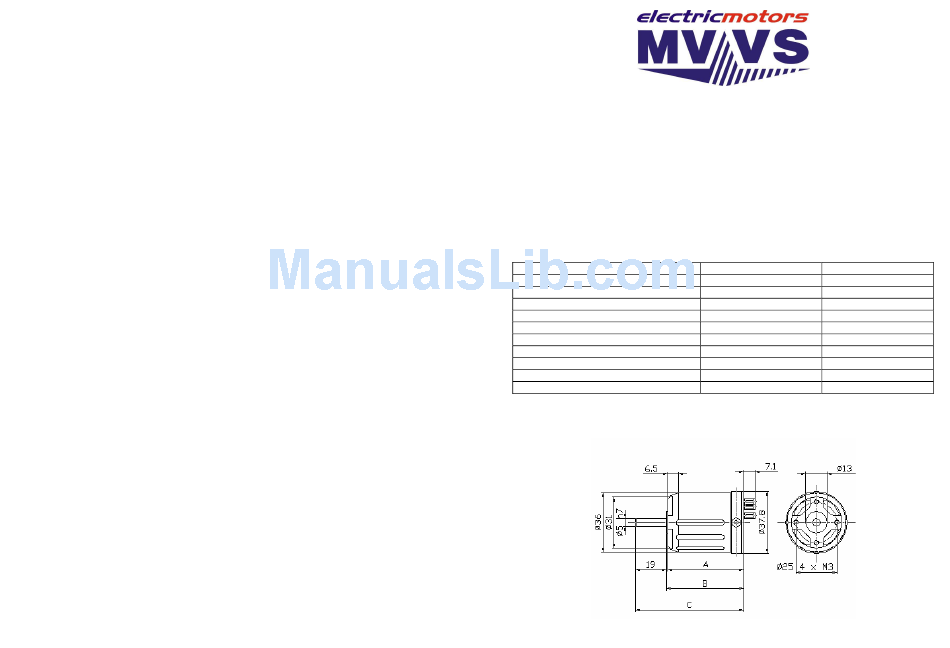

Dimensioned Sketch

A = 68.6mm
User's Manual
1.3
5.6 / 690 5.6 / 960
690 960
26 mm 26 mm
36 mm 36 mm
5 mm 5 mm
15 V 12 V
12 12
8 – 18 V 8 – 15 V
30 – 40 A 35 – 45 A
50 A / 60 s 65 A / 20 s
7 – 15 NiCd / 3 – 5 Li-xx 7 – 12 NiCd / 3 – 4 Li-xx
268g 268 g
B = 69.6mm C = 88.6mm
