Operating instructions

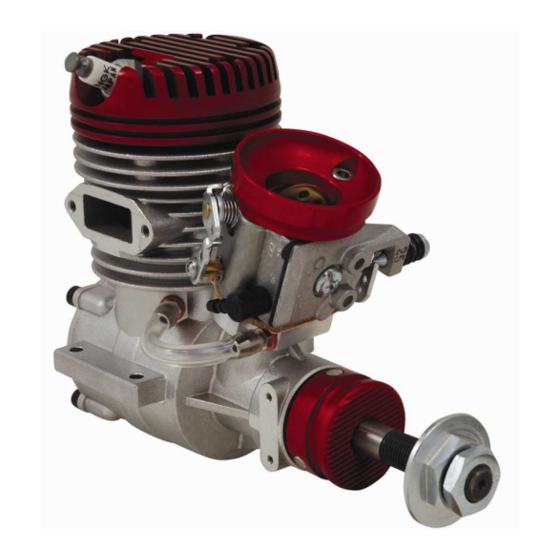

MVVS 30 IFS
č.: 3003
MVVS 30 IFS SP
č.: 3003 SP
Version 1.01

Advertisement

loading
Need help?

Need help?

Do you have a question about the 30 IFS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for MVVS 30 IFS

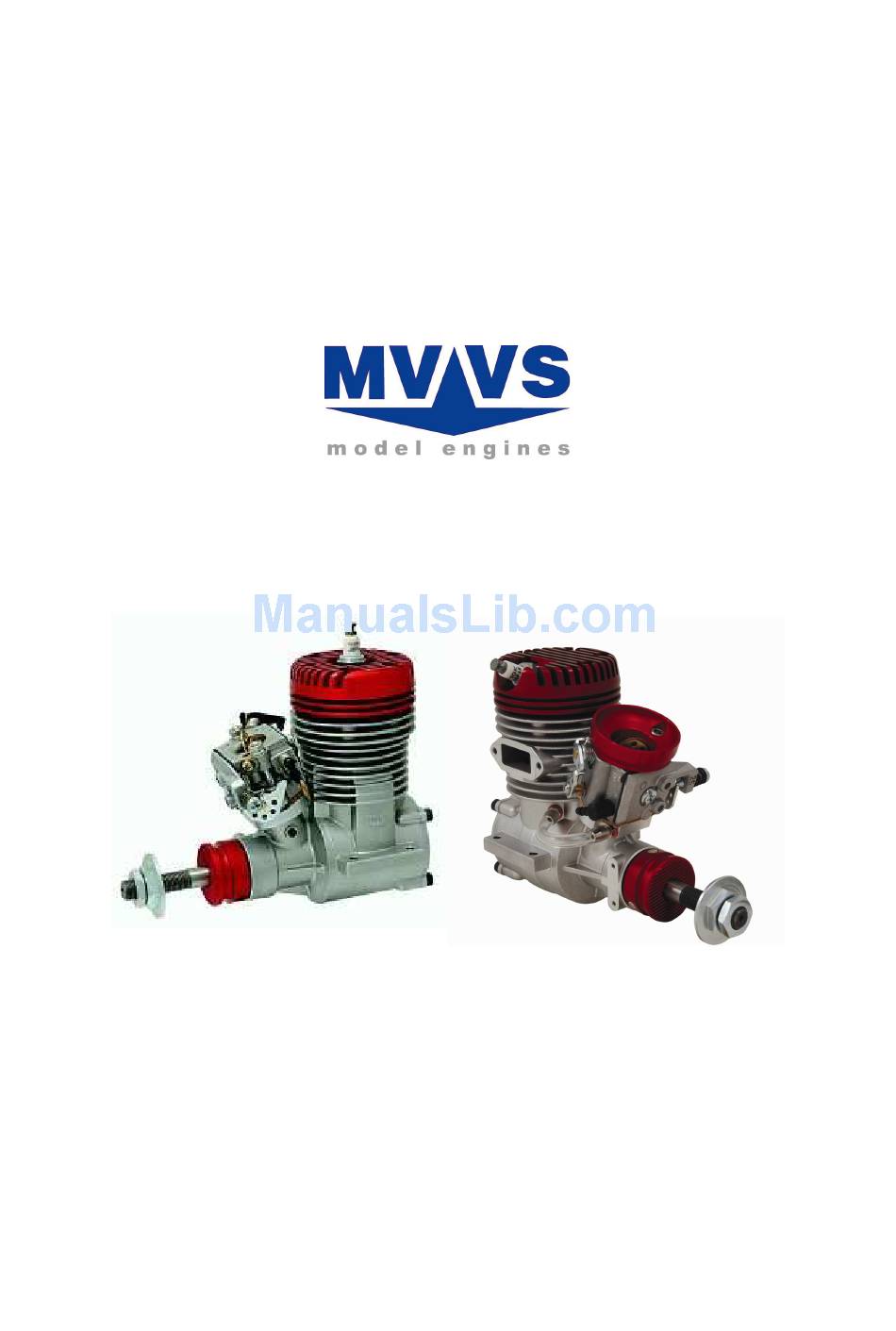

  • Page 1: Operating Instructions

    Operating instructions MVVS 30 IFS č.: 3003 MVVS 30 IFS SP č.: 3003 SP Version 1.01...
  • Page 2 Before using the engine, carefully read these instructions Congratulations on choosing the gas engine MVVS 30 ccm. MVVS 26 has been designed and manufactured for propeller-powered radio-controlled model planes. It is able to meet all of your expectations of an acrobatic racing engine.
  • Page 3 20% in comparison with input at hot weather. MVVS 30 has been designed to generate maximum power at 8500 RpM, according to the type of exhaust used. If you wish to utilize the maximum power output, choose a propeller which allows the engine to reach these revolutions, or slightly lower revolutions (given the unloading of the propeller depending on the speed of flight) on the ground.
  • Page 4 Exhaust Use only factory-made exhausts pipes designed for this type of engine, preferably brand-name MVVS engines with which you also get the power output guaranteed. The manufacturer declines all responsibility for all engine damages arising from the use of improper exhaust systems.
  • Page 5 Step II Faulty acceleration with hiccups and a tendency to cut out is usually attributable to a poor fuel mixture in the medium-revolutions range. Stop the engine and recheck the fuel feed (the hose-pipe must not be pinched or broken; if fitted, check also the fuel filter permeability). Restart the engine and test acceleration again.
  • Page 6 2T). From now on, fuel and oil should be mixed in the proportion 40:1. DO NOT PROCESS THE RUNNING-IN AT IDLE SPEED! You should get following results if the engine is settled up and in run correctly Engine Propeller Silencer 30 IFS APC 16/12 8500-8700 3266 APC 16/10 9000-9300...
  • Page 7 Spare parts list No: Description: No: Description: 0101 Crankcase 0951 Connecting rod 0202 Front bearing 1001 Crankshaft 0203 Rear bearing 1101 Drive washer 0301 Rear cover 1102 Drive washer key 0302 Rear cover screws - set 1103 Propeller nut 0304 Pressure nipple 1104 Propeller washer 0306 Rear cover „O“...
  • Page 8 Warranty The MVVS gas engines come with a three-year guarantee against defects in workmanship and materials. Only original buyers of the engines are eligible warranty claimants. The warranty cannot be transferred with a change in ownership. This guarantee does not cover:...
