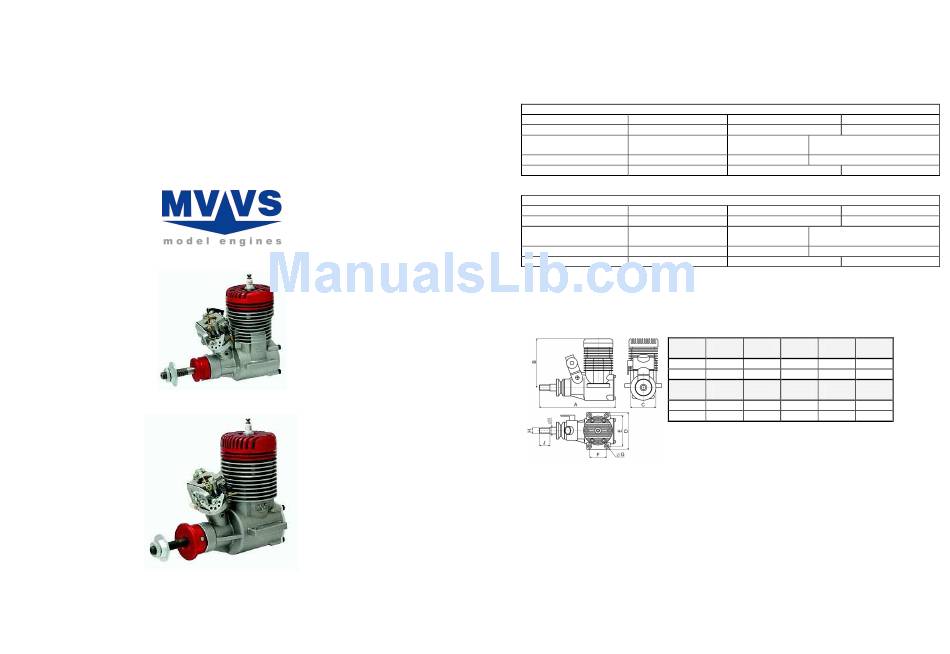

MVVS 26 IFS Operating Instructions

Operating instructions

MVVS 26 IFS
MVVS 26 IFS SP
MVVS 35 IFS
Version 2.1
č.: 3094IU
č.: 3094SP
č.: 3098I
Before using the engine, carefully read these instructions
Congratulations on choosing the gas engine MVVS 26 ccm (35ccm).
MVVS 26 and 35 has been designed and manufactured for propeller-powered radio-controlled model planes. It is able to
meet all of your expectations of an acrobatic racing engine.
Technical specifications
MVVS 26ccm
Bore 33 mm
Stroke 30.1 mm
Weight of complete engine 936 g
without ignition*
Weight of ignition unit 165 g
RpM range 1400 – 9500
MVVS 35ccm
Bore 35.5 mm
Stroke 35.2 mm
Weight of complete engine 1493 g
without ignition*
Weight of ignition unit 165 g
RpM range 1400 – 9000
* The value in the table above stands for the weight of a completely assembled engine, including the spark plug,
carburetor, drive washer and prop screws.
** Power output varies with the exhaust used. The value given in the table stands for the maximum available power
output.
Engine's dimensions
26 IFS
35 IFS
26 IFS
35 IFS
Safety precautions
1) Never use the engine for any manned vehicles.
2) When operating model planes, always follow the rules and laws in effect in your country.
3) The manufacturer declines all responsibility for all damages arising from the operation of models and other
appliances droved by MVVS engine.
4) Always use original spare parts.
5) Never tamper with the engine construction.
6) Before each flight check that all the propeller screws are tightened up and in good condition. If you use a
spinner, check that it is tightened up, too. When mounting the spinner always follow the assembly
instructions.
7) Before each flight check that all the propeller screws are tightened up and in good condition. If you use a
spinner, check that it is tightened up, too. When mounting the spinner always follow the assembly
instructions.
8) Periodically check that the engine is firmly fixed to the engine mounts. Never start a loose engine!
9) Always use a balanced propeller! Always replace the propeller when damaged!
8) Make sure that no part of your body intersects the plane of the spinning propeller.
Maximum power output ** 3.8 PS/9000 RpM
Maximum torque ** 3.1Nm/8000 RpM
Fuel Unleaded 95-octane fuel
Lubrication Oil with petrol in mixture 1:40
Maximum power output ** 4.1 PS/8500 RpM
Maximum torque ** 3.8 Nm/7500 RpM
Fuel Unleaded 95-octane fuel
Lubrication Oil with petrol in mixture 1:40
A B C D E
mm mm mm mm mm
146 99 50 70 60
182 118 60 84 70
F G H I J
mm mm mm mm mm
31 4,3 M10x1 10 33
41 5,3 M10x1 10 45
