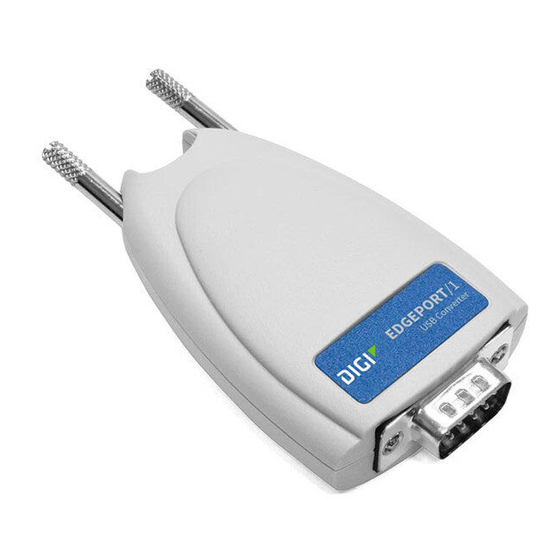

- Page 1 Edgeport ® USB EXPANSION MODULES Installation Guide Edgeport/1 Edgeport/2 Edgeport/4 Edgeport/8 Edgeport/8r Edgeport/8rr Edgeport/421 Edgeport/21 Edgeport/42 Edgeport/412 Edgeport/416 Edgeport/2c Edgeport/21c Edgeport/22c www.digi.com...
-
Page 2: Table Of Contents
Table of Contents Table of Contents...2 Edgeport Products...1 Edgeport /1, Edgeport/2, Edgeport/4, Edgeport/8, Edgeport/8r, Edgeport/8rr...2 Edgeport/21, Edgeport/42, Edgeport/421 ...3 Edgeport/412, Edgeport/416 ...5 Edgeport/2c ...6 Edgeport/21c, Edgeport/22c ...7 Edgeport Driver Installation ...8 The System Status Light ...10 Mounting Diagrams ...11 The Edgeport Utility Program ...12 Understanding Hubs...18 Regulatory &... -
Page 3: Edgeport Products
Edgeport Products Edgeport USB-to-Serial Converters offer an out-of-the-box alternative to serial cards for easy plug-and-play COM port expansion. Multiple serial, parallel and USB ports can be added to a PC, thin client or server in minutes — without opening the chassis or reconfiguring and rebooting the system. Its feature-rich design, reliable performance and unmatched operating system support (Windows NT 4.0, CE, XP, 2000, 2003 Server and more) make the Edgeport ideal for mission-critical enterprise applications. -
Page 4: Table Of Contents
Plug the Type A end of the USB cable into the USB port located in the back of your PC or into an available USB port on a standard hub or into a Digi Hubport. Plug the Type B end of the USB cable into the back of the Edgeport. -
Page 5: Edgeport/21, Edgeport/42, Edgeport/421
To connect your Edgeport to a PC or Hub, plug the Type A end of the USB cable into the USB port located in the back of your PC or into an available USB port on a standard hub or into a Digi Hubport. Plug the Type B end of the USB cable into the back of the Edgeport. - Page 6 Using the Printer Port For Windows 95, 98, CE, SE, Me, 2000, XP and NT Users The parallel port on your Edgeport/421 and Edgeport/21 supports only printers. To use your newly installed printer port: From the Start menu, choose “Settings” and then “Printers.” Right click on the printer you wish to use on your new port and select “Properties.”...
-
Page 7: Edgeport/412, Edgeport/416
To connect your Edgeport to a PC or Hub, plug the Type A end of the USB cable into the USB port located in the back of your PC or into an available USB port on a standard hub or into a Digi Hubport. Plug the Type B end of the USB cable into the back of the Edgeport/412 or 416. -
Page 8: Edgeport/2C
Plug the USB cable (with the Type A plug) into a USB port located on your PC or into an available USB port on a standard hub or into a Digi Hubport. If the drivers are not already installed, go to "Edgeport Driver Installation” on page 8. -
Page 9: Edgeport/21C, Edgeport/22C
Hubs” on page 18. To connect your Edgeport, plug the USB cable (with the Type A plug) into a USB port located on your PC or into an available USB port on a standard hub or into a Digi Hubport. -
Page 10: Edgeport Driver Installation
Because Microsoft does not support USB in NT4.0, Digi supplies a set of USB drivers that will be installed along with the necessary Edgeport drivers. NOTE: You must install the drivers using an account that has administrative privileges! Edgeport Installation Guide (90000403 Rev. -
Page 11: For Windows
To install the USB stack and Edgeport drivers: Insert the “Edgeport Driver” CD into your CD-ROM drive. When the welcome dialog appears, click the “Install Driver” button. Once the driver installation program has begun, follow the on screen instructions. 3a. If you are installing drivers for the first time: An Information dialog informs you that the installation was successful. -
Page 12: The System Status Light
The System Status Light For All Edgeports except the Edgeport/1 Red This light signifies a loss of USB communication with the host. If the loss is due to unplugging the unit, when it is reconnected the light will blink red a few moments before turning green. Otherwise, the light indicates a problem with the drivers, which may need to be reinstalled. -
Page 13: Mounting Diagrams
Mounting Diagrams For all Edgeport Products except Edgeport/416 and Edgeport/412 Rack Mount Kit* Under-Shelf Mounting Bracket* For Edgeport/416 and Edgeport/412* *Nuts, bolts, and screws are not included. Edgeport Installation Guide (90000403 Rev. D) – Page 11... -
Page 14: The Edgeport Utility Program
The Edgeport configuration utility program (edgeport.exe) allows you to manage the serial ports of your Edgeport product. Note that with Windows NT you must have administrative privileges in order to change the COM port settings. For more information, see the Support section at www.digi.com. General Tab The General tab in this utility allows you to do the following: Information - Check the manufacturing information pertaining to your device. - Page 15 Configure - Reassign the physical port on your device to any available Windows COM port number from 1 to 255 and give your device a user friendly Device Name. This capability is particularly helpful if you have more than one device. Port Flags - Configure performance options and special functionality on a per-port basis.
- Page 16 Low Latency: (930 based Edgeport only) Normally the UART will interrupt when the receiver has been idle for 4 character times. (For example 4ms at 9600) As long as data is being received the UART will continue to buffer them until its internal FIFO is full (~56 bytes).
- Page 17 Here is a comment from the code: If the receiver is active then do not complete this read. The problem is that the Edgeport buffers the RX bytes and we poll the driver. If we do not receive any bytes in 200ms we may report an erroneous event even if there are available bytes in the Edgeport device or driver.
- Page 18 Port Status – Provide the status of a selected (highlighted) serial port. The Poll Interval is the number of seconds between updates of this window. This is also the number of seconds between each entry in the log file. To create a log file, click the Start Logging button and enter a filename for the log file. This file will contain all of the information displayed in the Port Status window until the Stop Logging button is clicked.
-
Page 19: Advanced Tab
The Advanced tab allows you to do the following: Uninstall the drivers. Enable Event Logging – Place event messages in system event log. Configure how COM ports will be assigned. The driver supports COM port number assignment in two ways: 1. -
Page 20: Understanding Hubs
Understanding Hubs Hubs, critical components in the USB architecture, are wiring concentrators that enable the attachment of multiple devices, thus converting a single attachment point into multiple attachment points. USB architecture allows a cascaded multiple hub configuration with certain power limitations (explained later in this section). See figure 1. Host Hubpo rt Edgeport... -
Page 21: Regulatory & Other Information
Regulatory & Other Information © 2006 Digi, Digi International, the Digi logo, Inside Out Networks, Edgeport, and Hubport are either trademarks or registered trademarks of Digi International, Inc. in the United States and/or other countries. All other trademarks are the property of their respective holders. - Page 22 Règlement sur le matériel brouiller du Canada. European Community - CE Mark Declaration of Conformity (DOC) According to ISO/IEC Guide 22 and EN 45014 Manufacturer’s Name: Digi International Manufacturer’s Addr.: 11001 Bren Road East Minnetonka, MN 55343 declares that the product Product Name:...
- Page 23 Corporate Headquarters: 952-912-3444 877-912-3444 Fax: 952-912-4952 Digi Europe: +49-231-9747-0 Digi Hong Kong: +852-2833-1008 Digi North America: 877-912-3444 Edgeport Installation Guide (90000403 Rev. D) – Page 21 European Contact Digi International Joseph-von-Fraunhofer Str. 23 44227 Dortmund, GERMANY 49-231-9747-0 UL/CSA Safety Information...
