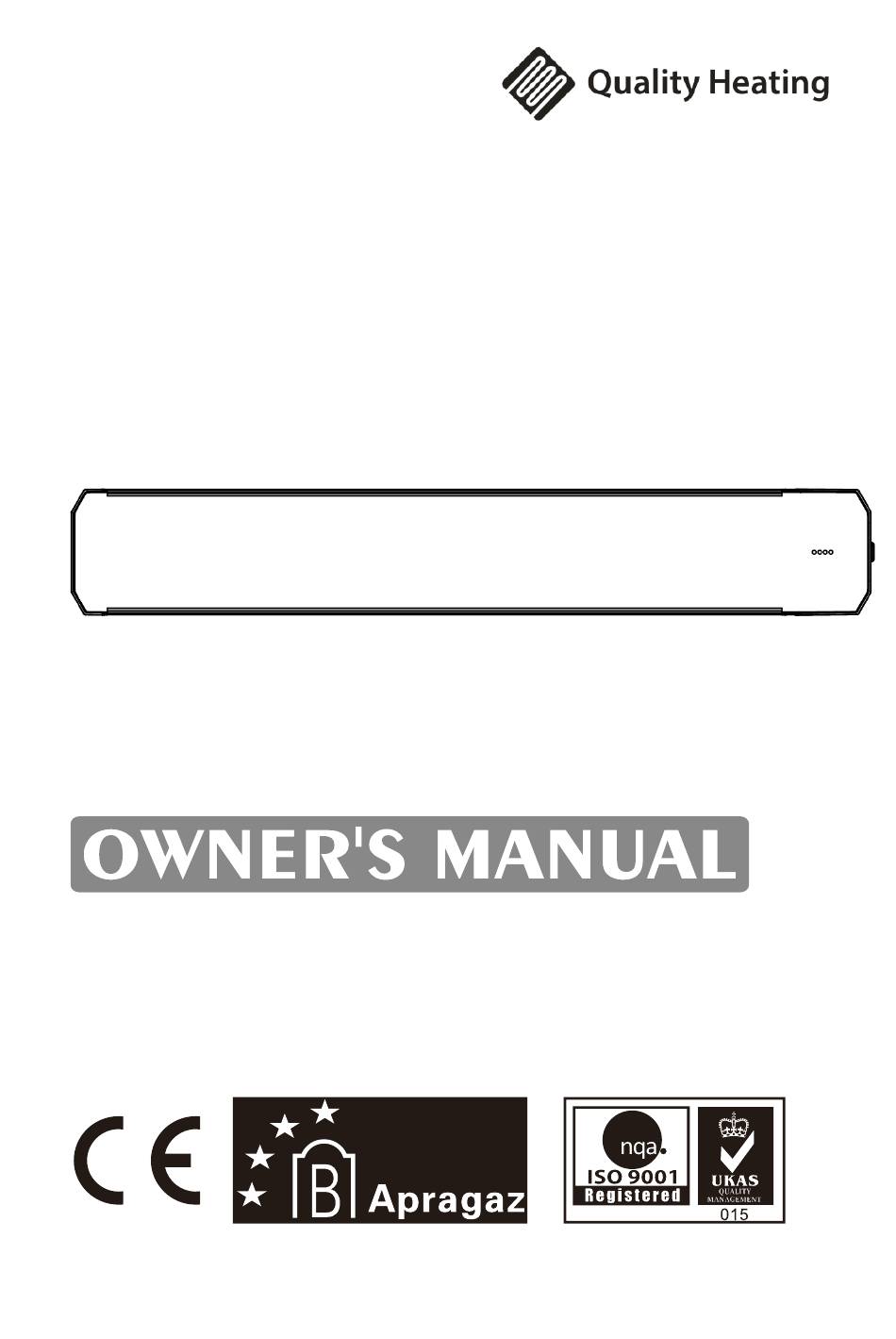

INFRARED HEATER
READ AND SAVE THESE INSTRUCTIONS
Read all instructions carefully before setting up and operating this unit.
This manual is designed to provide you with important information needed to setup, operate,
maintain for your radiant heaters.
Failure to follow these instructions may damage and/or impair its operation and void the
warranty.
Advertisement
Related Manuals for Quality Heating QH-NR16-22B
Summary of Contents for Quality Heating QH-NR16-22B
- Page 1 INFRARED HEATER READ AND SAVE THESE INSTRUCTIONS Read all instructions carefully before setting up and operating this unit. This manual is designed to provide you with important information needed to setup, operate, maintain for your radiant heaters. Failure to follow these instructions may damage and/or impair its operation and void the warranty.
- Page 2 1. SAFETY PRECAUTIONS This appliance is not intended for use by persons (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Page 3 flammable，explosive，easy to shock. 13. Please do not insert any metal or foreign objects to inside of radiant heater, to avoid accident or personal injury. 14. Radiant heater panel surface with high temperature, the surface temperature can reach to 380℃ (max)，touch is forbidden，beware of scalding accident.
- Page 4 (4) Ground wire should be connected to the grounding device on the building, if not, please consult to professional installer, please do not put ground wire to gas pipe, water pipe, lightning rod or telephone grounding wire. Model No. Power(W) Rated Current(A) Voltage(V) Cable length(m) QH-NR16-22B 1600 220-240 QH-NR22-22B 2200 220-240 QH-NR32-22B 3200 13.9...
- Page 5 7. INSTALLATION INSTRUCTION Model No. Dimension A Dimension B QH-NR16-22B 810mm 400mm QH-NR22-22B 1160mm 600mm QH-NR32-22B 1660mm 1050mm Step 1：Connect adjusting bracket to sliding bracket.
- Page 6 Step 2：Installation of sliding bracket & heater, as arrow points. Step 3：Fix adjusting bracket into the wall by expansion screws. Step 4：Installation of two adjusting brackets; make sure lock brackets tight by butterfly hand screw.
- Page 7 8. INSTALLATION DIAGRAM...
- Page 8 9. ELECTRICAL SCHEMATIC N OT1 OT2 Electrical reheat Power input 220-240V~ Power switch 50-60Hz (SPDT) Controller EARTH 10. DISPLAY INTERFACE...
- Page 9 11. MANUAL FOR REMOTE CONTROLLER Standby Sending Battery power Heating Level Level Timer on Clock Timer off 1. ON/OFF button Press ON/OFF button to turn on/off heater. Pic1-1 Off-state Pic1-2 On-state & High power (Level 2) 2. Clock button Remote is powered on (as show in picture 2-1), present time is 00:00, time setting as follow: 1)Press clock button, the hour will flash (as show in picture 2-2), press up or down button to change hour setting.
- Page 10 3)Press clock button, the second will flash (as show in picture 2-4), press up or down button to change hour setting. 4)Press clock button again, the second stop flashing and the setting is finished. Pic2-1 Pic2-2 Pic2-3 Pic2-4 3. Heat button Press Heat button to adjust the power when the heater is on.
- Page 11 2)Press up or down to change hour (as show in picture 6-2). 3)Press time off button again, hour stop shining and minute begin to shine, press up or down to change minute (as show in picture 6-3). 4)Press time off button again, timer off function finished. It will show the present time 16;30 and off.
- Page 12 repeat the above process.
- Page 13 5. Using App to control heater Once it’s connected, you can use the App to control the heater.
- Page 14 13. INSPECTION ITEMS AFTER INSTALLATION Situation caused by improperly i Items to be Items to be checked checked installation Is installation stable? The equipment may fall off or shake. Is heat insulation adequate? Damage objects close to equipment. Does power voltage same as voltage shown on Equipment failure.
- Page 15 16. PACKING LIST Name Heater 1 pc Remote controller 1 pc Adjusting bracket 1 set Fastener 1 set Sliding bracket 1 set 17. SPECIFICATIONS Package Gross Model No. Dimension(mm) size(mm) weight(kg) weight(kg) QH-NR16-22B 810*180*77 890*240*180 QH-NR22-22B 1160*180*77 1240*240*180 QH-NR32-22B 1660*180*77 1740*240*180 11.7...
- Page 16 CORRECT DISPOSAL OF THIS PRODUCT This marking indicates that this product should not disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.
