Summary of Contents for OLIGHT WARRIOR MINI 3

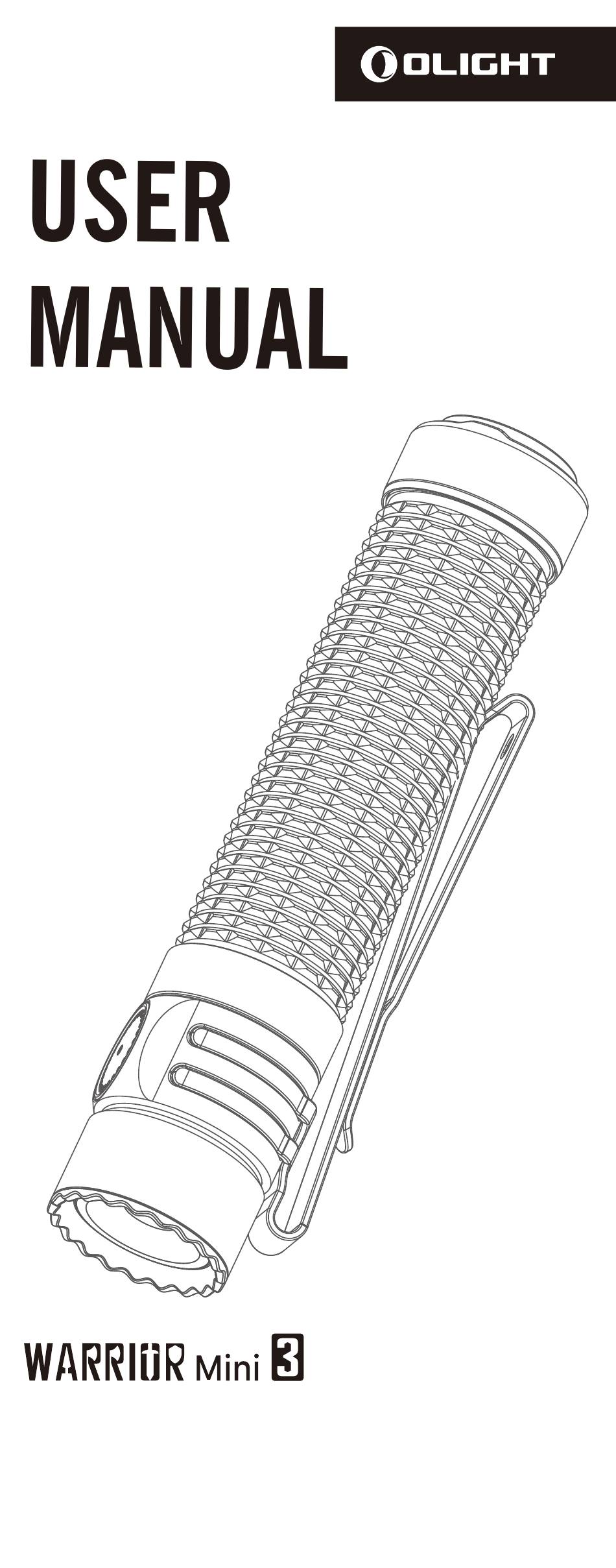

- Page 1 A Powerful Compact Rechargeable Dual-Switch EDC Flashlight...
- Page 2 IN THE BOX Warrior Mini 3 L-Shape Stand COOL WHITE CCT: 5700~6700K CRI:70 1,750 TURBO 100% 2min lumens 210min 30min 215min HIGH 100% lumens 30min MEDIUM 100% lumens 165h 100% lumens 100 days MOONLIGHT 100% lumens...
- Page 3 Rechargeable Li-ion Battery (L)111 *(D)23mm ( * 0.91in (L)4.37 12.6Wh (3500mAh 3.6V) * Above data are tested per ANSI/NEMA FL 1-2009 standard in Olight's labs for reference. Cable length 0.5m USB type A DC 5V 2A Input Output CC&CV 4.2V 2.0A About 3.5 hours...
- Page 4 Figure 2 Red: Charging Green: Charging Completed Figure 3 Press...
- Page 5 Figure 4 Press and hold >1 sec >2 sec Figure 5 Press and hold 1 to 2 sec...
- Page 6 Figure 6 Double press TURBO Figure 7 Triple press Strobe...
- Page 7 Figure 8 Press and hold Moonlight Turbo Medium High Figure 9 MEDIUM...
- Page 8 Figure 10 Press TURBO Figure 11 Tap and hold MEDIUM...
- Page 9 Figure 12 Press and hold TURBO Figure 13 Press and hold Strobe...
- Page 10 Figure 14 Press and hold Configuration change Configuration 1 Configuration 2 Factory mode Strobe mode...
- Page 11 Figure 15-1 Green: >60% Orange: 10~60% Red: 5~10% Blink Red:<5% Figure 15-2 Moonlight OFF: >5% Blink Red:<5%...
- Page 12 Figure 16-1 * After the flashlight is activated in High/Turbo mode within 0.5 seconds, then block the light output. Or block the light output and then enter the High/Turbo mode. Near MEDIUM HIGH/TURBO MEDIUM (Note: After the obstruction caused downshift stage, the output brightness will remain Medium even after the obstruction is removed.) Figure 16-2...
- Page 13 Figure 17 Obstruction caused downshift within 5 seconds, side switch operation <5s Near HIGH/TURBO Double press MEDIUM HIGH/TURBO Figure 18 L-shape stand application...
- Page 14 （ EN ） English Multi-language dictionary, see Table 3; 1. Product specification, see Table 1 and Table 2; 2. Remove the insulating film, see Figure 1; 3. Charging, see Figure 2; 4. Side switch operating instructions below: 4.1 ON/OFF, see Figure 3; 4.2 Lockout / unlock, see Figure 4;...
- Page 15 WARRANTY Within 30 days of purchase: Contact the original seller for repair or replacement. Within 5 years of purchase: Contact Olight for repair or replacement. Battery warranty: Olight offers a one-year warranty for all rechargeable batteries. MCC magnetic USB charging cable: One year.
