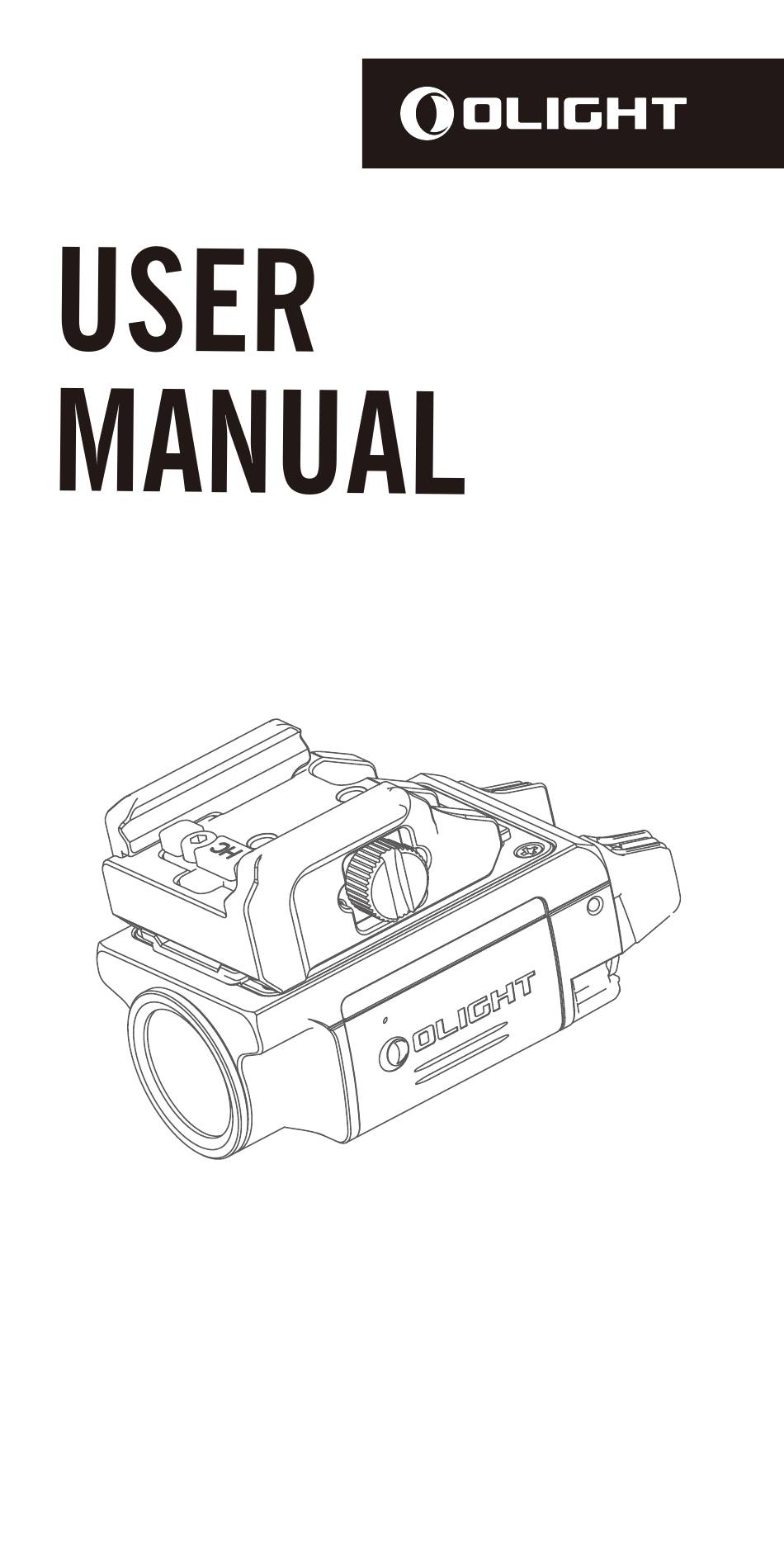

- Page 1 PL-Mini 3 Valkyrie A compact rail-mounted light with convenient magnetic charging.
- Page 2 IN THE BOX PL-Mini 3 Valkyrie Battery MCC 3 GL Adapter 1913 Adapter Allen Wrench Screws M3x4 Socket Screws Table 1: Specifications COOL WHITE CCT: 6500K CRI: 70 600 lumens Working temperature 2,500cd 100m IPX6 0~40°C 68g /2.40oz (L)52.5 *(W)27.6*(H)33.8mm 260mAh 3.7V (0.96Wh)
- Page 3 Cable length 0.5m USB-A 5V 2A Input Output CC&CV 4.2V±0.05V 350mA About 50min Time to fully charge Figure 1 Remove the insulating film Press and hold the battery, then push the slider to the left to unlock.
- Page 4 Remove the battery upward and remove the insulating film. Figure 2 Charge the battery Green: Charging Completed (Battery ≥ 95%) Red: Charging...
- Page 5 Figure 3 Battery installation Insert the battery downward. Press the battery...
- Page 6 Push the slider to the right to lock the battery. Figure 4 Screw off...
- Page 7 Figure 5 Adjust the installation position of the light and tighten the screw Figure 6 Turn the light ON/OFF Press...
- Page 8 Figure 7 Momentary on Press and hold Momentary on Figure 8 Deactivate or activate the Strobe function At least 5 times Quickly press a button at least 5 times when the light is off, then hold the last press for at least one second. >1 sec Strobe...
- Page 9 Figure 9 Turn Strobe on (when Strobe function is activated) Double press Strobe Figure 10 Battery power indicator ≥60% Green: Orange: 10~60% Red: ＜10% Press the button once to activate the indicator.
- Page 10 ( EN ) English Multi-language dictionary, see Table 3. 1. Product specifications, see Table 1 and Table 2. 2. Operating instructions as below: 2.1 Remove the insulating film, see Figure 1. Before first use, press and hold the battery, then push the slider to the left to unlock.
- Page 11 5-year warranty. The warranty covers defects in material and workmanship under normal use, excluding loss, theft, deliberate damage, or cosmetic damage. For complete warranty information, please visit Olight.com or your local Olight official website. Australia Customer Support contact@olightstore.com.au Austria Customer Support kontakt@olightstore.at...
- Page 12 Dongguan Olight E-Commerce Technology Co., Ltd. 4th Floor, Building 4, Kegu Industrial Park, No 6 Zhongnan Road, Changan Town, Dongguan City, Guangdong, China. Made in China CAN ICES-005( B ) / NMB-005( B ) 3.4000.1019 C. 04, 30, 2024...
