AVerMedia D115S
®
Applies to NVIDIA
Jetson Orin™ NX/ Orin™ NANO Module
AVerMedia Technologies, Inc.
No. 135, Jian 1st Rd., Zhonghe Dist., New Taipei City 23585, Taiwan
Tel: 886-2-2226-3630
Fax: 886-2-3234-4842
Sales and Marketing:
Contact
Technical Support:
Professional User
0
D115S User Manual AVerMedia Technologies, Inc www.avermedia.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the D115S and is the answer not in the manual?

Questions and answers

Related Manuals for Avermedia D115S

Summary of Contents for Avermedia D115S

  • Page 1 Jetson Orin™ NX/ Orin™ NANO Module AVerMedia Technologies, Inc. No. 135, Jian 1st Rd., Zhonghe Dist., New Taipei City 23585, Taiwan Tel: 886-2-2226-3630 Fax: 886-2-3234-4842 Sales and Marketing: Contact Technical Support: Professional User D115S User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 2 4.2 Let the JETSON Orin NX/NANO initiate recovery mode ......36 4.3 Using the commands below in the Linux PC to start re-flashing BSP ..36 5.0 Software ........................... 37 5.1 Force Recovery Mode ................... 42 5.2 OOB Software Settings ................. 43 D115S User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 3 5.3 Power Consumption ..................43 6.0 Dimension Drawings ....................... 44 6.1Dimension Drawings of carrier board............44 6.2 Dimension Drawing of D115S BOX PC ............46 6.3 Dimension Drawing of PSE Board .............. 48 7.0 Accessory Drawings ......................49 7.1 Fan Module/Adapter/ Power Cord .............. 49 8.0 Accessory Assembly SOP....................
  • Page 4 The information contained in this user manual, including but not limited to any product specification is subject to change without notice. AVerMedia assumes no liability for any damages incurred directly or indirectly from any technical or typographical errors or omissions contained herein or for discrepancies between the product and the user manual.
  • Page 5 Revision History Revision Date Updates Version 0.1 July 04, 2025 Released Version 0.2 July 28, 2025 Update 3.19 D115S User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 6 AVerMedia Global Offices https://www.avermedia.com/professional/contact-us D115S User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 7 AVerMedia provides product warranty. Should this product, in AVerMedia's opinion, fail to be in the good working order during the warranty period, AVerMedia will, at its option, repair or replace it at no charge, provided that the product has not been subjected to abuse, misuse, accident, disaster, or non-AVerMedia authorized modification or repair.
  • Page 8 5. Do NOT leave this device in an un-controlled environment with temperatures beyond the device’s permitted storage temperature to avoid damage. 6. All adaptors and cables supplied by AVerMedia are verified. Do NOT use any others not supplied by AVerMedia to avoid any malfunction or fires.
  • Page 9 (3) Exposure to moisture (4) Liquid intrusion into the device (5) Any obvious signs of damage displayed on the device (6) Device is not working as expected or in a manner as described in this manual D115S User Manual AVerMedia Technologies, Inc www.avermedia.com...

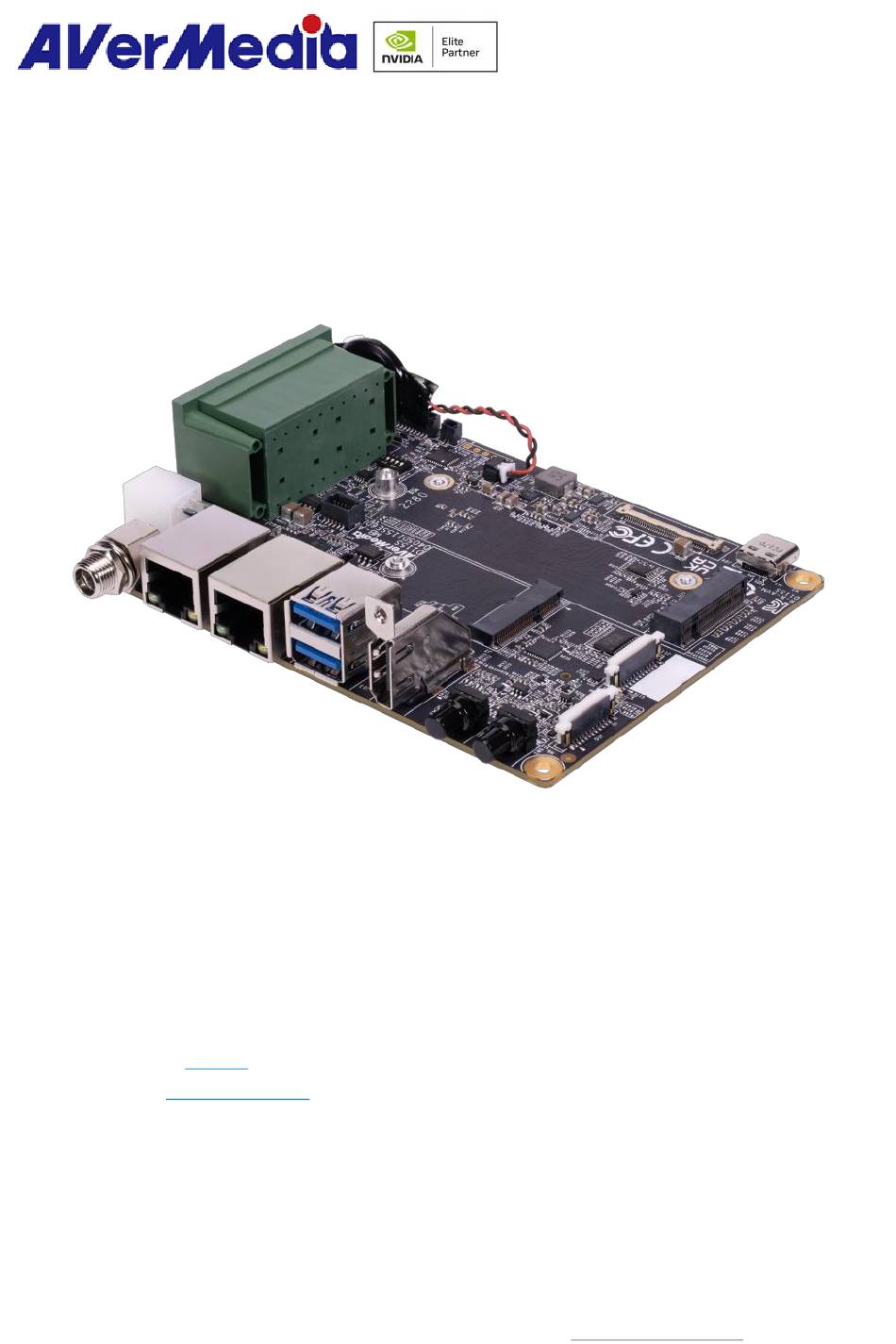

  • Page 10 1.0 Introduction AVerMedia D115S/D115SOXP/D115SONP is a fully featured carrier board/box PC designed for NVIDIA® Jetson Orin NX/Orin Nano modules. AVerMedia provides access to a wide range of latest interfaces on NVIDIA® Jetson Orin NX/Orin Nano modules. D115S/D115SOXP/D115SONP provide HDMI video output, two USB 3.2 ports, two GbE RJ-45 por ts(Option PoE x1), 20-pin expansion header, and one USB 2.0 type C port for recovery.
  • Page 11 Heat sink with fan (optional) Buttons Power and Recovery RTC Battery Support RTC battery and Battery Life Monitoring by MCU Dimensions W:120mm x L:90mm; Weight: 125 g Certifications CE, FCC, VCCI, KC (TBD) D115S User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 12 W:126mm x L:96mm x H:73.9mm (W:162mm with mounting ears); Weight: 1kg (TBD) (Normal mode) Dimensions W:190mm x L:175mm x H:80mm (W:226mm with mounting ears)(by request) Weight: 4 Kg (TBD) (Super mode) Certifications CE, FCC, VCCI, KC (TBD) D115S User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 13 NVIDIA® Jetson Orin NX/Orin Nano Power Cord EU/JP/TW/US/CN/UK/AU ⚫ For 22 pin MIPI connector raspberry pi imx219 &imx477 (V2) Manufacturer: APPRO.PHO MIPI Camera • B-04: IMX179(8M)MIPI, 1080P(30fps) (internal I/O) • C-04: IMX290(2M)MIPI, 1080P(30fps) • C-05: IMX290(2M)+ISP(YUV), 1080P(30fps) D115S User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 14 2.0 Product Overview 2.1 Block Diagram D115S User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 15 2.2 Front View and Back View of Carrier board D115S User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 16 2.3 Front View and Back View of BOX PC Left view Right view D115S User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 17 Top view Front view D115S User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 18 Rear view Bottom view D115S User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 19 2.4 Connector Summary Top View Interface SO-DIMM 260-pin 90° SMD Socket(H-9.2mm) Fan Wafer D115S User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 20 0.5mm pitch I-PEX connector for optional 5G Board OOB Board Connector #1(OOB with NC-SI) OOB Board Connector #2(OOB for basic function Expansion connector for external power button DIP switch Power Button w/LEDs Recovery Button w/LEDs D115S User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 21 RTC battery for module Location Description WAFER_1*2PIN_1.25 ㎜_90° Manufacturer ACES Part number 50271-00201-001 ACES 50276-002H0H0-001 Mating Connector Molex 51021-8602 PIN# Description Module Pin# Type/ Dir Ground Pinout RTC_BAT Power, 3V Remarks RTC Battery: KTS, CR2032 3V D115S User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 22 3.4 OD 5.5/2.5 DC Jack with Lock Function DC Power input with lock Location Description JACK_DC POWER_D2.5 ㎜_90°_DIP Manufacturer JKCR Part number DCD-020-105B Mating Any OD 2.5mm power plug Connector Pinout Remarks D115S User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 23 SOCKET_M.2-KEY_M_75PIN_90°_SMD Manufacturer ACES Part number 51757-0750C-012_ P0.5 ㎜-H5.5 ㎜ Any M.2 M key 2280 card standard Mating interface device. Connector Please refer to M.2 M key card standard for Pinout the pinout details. D115S User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 24 Input, MIPI CSI1_D1_N Input, MIPI Ground Pinout CSI1_D0_P Input, MIPI CSI1_D0_N Input, MIPI Ground CSI0_CLK_P Input, MIPI CSI0_CLK_N Input, MIPI Ground CSI0_D1_P Input, MIPI CSI0_D1_N Input, MIPI Ground CSI0_D0_P Input, MIPI CSI0_D0_N Input, MIPI D115S User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 25 Any Standard Type-A interface cable or device. Connector Pinout Please refer to USB 3.2 standard. Dual port within same connector(J13) share currents up to 2A Remarks Each port of J13 has full 10Gpbs bandwidth available. D115S User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 26 Green occurring No data transmission W/O PSE or receiving is occurring J15 is via I210 Ethernet controller with optional OOB function Remarks J16 is directly from NVIDIA Jetson SOM.with optional PSE (15W) D115S User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 27 Current +5V_SYSTEM Power Ground UART2_TXD_3V3 Output ±24mA UART2_RXD_3V3 Input ±24mA Ground UART0_TXD_3V3 Output ±24mA UART0_RXD_3V3 Input ±24mA CANL Bidir CANH Bidir +3V3_ SYSTEM Power Ground I2C1_SDA Bidir OD ±2mA I2C1_SCL Bidir OD ±2mA D115S User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 28 I2S0_SDIN_LS Output Input(default) I2S0_LRCK_LS 3.13 Fan connector Function Fan Connector Location Type WAFER_1*4PIN_1.25 ㎜_90° Description Manufacturer ACES Part number 50271-0040N-001 Mating ACES Connector ACES 50276-004H0H0-001 Pinout Pin # Description Module Pin# Type/ Dir D115S User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 29 Part number 50238-01241-001 ACES Mating Connector 50247-012H0H1-001 PIN# Description Module Pin# Type/ Dir Power Out, 12-24V Ground Power Out, 12-24V Pinout Ground Power In, 54V+ SYS_RST Bidir, 3.3V Power In, 54V+ I2C1_SCL Output, 3.3V D115S User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 30 WAFER_40PIN_0.5 ㎜_90°_SMD Manufacturer I-PEX Part number 20455-040E-12 Mating I-PEX 20453-240T-03 Connector PIN# Module Pin# Type/ Dir Description Power, 12-24V Pinout Ground Ground GNSS_CTRL Output, 1.8V AIRPLANE_CTRL Output, 1.8V LTE_PWR Output, 3.3V PCIE_WAKEN Input, 3.3V D115S User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 31 USB3_DP Bidir, USB2.0 USB3_DN Bidir, USB2.0 Ground Ground PCIE3_TX0_P Output, PCIe PCIE3_TX0_N Output, PCIe Ground Ground PCIE3_RX0_P Input, PCIe PCIE3_RX0_N Input, PCIe Ground PCIE3_CLK_P Output, PCIe PCIE3_CLK_N Output, PCIe Ground 5G_RST Output, 1.8V D115S User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 32 Type/ Dir NC_SI_TXD0 Input, 3.3V NC_SI_TXD1 Input, 3.3V NC_SI_TX_EN Input, 3.3V Ground NC_SI_CLK_IN Input, 3.3V Pinout Ground NC_SI_RXD0 Output, 3.3V NC_SI_RXD1 Output, 3.3V NC_SI_CRS_DV Output, 3.3V Ground Remarks For optional OOB with NCSI board D115S User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 33 UART2_TX (Debug UART) 236 Output, 3.3V UART0_RX (Auto-link) Input, 3.3V Pinout UART0_TX (Auto-link) Output, 3.3V VDD_CVM_GP Output, 3.3V SYS_RST_AI Input, 3.3V BUTTON_PWR_ON_MCU 240 Input, 3.3V +5V_STANDBY Power, 5V Remarks For optional OOB board D115S User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 34 Start-up Enabled Fan Control FAN Always ON FAN PWM Enabled (full speed running) (SW Controlled) • Blue font is default setting Remark • When D115S is ON, if Power ON mode setting is "Always D115S User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 35 Power Off GUI. If no operation is performed, the system will Remark automatically power off in 60 seconds. • When D115S is ON, holding the button for more than 5 seconds will force a full system power down. 3.21 Force Recovery Button...
  • Page 36 Other Switches and Jumpers Other switches and jumpers listed on the boards but not mentioned in this manual are reserved for internal use by AVerMedia. They are not open to the client application. D115S User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 37 4.1 BSP Setup Instructions BSP (board support package) file: AVERMEDIA_JETPACK_-R1.1.*.6.*.*_desktop.tar.gz for D115SOXPIf you want to get the BSP download link, please contact with AVerMedia FAE. Default login username/password of the BSP is nvidia/nvidia. If you have difficulties to access the BSP download link, please visit AVerMedia website athttps://www.avermedia.com/professional/download, or contact technical support...
  • Page 38 # get current speed setting of PWM Fan (0 ~ 255) $ cat /sys/devices/platform/pwm-fan/hwmon/hwmon<x>/pwm1 # get Fan RPM value $ cat /sys/devices/platform/bus@0/39c0000.tachometer/hwmon/hwmon<y>/rpm * Where <x> and <y> are dynamic hwmon indexes, with x = 1 and y = 3. D115S User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 39 MIPI CSI Camera There are 2x 2-lane and 1x 4-lane MIPI CSI camera supported on D115S, for current supported products type are listed as below: * IMX219 (2-lane) * IMX477 (2-lane) * IMX179 (2-lane) * IMX290 (2-lane) * IMX290ISP (2-lane) Test Command: >...
  • Page 40 $ gst-launch-1.0 nvarguscamerasrc sensor-id=0 ! 'video/x-raw(memory:NVMM), width=(int)3280, height=(int)1698, format=(string)NV12, framerate=(fraction)30/1' ! queue ! nvvidconv ! xvimagesink -e $ gst-launch-1.0 nvarguscamerasrc sensor-id=0 ! 'video/x-raw(memory:NVMM), width=(int)2096, height=(int)1084, format=(string)NV12, framerate=(fraction)30/1' ! queue ! nvvidconv ! xvimagesink -e D115S User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 41 $ gst-launch-1.0 v4l2src io-mode=4 device=/dev/video0 do-timestamp=true ! 'video/x-raw, width=1280, height=960, framerate=30/1, format=UYVY' ! queue ! xvimagesink sync=false $ gst-launch-1.0 v4l2src io-mode=4 device=/dev/video0 do-timestamp=true ! 'video/x-raw, width=1280, height=720, framerate=30/1, format=UYVY' ! queue ! D115S User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 42 'video/x-raw, width=640, height=360, framerate=30/1, format=UYVY' ! queue ! xvimagesink sync=false CAN Bus There is one CAN Bus for D115S, see the following command for usage. (1) Enable and set up CAN Bus # 1. Enable CAN Bus $ sudo modprobe can...
  • Page 43 (3) Disable $ sudo pkill_avt_gpio For L4T (Linux for Tegra) BSP support and the other software support associated with NVIDIA® Jetson Orin NX/Nano, please visit AVerMedia website to contact our technical support function. (https://www.avermedia.com/tw/support/contact) 5.1 Force Recovery Mode USB 3.l / Jetson platform port of D115SOXP can be used to re-program NVIDIA® Jetson Orin NX by using the other host system running NVIDIA Jetpack, as the procedure described below.
  • Page 44 (maximum power consumption up to 90W based on adapter) Typical System The power consumption under the normal operating mode is depending ® Power Consumption on the application software running with NVIDIA Jetson Orin NX D115S User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 45 6.0 Dimension Drawings 6.1Dimension Drawings of carrier board D115S User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 46 D115S User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 47 6.2 Dimension Drawing of D115S BOX PC D115S User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 48 D115S User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 49 6.3 Dimension Drawing of PSE Board D115S User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 50 ◼ Operating Voltage Range: 3.5V~5.5V ◼ Rated Speed: 6000RPM±10% (Testing Speed After Continuous 3 Minute Operation at Ambient Temperature Of 25℃) ◼ Life Expectancy: 70,000hours at 40℃ (WITH 15~65% RH) ◼ Bearing Type: Two Ball D115S User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 51 Power Adapter 041312GOYANW (for Super Mode) D115S User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 52 064APOWERBRX-IPD (TW version) 064APOWERBR2-IPD (US version) D115S User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 53 064APOWERBRW-IPD (UK version) 064APOWERBR5-IPD (EU version) D115S User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 54 064APOWERBSL (JP version) 064APOWERBR4-IPD (CN version) D115S User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 55 8.0 Accessory Assembly SOP 8.1 PSE board D115S User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 56 D115S User Manual AVerMedia Technologies, Inc www.avermedia.com...
