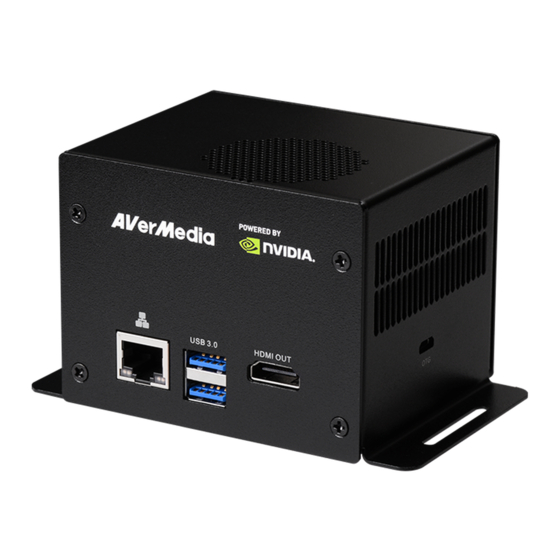

AVerAI NO111B/NX211B Box PC
®
Designed for NVIDIA
Jetson Nano(Version B01)/ Xavier NX modules
AVerMedia Technologies, Inc.
No. 135, Jian 1st Rd., Zhonghe Dist., New Taipei City 23585, Taiwan
Tel: 886-2-2226-3630
Fax: 886-2-3234-4842
Sales and Marketing:
Contact
Technical Support:
Professional User
0
NO111B_NX211B User Manual
AVerMedia Technologies, Inc
www.avermedia.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVerAI NO111B and is the answer not in the manual?

Questions and answers

Summary of Contents for Avermedia AVerAI NO111B

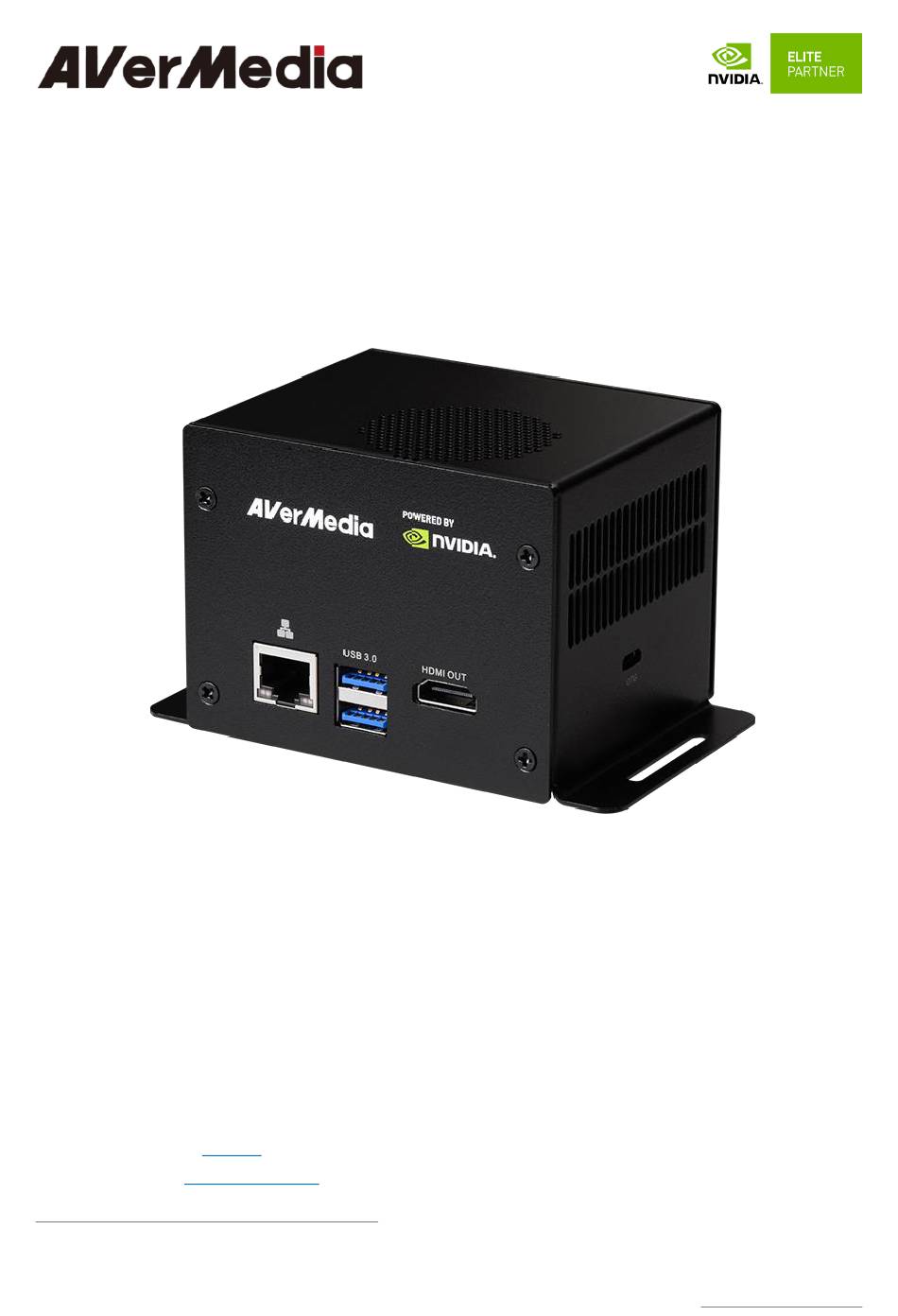

  • Page 1 AVerAI NO111B/NX211B Box PC ® Designed for NVIDIA Jetson Nano(Version B01)/ Xavier NX modules AVerMedia Technologies, Inc. No. 135, Jian 1st Rd., Zhonghe Dist., New Taipei City 23585, Taiwan Tel: 886-2-2226-3630 Fax: 886-2-3234-4842 Sales and Marketing: Contact Technical Support: Professional User...
  • Page 2: Table Of Contents

    Disclaimer ___________________________________________________________________ 3 Technical Support __________________________________________________________ 3 Contact Enquiry ____________________________________________________________ 3 Download User Manual ____________________________________________________ 3 Revision History_____________________________________________________________ 3 AVerMedia Global Offices _________________________________________________ 4 Limited Product Warranty _________________________________________________ 5 Copyright Notice ____________________________________________________________ 5 Trademark Acknowledgement _____________________________________________ 6 ESD Warning ________________________________________________________________ 6 1.0 Introduction .....................
  • Page 3 8.1 Fan Module/ Adapter/ Power Cord __________________________________ 27 9.0 Dimension Drawings and Assembly Drawings ........34 9.1 Dimension Drawings of carrier board _______________________________ 34 9.2 Dimension Drawing of NO111B/ NX211B Box PC _________________ 35 NO111B_NX211B User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 4: Preface

    The information contained in this user manual, including but not limited to any product specification is subject to change without notice. AVerMedia assumes no liability for any damages incurred directly or indirectly from any technical or typographical errors or omissions contained herein or for discrepancies between the product and the user manual.
  • Page 5: Avermedia Global Offices

    AVerMedia Global Offices https://www.avermedia.com/professional/contact NO111B_NX211B User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 6: Limited Product Warranty

    AVerMedia provides the one-year product warranty. Should this product, in AVerMedia's opinion, fail to be in the good working order during the warranty period, AVerMedia will, at its option, repair or replace it at no charge, provided that the product has not been subjected to abuse, misuse, accident, disaster, or non-AVerMedia authorized modification or repair.
  • Page 7: Trademark Acknowledgement

    ESD Warning Electronic components and circuits are sensitive to Electrostatic Discharge (ESD). When handling any circuit board assemblies including AVerMedia AVerAI products, it is highly recommended that ESD safety precautions can be observed. ESD safe best practices can include, but are not limited to the following ones.
  • Page 8: Introduction

    Box PC’s which is all developed for NVIDIA ® Jetson Nano(Version B01)/ Xavier NX modules. AVerAI NO111B/ NX211B provides not only the access to a great list of latest ® interfaces on NVIDIA Jetson Nano(Version B01)/ Xavier NX modules but also one RJ-45 interface and one RTC battery as the function enrichment.
  • Page 9: Product Specifications

    Support RTC battery and Battery Life Monitoring by MCU W: 91.4mm x L: 76.6mm x H: 70mm (3.60” x 3.02” x 2.76”) Dimension/ Weight Weight: 495g Accessory 12V/5A adapter and power cord Certifications CE, FCC, KC NO111B_NX211B User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 10: Option Accessory

    Manufacturer: APPRO.PHO B-04: IMX179(8M)MIPI, 1080P(30fps) C-04: IMX290(2M)MIPI, 1080P(30fps) MIPI Camera (internal I/O) C-05: IMX290(2M)+ISP(YUV), 1080P(30fps)  For 36 pin MIPI connector  Manufacturer: APPRO.PHO B-03: IMX334(4K) MIPI, 4K(30fps) A-06: IMX334(4K) V-by-One® HS x1, 4K(30fps) NO111B_NX211B User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 11: Product Overview

    2.0 Product Overview 2.1 Block Diagram NO111B_NX211B User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 12: Front View And Back View Of Carrier Board

    Front View and Back View of Carrier board NO111B_NX211B User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 13: Front View And Three-Quarter View Of No111B/ Nx211B Boxpc

    2.3 Front View and Three-Quarter View of NO111B/ NX211B BoxPC NO111B_NX211B User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 14 NO111B_NX211B User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 15: Connector Summary

    20-pin GPIO expansion Gigabit Ethernet connector USB 3.1 Gen 1 Type-A connectors HDMI 2.0 connector Micro SD card slot 2.5 Switch Summary Designation Description RECOVERY button POWER on button Fan PWM controller/Auto Power on NO111B_NX211B User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 16: Feature Description

    3.0 Feature Description 3.1 Connector and Switch Locations This connector is removed for box PC -> NO111B_NX211B User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 17: Serdes (V-By-One® Hs)

    3.2 SerDes (V-by-One® HS) Function MIPI camera module connector Location Type Description WAFER_1*36PIN_0.5㎜_180° Manufacturer and PINREX 979-44-93610A_ZIF FPC Part Number Mating Connector 4 Lane MIPI CSI-2 camera connector (36PIN) PIN OUT NO111B_NX211B User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 18: Jetson Nano Connector

    3.4 Fan Power connector Function Fan Power Connector Location Type Description WAFER_1*4PIN_1.25㎜_90° Manufacturer ACES 50271-0040N-001_BLACK and Part Number Pin # Description PIN 1 Pinout PIN 2 Power +5V PIN 3 FAN_TACH PIN 4 FAN_PWM Remarks None NO111B_NX211B User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 19: Mipi Csi-2 Dphy Lanes

    3.5 MIPI CSI-2 DPHY Lanes Function MIPI camera module connector Location J4 , J5 Type WAFER_15PIN_1㎜_90° Description Manufacturer CHAMPWAY AFA07-S15FCA-HF_FPC and Part ZIF-LOWER Number Mating 2 Lane MIPI CSI-2 camera connector (15Pin) Connector Pinout NO111B_NX211B User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 20: Rtc Battery Connector

    Location Type Description USB micro-type B female connector Manufacturer Fullglory, FG-MCB-111440 and Part Number Mating Any USB standard Micro-type Connector interface cable or device. Please refer to USB Micro-type Pinout standard. Remarks None NO111B_NX211B User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 21: 20-Pin Gpio Expansion

    3.8 20-Pin GPIO expansion Function General-purpose input/output) Location Type Description 2x I2C, 1x UART, 9x GPIOs Manufacturer and 光桀_PHPME006-100ARRH Part Number Mating Connector 20-Pin GPIO expansion NO111B Pinout NX211B NO111B_NX211B User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 22: Gigabit Ethernet Connector

    Location Type Description RJ45 8P8C single-port with LED Manufacturer and Champway, 8188D-B514-00200 Part Number Any RJ45 plug with Cat5, Cat5e, Cat6 Mating Connector type cabling. Pinout Comply with Ethernet standards. Remarks None NO111B_NX211B User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 23: Usb 3.1 Gen 1 Type-A Connector #1 And #2

    Location J12: HDMI Type Description HDMI Type-A female connector Manufacturer and Compupack, ACNHM220028-001 Part Number Any HDMI standard Type-A interface Mating Connector cable or device. Pinout Please refer to HDMI standard. Remarks None NO111B_NX211B User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 24: Optional Function Selection

    3.14 Other Switches and Jumpers Other switches and jumpers listed on the boards but not mentioned in this manual are reserved for the internal use by AVerMedia. They are not open to the client application. NO111B_NX211B User Manual AVerMedia Technologies, Inc...
  • Page 25: Installation

    BSP (board support package) file: EN715-NX-R1.0.*.tar.gz for NX211B https://www.avermedia.com/professional/download/en715#parentHorizontalTab2 Default login username/password of the BSP is nvidia/nvidia If you have difficulties to access the BSP download link, please visit AVerMedia website at https://www.avermedia.com/professional/download, or contact technical support at https://www.avermedia.com/professional/technical_support or e-mail us at eusupport@avermedia.com for further assistance.
  • Page 26: Software

    Note: sudo is required to re-flash the BSP. 5.0 Software For L4T (Linux for Tegra) BSP support and the other software support associated with NVIDIA® Jetson Nano / Xavier NX , please visit AVerMedia website to contact our technical support function. (https://www.avermedia.com/tw/support/contact) 6.0 Force Recovery Mode ®...
  • Page 27: Power Consumption

    (maximum power consumption up to 60W based on adapter ) The power consumption under the normal operating mode is depending Typical System ® on the application software running with NVIDIA Jetson Nano Power Consumption /Xavier NX. NO111B_NX211B User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 28: Accessory Drawings

     Operating Voltage Range: 4V~5.5V  Rated Speed: 6000RPM±10% (Testing Speed After Continuous 3 Minute Operation At Ambient Temperature Of 25 ℃)  Life Expectancy: 70,000hours at 40℃ (WITH 15~65% RH)  Bearing Type: Two Ball NO111B_NX211B User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 29  Operating Voltage Range: 4V~5.5V  Rated Speed: 6000RPM±10% (Testing Speed After Continuous 3 Minute Operation At Ambient Temperature Of 25 ℃)  Life Expectancy: 70,000hours at 40℃ (WITH 15~65% RH)  Bearing Type: Two Ball NO111B_NX211B User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 30 NO111B_NX211B User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 31 Power Adapter 04131HGOUANK 64APOWERBRX-IPD (TW version) NO111B_NX211B User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 32 064APOWERBR2-IPD (US version) 064APOWERBRW-IPD (UK version) NO111B_NX211B User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 33 064APOWERBR5-IPD (EU version) NO111B_NX211B User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 34 064APOWERBSL (JP version) 064APOWERBR4-IPD (CN version) NO111B_NX211B User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 35: Dimension Drawings And Assembly Drawings

    Dimension Drawings and Assembly Drawings Dimension Drawings of carrier board NO111B_NX211B User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 36: Dimension Drawing Of No111B/ Nx211B Box Pc

    Dimension Drawing of NO111B/ NX211B Box PC NO111B_NX211B User Manual AVerMedia Technologies, Inc www.avermedia.com...
  • Page 37 NO111B_NX211B User Manual AVerMedia Technologies, Inc www.avermedia.com...
