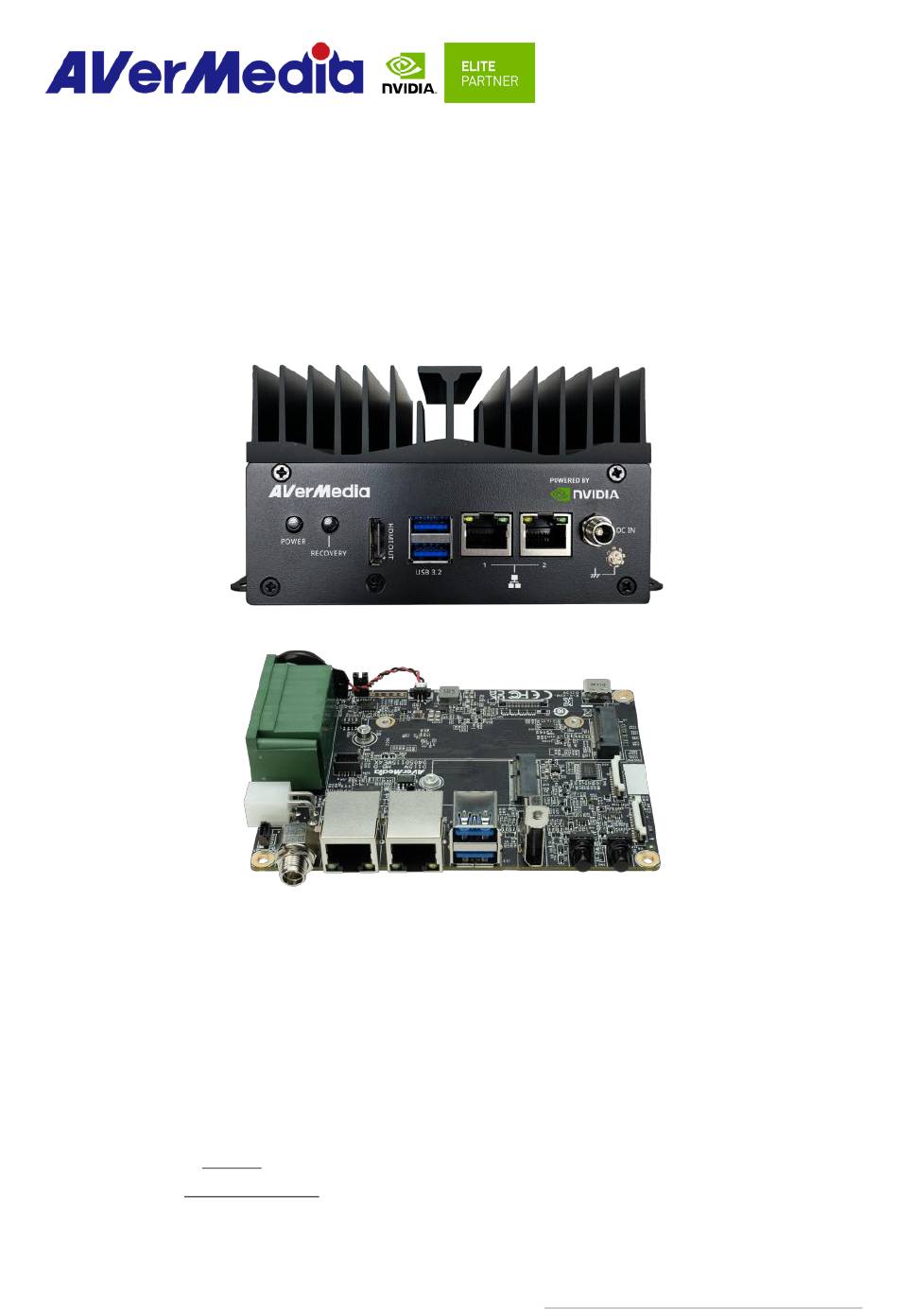

AVerMedia D115W (5G) Carrier board and

D115WOXB/ONB (5G) Box PC

Applies to NVIDIA

Jetson Orin NX/Orin Nano module

AVerMedia Technologies, Inc.

No. 135, Jian 1st Rd., Zhonghe Dist., New Taipei City 23585, Taiwan

Tel: 886-2-2226-3630

Fax: 886-2-3234-4842

Sales and Marketing: Contact

Technical Support: Professional User

D115W 5G Series User Manual

https://www.avermedia.com/professional/

Need help?

Do you have a question about the D115W and is the answer not in the manual?

Questions and answers

Summary of Contents for Avermedia D115W

Page 1 AVerMedia D115W (5G) Carrier board and D115WOXB/ONB (5G) Box PC ® Applies to NVIDIA Jetson Orin NX/Orin Nano module AVerMedia Technologies, Inc. No. 135, Jian 1st Rd., Zhonghe Dist., New Taipei City 23585, Taiwan Tel: 886-2-2226-3630 Fax: 886-2-3234-4842 Sales and Marketing: Contact...
Page 2 3.11 USB type C Connector __________________________________ 26 3.12 20-Pin GPIO expansion _________________________________ 26 3.13 Fan Power connector ___________________________________ 27 3.14 DIP Switch #1 (Mode) __________________________________ 27 3.15 DIP Switch #2 (UART) __________________________________ 27 3.16 power Button __________________________________________ 28 D115W 5G Series User Manual https://www.avermedia.com/professional/...
Page 3 9.0 Dimension Drawings and Assembly Drawings ........50 9.1 Dimension Drawings of carrier board _______________________ 50 9.2 Dimension Drawing of Box PC _____________________________ 52 9.3 Dimension Drawing of D115WOXB (5G) + OOB Box PC _______ 54 D115W 5G Series User Manual https://www.avermedia.com/professional/...
Page 4 For more information of our products, pricing, and order placement, please fill in our inquiry form here, we will contact you within 24 hours. Download User Manual Please click the link here to download the file of this user manual from AVerMedia website. D115W 5G Series User Manual https://www.avermedia.com/professional/...
Page 5 Revision History Revision Date Updates Version 0.1 Sep, 06, 2024 Released Version 0.2 Sep, 30, 2024 Add OOB setting information (4.0 &6.0) D115W 5G Series User Manual https://www.avermedia.com/professional/...
Page 6 AVerMedia Global Offices https://www.avermedia.com/contact-us D115W 5G Series User Manual https://www.avermedia.com/professional/...
Page 7 AVerMedia provides the three-year product warranty. Should this product, in AVerMedia's opinion, fail to be in the good working order during the warranty period, AVerMedia will, at its option, repair or replace it at no charge, provided that the product has not been subjected to abuse, misuse, accident, disaster, or non-AVerMedia authorized modification or repair.
Page 8 5. Do NOT leave this device in an un-controlled environment with temperatures beyond the device’s permitted storage temperature to avoid damage. 6. All adaptors and cables supplied by AVerMedia are verified. Do NOT use any others not supplied by AVerMedia to avoid any malfunction or fires.
Page 9 (3) Exposure to moisture (4) Liquid intrusion into the device (5) Any obvious signs of damage displayed on the device (6) Device is not working as expected or in a manner as described in this manual D115W 5G Series User Manual https://www.avermedia.com/professional/...
Page 10 NVIDIA® Jetson Orin NX/Orin Nano modules. D115W (5G)/D115WOXB/ONB (5G) provide HDMI video output , two USB 3.2 ports, two GbE RJ-45 port, 20-pin expansion header, and one USB 2.0 type C port for recovery.
Page 11 Heat sink with fan (optional) Buttons Power and Recovery RTC Battery Support RTC battery and Battery Life Monitoring by MCU Dimensions 120mm x 90mm(4.72” x 3.54”), Weight: 125 g Certifications CE, FCC, VCCI, KC D115W 5G Series User Manual https://www.avermedia.com/professional/...
Page 12 Fanless solution Buttons Power and Recovery RTC Battery Support RTC battery and Battery Life Monitoring by MCU Dimensions 126mm x 96mm x 73.9mm(4.96” x 3.78” x 2.91”), weight : 1kg Certifications CE, FCC, VCCI, KC D115W 5G Series User Manual https://www.avermedia.com/professional/...
Page 13 EU/JP/TW/US/CN/UK/AU For 22 pin MIPI connector raspberry pi camera v2 IMX 219/ raspberry pi camera v3 Manufacturer: APPRO.PHO MIPI Camera ◼ B-04: IMX179(8M)MIPI, 1080P(30fps) (internal I/O) ◼ C-04: IMX290(2M)MIPI, 1080P(30fps) ◼ C-05: IMX290(2M)+ISP(YUV), 1080P(30fps) D115W 5G Series User Manual https://www.avermedia.com/professional/...
Page 14 2.0 Product Overview 2.1 Block Diagram for Orin NX D115W 5G Series User Manual https://www.avermedia.com/professional/...
Page 15 2.2 Front View and Back View of Carrier board D115W 5G Series User Manual https://www.avermedia.com/professional/...
Page 16 2.3 Front View and Three-Quarter View of BoxPC Left view Right view D115W 5G Series User Manual https://www.avermedia.com/professional/...
Page 17 Top view Front view D115W 5G Series User Manual https://www.avermedia.com/professional/...
Page 18 Rear view Bottom view D115W 5G Series User Manual https://www.avermedia.com/professional/...
Page 19 2.4 Connector Summary Top View Interface SO-DIMM 260-pin 90° SMD Socket(H-9.2mm) Fan Wafer D115W 5G Series User Manual https://www.avermedia.com/professional/...
Page 20 WDT function setting PSE Board Connector (Maximum 15W) DIP switch #2 (UART) 5G Board Connector #1 (Power) 5G Board Connector #2 (Signal) OOB Board Connector #1 (NC-SI) OOB Board Connector #2 (Signal & Power) D115W 5G Series User Manual https://www.avermedia.com/professional/...
Page 21 Manufacturer 宏致_ACES and Part Number 50271-00201-001 Mating Molex 51021-8602 Connector Pin # Description Pinout PIN1 PIN2 3V Power Remarks RTC Battery: KTS, CR2032 3V 3.3 ATX 4P Function ATX 4P Location Type WAFER_2*2PIN Description D115W 5G Series User Manual https://www.avermedia.com/professional/...
Page 22 DCD 020 105B Number Mating Any 2.5mm power plug cable Connector Pin Number Description 9-24V Power Pinout Remarks 3.5 HDMI OUTPUT Function HDMI output connector Location HDMI Type-A female Type Description connector Manufacturer and Compupack, D115W 5G Series User Manual https://www.avermedia.com/professional/...
Page 23 Any M.2 M key 2280 card standard Mating Connector interface device. Please refer to M.2 M key card standard Pinout for the pinout details. Support PCIe Gen4 x4 for Orin NX Remarks Support PCIe Gen3 x4 for Orin Nano D115W 5G Series User Manual https://www.avermedia.com/professional/...
Page 24 CSI3_D0_N Pin2 CAM1_I2C_SDA Pin13 Pin3 CAM1_I2C_SCL Pin14 CSI2_CLK_P Pin4 Pin15 CSI2_CLK_N Pin5 CAM1_MCLK Pin16 Pin6 CAM1_/PWDN Pin17 CSI2_D1_P Pin7 Pin18 CSI2_D1_N Pin8 CSI3_D1_P Pin19 Pin9 CSI3_D1_N Pin20 CSI2_D0_P Pin10 Pin21 CSI2_D0_N Pin11 CSI3_D0_P Pin22 D115W 5G Series User Manual https://www.avermedia.com/professional/...
Page 25 Location J15, J16 Type RJ45 with integrated magnetics Description Manufacturer 建倚, MJ45-111QC4A-GY-S307 and Part 1G-LEFT(G)+RIGHT(Y)-DOWN Number Mating Any standard 1Gb Ethernet mating Connector connector can be applicable. Pinout Comply with Ethernet standards. LED indicator D115W 5G Series User Manual https://www.avermedia.com/professional/...
Page 26 Data transmission Blinking or receiving is occurring 100M No data transmission or receiving is occurring J15 is via I210 Ethernet controller and J16 is directly from NVIDIA Remarks Jetson SOM. (Maximum 15W) Option: J16 D115W 5G Series User Manual https://www.avermedia.com/professional/...
Page 27 Please refer to USB type C standard. Remarks USB2.0 Only(Device Mode) 3.12 20-Pin GPIO expansion Function General-purpose input/output Location Type Description Expansion I/O Connector Manufacturer and ME252-35020-1 Part Number Mating Connector 20-Pin GPIO expansion Pinout GPIO uses 3.3V Remarks D115W 5G Series User Manual https://www.avermedia.com/professional/...
Page 28 DIPTRONICS IN OFF-SWITCHING Part Number 0.025A/24VDC Pinout Default SW2 all OFF Remark 3.15 DIP Switch #2 (UART) Function OOB UART/IO UART Location Type Description 2 SPST DIP switch Manufacturer and DIPTRONICS IN OFF-SWITCHING Part Number 0.025A/24VDC D115W 5G Series User Manual https://www.avermedia.com/professional/...
Page 29 Off GUI. If no operation is performed, the system will Remark automatically power off in 60 seconds. • When D115W is ON, holding the button for more than 5 seconds will force a full system power down. 3.17 Recover Button...
Page 30 Part Number 50238-01241-001 PIN# Description PIN# Description PWR_IN Pin1 Pin2 PWR_IN Pin3 Pin4 Pinout Pin5 54V Pin6 SYS_RST* Pin7 54V Pin8 I2C1_SCL * Pin9 PortN_OUT0 Pin10 I2C1_SDA Pin11 POE_P0 Pin12 Remarks For optional PSE board D115W 5G Series User Manual https://www.avermedia.com/professional/...
Page 31 3.21 OOB Board Connector #2 (Signal & Power) (Ver.B) Function OOB board connector #2 (signal & power) Location Type WAFER_1*10PIN_1 ㎜_180°_SMD Description Manufacturer ACES and Part 50228-01071-001 Number Mating ACES Connector 50233-010H0H0-001 Pinout PIN# Description Pin1 D115W 5G Series User Manual https://www.avermedia.com/professional/...
Page 32 Pin3 CARRIER_PWR_ON Pin4 Pin5 Remarks For optional 5G daughter board, power only(9-24V) 3.23 5G Board Connector #2 (Signal) Function 5G board connector #2 (signal) Location Type WAFER_30PIN_0.4 ㎜_90°_SMD Description Manufacturer 旺昌_KEL and Part USL00-30L_IDC D115W 5G Series User Manual https://www.avermedia.com/professional/...
Page 33 Other Switches and Jumpers Other switches and jumpers listed on the boards but not mentioned in this manual are reserved for the internal use by AVerMedia. They are not open to the client application. D115W 5G Series User Manual https://www.avermedia.com/professional/...
Page 34 OOB Board Connector #2 (Signal & Power) (Ver.B) Function OOB board connector #2 (signal & power) Location Type WAFER_1*10PIN_1 ㎜_180°_SMD Description Manufacturer ACES and Part 50228-01071-001 Number Mating ACES Connector 50233-010H0H0-001 Pinout PIN# Description Pin1 D115W 5G Series User Manual https://www.avermedia.com/professional/...
Page 35 When OOB NC-SI functionality is supported, it means that both OOB (Out-of-Band) and inband communication share the same network cable. Please note that you only need to connect to Ethernet 2 and do not need to connect to the OOB port. D115W 5G Series User Manual https://www.avermedia.com/professional/...
Page 36 4.5 Gigabit Ethernet connection setting (RMII) When OOB RMII functionality is supported, please note that both Ethernet 2 and the OOB port need to be connected. D115W 5G Series User Manual https://www.avermedia.com/professional/...
Page 37 If you want to get the BSP download link, Please contact with AVerMedia FAE. Default login username/password of the BSP is nvidia/nvidia If you have difficulties to access the BSP download link, please visit AVerMedia website at https://www.avermedia.com/professional/download, or contact technical support at https://www.avermedia.com/professional/technical_support or e-mail us at...
Page 38 $ sudo nvpmodel -m <x> * Current default power mode: D115WOXB : 15W (2) RTC Battery The following command can get RTC battery voltage. $ sudo avt_tool -a | grep -oP "AIN5.*\[\K[^\]]*" D115W 5G Series User Manual https://www.avermedia.com/professional/...
Page 39 $ cat /sys/devices/platform/39c0000.tachometer/hwmon/hwmon<y>/rpm * Where <x> and <y> are dynamic hwmon indexes MIPI CSI Camera There are 2x 2-lane and 1x 4-lane MIPI CSI camera supported on D115W, for current supported products type are listing as below: * IMX219 (2-lane) * IMX477 (2-lane): IMX477 requires a hardware modification in order to work with Jetson Platforms.
Page 40 0 3280 2464 1 1920 1080 2 3280 1698 3 2096 1084 4 1640 1232 5 820 6 820 $ gst-launch-1.0 nvarguscamerasrc sensor-id=0 ! 'video/x-raw(memory:NVMM), width=(int)3280, height=(int)2464, format=(string)NV12, framerate=(fraction)15/1' ! queue ! nvvidconv ! xvimagesink -e D115W 5G Series User Manual https://www.avermedia.com/professional/...
Page 41 $ gst-launch-1.0 nvarguscamerasrc sensor-id=0 ! 'video/x-raw(memory:NVMM), width=(int)1948, height=(int)1096, format=(string)NV12, framerate=(fraction)60/1' ! queue ! nvvidconv ! xvimagesink -e > IMX290ISP : No width height framerate 0 1920 1080 25/30/50/60 1 1280 25/30/50/60 2 1280 25/30/50/60 0 800 25/30/50/60 D115W 5G Series User Manual https://www.avermedia.com/professional/...
Page 42 # 2. Setup CAN Bus $ sudo ip link set can0 type can bitrate 500000 dbitrate 2000000 berr-reporting on fd on restart-ms 100 $ sudo ip link set can0 up (2) Receive and Send D115W 5G Series User Manual https://www.avermedia.com/professional/...
Page 43 $ sudo su $ gpio_id=483 $ echo $gpio_id >/sys/class/gpio/unexport For L4T (Linux for Tegra) BSP support and the other software support associated with NVIDIA® Jetson Orin NX, please visit AVerMedia website to contact our technical support D115W 5G Series User Manual https://www.avermedia.com/professional/...
Page 44 NVIDIA® Orin NX will show up on the USB list of the host system as a new NVIDIA target device. After the system software is updated successfully, please ensure to power off the system. A clean power-on will then revert Jetson platform port back to the host mode. D115W 5G Series User Manual https://www.avermedia.com/professional/...
Page 45 (maximum power consumption up to 60W based on adapter ) The power consumption under the normal operating mode is depending Typical System on the application software running with NVIDIA Jetson Orin NX ® Power Consumption D115W 5G Series User Manual https://www.avermedia.com/professional/...
Page 46 ◼ Operating Voltage Range: 3.5V~5.5V ◼ Rated Speed: 7000RPM±10% (Testing Speed After Continuous 3 Minute Operation At Ambient Temperature Of 25℃) ◼ Life Expectancy: 70,000hours at 40℃ (WITH 15~65% RH) ◼ Bearing Type: Two Ball D115W 5G Series User Manual https://www.avermedia.com/professional/...
Page 47 Power Adapter 04131HGOUANK 64APOWERBRX-IPD (TW version) D115W 5G Series User Manual https://www.avermedia.com/professional/...
Page 48 064APOWERBR2-IPD (US version) 064APOWERBRW-IPD (UK version) D115W 5G Series User Manual https://www.avermedia.com/professional/...
Page 49 064APOWERBR5-IPD (EU version) D115W 5G Series User Manual https://www.avermedia.com/professional/...
Page 50 064APOWERBSL (JP version) 064APOWERBR4-IPD (CN version) D115W 5G Series User Manual https://www.avermedia.com/professional/...
Page 51 9.0 Dimension Drawings and Assembly Drawings 9.1 Dimension Drawings of carrier board D115W 5G Series User Manual https://www.avermedia.com/professional/...
Page 52 D115W 5G Series User Manual https://www.avermedia.com/professional/...
Page 53 9.2 Dimension Drawing of Box PC D115W 5G Series User Manual https://www.avermedia.com/professional/...
Page 54 D115W 5G Series User Manual https://www.avermedia.com/professional/...
Page 55 9.3 Dimension Drawing of D115WOXB (5G) + OOB Box PC D115W 5G Series User Manual https://www.avermedia.com/professional/...
Page 56 D115W 5G Series User Manual https://www.avermedia.com/professional/...
