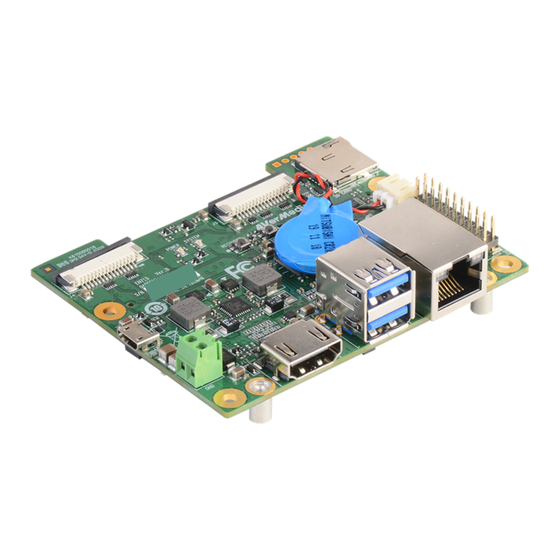

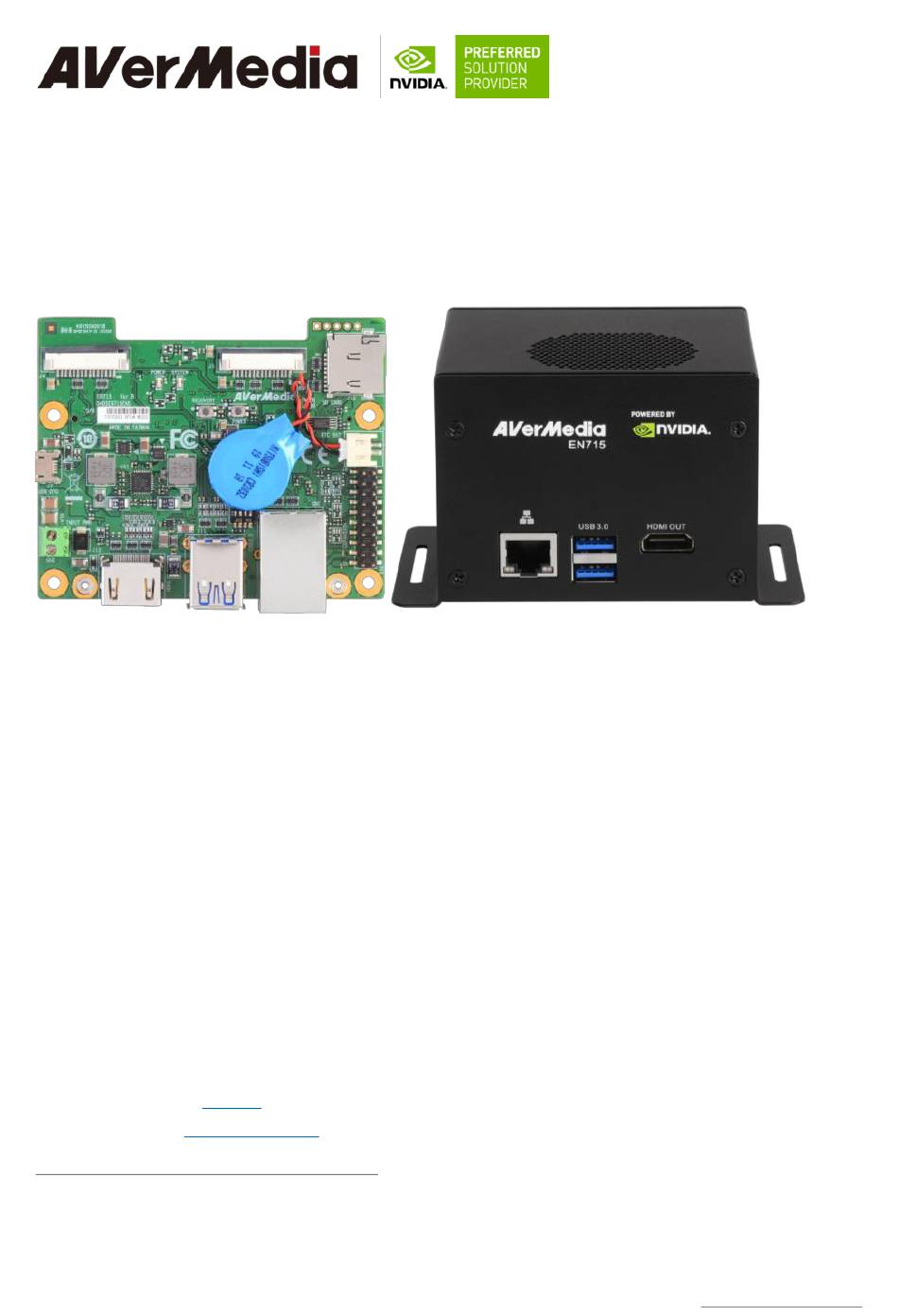

AVerAI EN715 Carrier Board and Box PC
Designed for NVIDIA
AVerMedia Technologies, Inc.
No. 135, Jian 1st Rd., Zhonghe Dist., New Taipei City 23585, Taiwan
Tel: 886-2-2226-3630
Fax: 886-2-3234-4842
Sales and Marketing:
Contact
Technical Support:
Professional User
EN715 User Guide
®
Jetson Nano
0
AVerMedia Technologies, Inc
TM
/ Xavier NX
www.avermedia.com
Advertisement
Table of Contents
Related Manuals for Avermedia AVerAI EN715
Summary of Contents for Avermedia AVerAI EN715
- Page 1 AVerAI EN715 Carrier Board and Box PC ® Designed for NVIDIA Jetson Nano / Xavier NX AVerMedia Technologies, Inc. No. 135, Jian 1st Rd., Zhonghe Dist., New Taipei City 23585, Taiwan Tel: 886-2-2226-3630 Fax: 886-2-3234-4842 Sales and Marketing: Contact Technical Support:...
-
Page 2: Table Of Contents
Disclaimer _____________________________________________________________________________________ 3 Technical Support ____________________________________________________________________________ 3 Contact Enquiry ______________________________________________________________________________ 3 Download User Manual ______________________________________________________________________ 3 Revision History ______________________________________________________________________________ 3 AVerMedia Global Offices ___________________________________________________________________ 4 Limited Product Warranty __________________________________________________________________ 5 Copyright Notice______________________________________________________________________________ 5 Trademark Acknowledgement_______________________________________________________________ 6 ESD Warning _________________________________________________________________________________ 6 Introduction ............................ - Page 3 8.1 Power Cable, Fan Module and Adapter and Power Cord __________________________ 28 Dimension Drawings and Assembly Drawings ..............34 9.1 Dimension Drawings of EN715 _______________________________________________________ 34 9.2 Dimension Drawing of EN715 Box PC _______________________________________________ 35 EN715 User Guide AVerMedia Technologies, Inc www.avermedia.com...
-
Page 4: Preface
The information contained in this user manual, including but not limited to any product specification is subject to change without notice. AVerMedia assumes no liability for any damages incurred directly or indirectly from any technical or typographical errors or omissions contained herein or for discrepancies between the product and the user manual. -
Page 5: Avermedia Global Offices
AVerMedia Global Offices EN715 User Guide AVerMedia Technologies, Inc www.avermedia.com... -
Page 6: Limited Product Warranty
AVerMedia provides the one-year product warranty. Should this product, in AVerMedia's opinion, fail to be in the good working order during the warranty period, AVerMedia will, at its option, repair or replace it at no charge, provided that the product has not been subjected to abuse, misuse, accident, disaster, or non-AVerMedia authorized modification or repair. -
Page 7: Trademark Acknowledgement
ESD Warning Electronic components and circuits are sensitive to Electrostatic Discharge (ESD). When handling any circuit board assemblies including AVerMedia AVerAI products, it is highly recommended that ESD safety precautions can be observed. ESD safe best practices can include, but are not limited to the following ones. -
Page 8: Introduction
(Version B01) / Xavier™ NX modules. Jetson Nano AVerAI EN715 provides not only the access to a great list of latest interfaces on Xavier™ NX modules but also one RJ-45 interface and one RTC battery as the function enrichment. EN715 provides one 4Kp60 HDMI video output, two USB 3.0 ports, one GbE RJ-45 port, 20-pins GPIO expansion, and one Micro-B USB 2.0 port for recovery. -
Page 9: Product Specifications
Support RTC battery and Battery Life Monitoring by MCU Dimension/ Weight W: 87mm x L: 70.6mm x H: 27.3mm (3.43” x 2.78” x 1.07”), Weight: 70g Accessory DC Jack Power Extension Cable (5.5 x 2.5mm x 30cm) Certifications CE, FCC, KC EN715 User Guide AVerMedia Technologies, Inc www.avermedia.com... -
Page 10: Option Accessory
C-04: IMX290(2M)MIPI, 1080P(30fps) C-05: IMX290(2M)+ISP(YUV), 1080P(30fps) MIPI Camera – For 36 pin MIPI connector B-03: IMX334(4K) MIPI, 4K(30/60fps) B-13: IMX334(4K)+ISP(YUV) , 4K(30fps) A-03: IMX290(FHD) V-by-One® HS, 1080P(60fps) A-06: IMX334(4K) V-by-One® HS x1, 4K(30fps) EN715 User Guide AVerMedia Technologies, Inc www.avermedia.com... -
Page 11: Product Overview
2.0 Product Overview 2.1 Block Diagram EN715 User Guide AVerMedia Technologies, Inc www.avermedia.com... -
Page 12: Front View And Back View Of En715
Front View and Back View of EN715 EN715 User Guide AVerMedia Technologies, Inc www.avermedia.com... -
Page 13: Front View And Three-Quarter View Of En715 Boxpc
2.3 Front View and Three-Quarter View of EN715 BoxPC 2.4 Connector Summary EN715 User Guide AVerMedia Technologies, Inc www.avermedia.com... - Page 14 2 Lane MIPI CSI-2 camera connector RTC battery connector EN715-BBC2 USB 2.0 Micro-B 20-pin GPIO expansion Power connector Gigabit Ethernet connector USB 3.1 Gen 1 Type-A connectors HDMI 2.0 connector Micro SD card slot EN715 User Guide AVerMedia Technologies, Inc www.avermedia.com...
-
Page 15: Switch Summary
Power connector Gigabit Ethernet connector USB 3.1 Gen 1 Type-A connectors HDMI 2.0 connector Micro SD card slot 2.5 Switch Summary Designation Description RECOVERY button POWER on button Fan PWM controller/Auto Power on EN715 User Guide AVerMedia Technologies, Inc www.avermedia.com... -
Page 16: Feature Description
3.0 Feature Description 3.1 Connector and Switch Locations EN715 User Guide AVerMedia Technologies, Inc www.avermedia.com... -
Page 17: Serdes (V-By-One® Hs)
3.2 SerDes (V-by-One® HS) Function MIPI camera module connector Location Type Description WAFER_1*36PIN_0.5㎜_180° Manufacturer and PINREX 979-44-93610A_ZIF FPC Part Number Mating Connector 4 Lane MIPI CSI-2 camera connector (36PIN) PIN OUT EN715 User Guide AVerMedia Technologies, Inc www.avermedia.com... -
Page 18: Jetson™ Nano/Nx Module Connector
3.4 Fan Power connector Function Fan Power Connector Location Type Description WAFER_1*4PIN_1.25㎜_90° Manufacturer ACES 50271-0040N-001_BLACK and Part Number Pin # Description PIN 1 Pinout PIN 2 Power +5V PIN 3 FAN_TACH PIN 4 FAN_PWM Remarks None EN715 User Guide AVerMedia Technologies, Inc www.avermedia.com... -
Page 19: Mipi Csi-2 Dphy Lanes
2 Lane MIPI CSI-2 camera connector (15Pin) Connector PIN# Description PIN# Description Pin1 Pin9 CSI0_CLK_P Pin2 CSI0_D0_N Pin10 Pin3 CSI0_D0_P Pin11 MIPI2_PWDN Pin4 Pin12 CAM2_MCLK Pin5 CSI0_D1_N Pin13 CSI0_I2C_SCL Pin6 CSI0_D1_P Pin14 CSI0_I2C_SDA Pinout Pin7 Pin15 +3V3_MIPI Pin8 CSI0_CLK_N EN715 User Guide AVerMedia Technologies, Inc www.avermedia.com... - Page 20 PIN# Description PIN# Description Pin1 Pin9 CSI2_CLK_P Pin2 CSI2_D0_N Pin10 Pin3 CSI2_D0_P Pin11 MIPI2_PWDN Pin4 Pin12 CAM2_MCLK Pin5 CSI2_D1_N Pin13 CSI2_I2C_SCL Pin6 CSI2_D1_P Pin14 CSI2_I2C_SDA Pin7 Pin15 +3V3_MIPI Pin8 CSI2_CLK_N EN715 User Guide AVerMedia Technologies, Inc www.avermedia.com...
-
Page 21: Rtc Battery Connector
Location Type Description USB micro-type B female connector Manufacturer Fullglory, FG-MCB-111440 and Part Number Mating Any USB standard Micro-type Connector interface cable or device. Please refer to USB Micro-type Pinout standard. Remarks None EN715 User Guide AVerMedia Technologies, Inc www.avermedia.com... -
Page 22: 20-Pin Gpio Expansion
3.8 20-Pin GPIO expansion Function General-purpose input/output） Location Type Description 2x I2C, 1x UART, 9x GPIOs Manufacturer and 光桀_PHPME006-100ARRH Part Number Mating Connector 20-Pin GPIO expansion Pinout EN715 User Guide AVerMedia Technologies, Inc www.avermedia.com... -
Page 23: Power Supply Connector
Location Type Description RJ45 8P8C single-port with LED Manufacturer and Champway, 8188D-B514-00200 Part Number Any RJ45 plug with Cat5, Cat5e, Cat6 Mating Connector type cabling. Pinout Comply with Ethernet standards. Remarks None EN715 User Guide AVerMedia Technologies, Inc www.avermedia.com... -
Page 24: Usb 3.1 Gen 1 Type-A Connector #1 And #2
Location J12: HDMI Type Description HDMI Type-A female connector Manufacturer and Compupack, ACNHM220028-001 Part Number Any HDMI standard Type-A interface Mating Connector cable or device. Pinout Please refer to HDMI standard. Remarks None EN715 User Guide AVerMedia Technologies, Inc www.avermedia.com... -
Page 25: Optional Function Selection
3.15 Other Switches and Jumpers Other switches and jumpers listed on the boards but not mentioned in this manual are reserved for the internal use by AVerMedia. They are not open to the client application. EN715 User Guide AVerMedia Technologies, Inc... -
Page 26: Installation
BSP (board support package) file: EN715-R1.0.*.4.*.tar.gz https://drive.google.com/drive/folders/11DBr14jZCZTtk8zJ-BormrY-cY8PIFeg Default login username/password of the BSP is nvidia/nvidia If you have difficulties to access the BSP download link, please visit AVerMedia website at https://www.avermedia.com/professional/download, or contact technical support at https://www.avermedia.com/professional/technical_support or e-mail us at eusupport@avermedia.com for further assistance. -
Page 27: Software
Note: sudo is required to re-flash the BSP. 5.0 Software For L4T (Linux for Tegra) BSP support and the other software support associated with NVIDIA® Jetson NanoTM / Xavier™ NX module, please visit Avermedia website to contact our technical support function. (https://www.avermedia.com/tw/support/contact) EN715 User Guide AVerMedia Technologies, Inc www.avermedia.com... -
Page 28: Force Recovery Mode
NVIDIA target device. 6. After the system software is updated successfully, please ensure to power off the system. A clean power-on will then revert OTG port back to the host mode. EN715 User Guide AVerMedia Technologies, Inc www.avermedia.com... -
Page 29: Power Consumption
NVIDIA Jetson Nano™ Xavier NX module on the carrier board or in the box PC’s. 8.0 Option Accessory Drawings 8.1 Power Cable, Fan Module and Adapter and Power Cord Part Number 064APOWERBXS EN715 User Guide AVerMedia Technologies, Inc www.avermedia.com... - Page 30 Nano Fan Module (Option) Nano & Xavier NX Module (Option) EN715 User Guide AVerMedia Technologies, Inc www.avermedia.com...
- Page 31 Power Adapter 04131HGOUANK 64APOWERBRX-IPD (TW version) EN715 User Guide AVerMedia Technologies, Inc www.avermedia.com...
- Page 32 064APOWERBR2-IPD (US version) 064APOWERBRW-IPD (UK version) EN715 User Guide AVerMedia Technologies, Inc www.avermedia.com...
- Page 33 064APOWERBR5-IPD (EU version) EN715 User Guide AVerMedia Technologies, Inc www.avermedia.com...
- Page 34 064APOWERBSL (JP version) 064APOWERBR4-IPD (CN version) EN715 User Guide AVerMedia Technologies, Inc www.avermedia.com...
-
Page 35: Dimension Drawings And Assembly Drawings
9.0 Dimension Drawings and Assembly Drawings 9.1 Dimension Drawings of EN715 EN715 User Guide AVerMedia Technologies, Inc www.avermedia.com... -
Page 36: Dimension Drawing Of En715 Box Pc
9.2 Dimension Drawing of EN715 Box PC EN715 User Guide AVerMedia Technologies, Inc www.avermedia.com...
