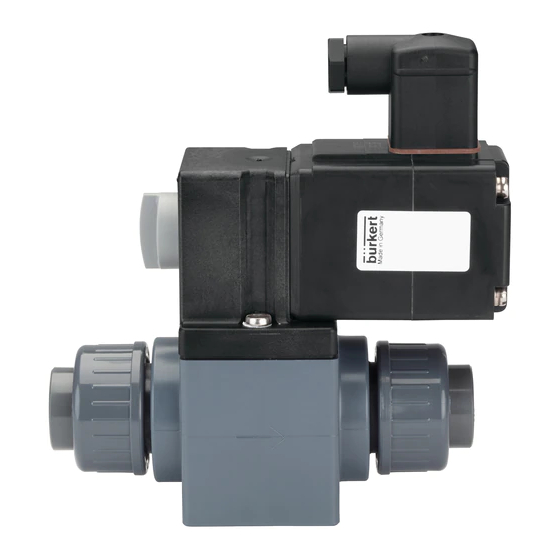

- Page 1 Type 0131 2/2- or 3/2-way solenoid valve 2/2- oder 3/2-Wege-Magnetventil Électrovanne 2/2 ou 3/2 voies Operating Instructions Bedienungsanleitung Manuel d‘utilisation...
- Page 2 Хабаровск +7 (421) 292-95-69 Санкт-Петербург +7 (812) 660-57-09 Калуга +7 (4842) 33-35-03 Ниж.Новгород +7 (831) 200-34-65 Челябинск +7 (351) 277-89-65 Саратов +7 (845) 239-86-35 Ярославль +7 (4852) 67-02-35 сайт: | эл. почта: burkert.pro-solution.ru btk@pro-solution.ru телефон: 8 800 511 88 70...
-
Page 3: Intended Use
OPERATING INSTRUCTIONS INTENDED USE The operating instructions contain important information. Incorrect use of the solenoid valve Type 0131 can be dangerous ▶ Read the operating instructions carefully and follow the safety to people, nearby equipment and the environment. instructions in particular, and also observe the operating conditions. -
Page 4: Basic Safety Instructions
BASIC SAFETY INSTRUCTIONS Risk of injury due to malfunction of valves with alternating current (AC)! These safety instructions do not make allowance for any contin- gencies and events which may arise during installation, operation Sticking core causes coil to overheat, resulting in a malfunction. and maintenance. -
Page 5: Technical Data
Circuit functions TECHNICAL DATA 2/2-way valve; closed in rest Operating conditions position The following values are indicated on the type label: • Voltage (Tolerance ± 10 %) / Current type 2/2-way valve; opened in rest • Coil power consumption (active power in W - at operating position temp.) •... - Page 6 Electrical operating conditions Intermittent operation for version with high-performance electronics AC/DC With high-performance elec- Without Characteristic values (according to DIN VDE 0580) tronics AC/DC electronics 50 Hz, 60 Hz – Cycle time – Duty cycle Ambient tem- max. +70 °C max.
-
Page 7: Application Conditions
Application conditions Permitted operating parameters Ambient temperature max. +50 °C Protection class IP65 in accordance with DIN EN 60529 / IEC 60529 with cable plug, e.g. Bürkert Type 2508 Operating duration Unless otherwise indicated on the type label, the solenoid system is suitable for continuous operation Switching frequency Important information for functional reliability during con-... - Page 8 Oil and grease-free liquids, cold and hot water, technical vacuum Conformity 4.2.2 Permitted media Permitted media depending on body material and sealing material In accordance with the EU Declaration of conformity, Type 0131 is compliant with the EU Directives. PVC Version: Standards Sealing...
-
Page 9: Type Label
Body material Type Risk of injury from high pressure in the equipment! ▶ Before loosening the pipes and valves, turn off the pressure and 0131 A 10,0 FKM vent the lines. P N 0 - 3 bar Connection thread, Operating... -
Page 10: Before Installation
Before installation NOTE! Installation position: any, actuator preferably upwards. Caution risk of breakage! Procedure: • Do not use the coil as a lever arm. → Check pipelines for dirt and clean. → Body with welded sleeve: Use PVDF. → Install a dirt filter before the valve inlet (≤ 500 µm). →... -
Page 11: Manual Control
Manual control Electrical connection of the cable plug CAUTION! WARNING! Discharge of medium due to loss of the O-rings! Risk of injury due to electrical shock! ▶ If the O-rings are lost, the valve will leak. Medium may be ▶ Before reaching into the system, switch off the power supply discharged. -
Page 12: Maintenance & Troubleshooting
MAINTENANCE, TROUBLESHOOTING Procedure: → Tighten cable plug (for permitted types see data sheet), observing Safety instructions max. torque 1 Nm. → WARNING! Check that seal is fitted correctly. → Connect protective conductor and check electrical continuity. Risk of injury from improper maintenance! ▶... -
Page 13: Overview Of Spare Parts
Overview of spare parts Malfunction Possible cause Valve does not switch Short-circuit or coil interrupted Coil set Medium pressure outside the permitted pressure range Manual control locked Valve does not close Internal space of the valve is dirty Manual control locked Wearing SPARE PARTS part set... -
Page 14: Transport, Storage, Disposal
TRANSPORT, STORAGE, DISPOSAL NOTE! Transport damages! Inadequately protected equipment may be damaged during transport. • During transportation protect the device against wet and dirt in shock-resistant packaging. • Avoid exceeding or dropping below the allowable storage temperature. • Protect electrical interfaces of the coil and the pneumatic connections from damage with protective caps. - Page 15 Хабаровск +7 (421) 292-95-69 Санкт-Петербург +7 (812) 660-57-09 Калуга +7 (4842) 33-35-03 Ниж.Новгород +7 (831) 200-34-65 Челябинск +7 (351) 277-89-65 Саратов +7 (845) 239-86-35 Ярославль +7 (4852) 67-02-35 сайт: | эл. почта: burkert.pro-solution.ru btk@pro-solution.ru телефон: 8 800 511 88 70...
