Burkert 0470 Operating Instructions Manual
3/2 or 4/2-way solenoid valve
Hide thumbs
Also See for 0470:
- Operating instructions manual (16 pages) ,
- Operating instructions manual (6 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Burkert 0470
Summary of Contents for Burkert 0470

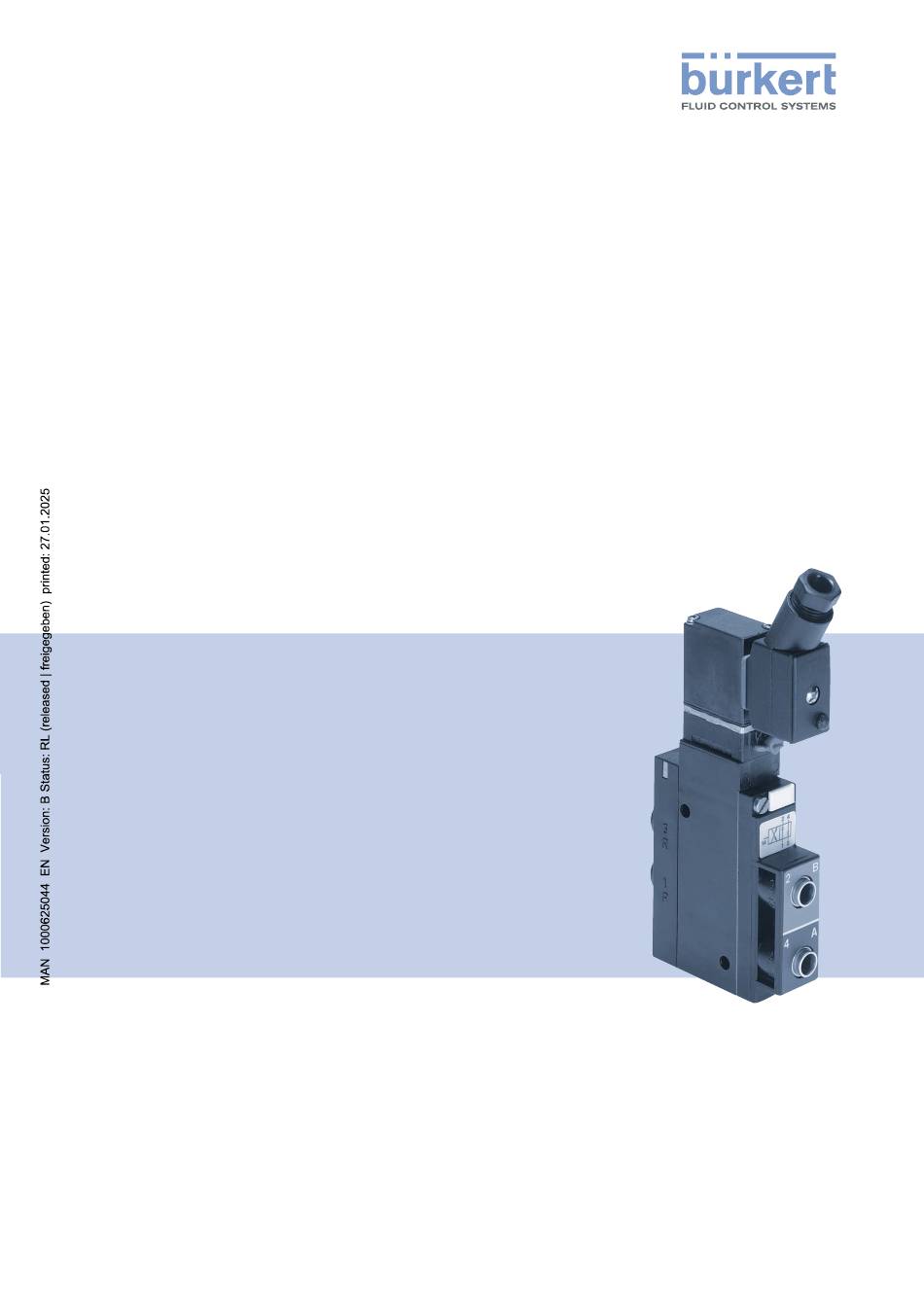

- Page 1 Type 0470, 5470 3/2 or 4/2-way solenoid valve Operating Instructions...
- Page 2 We reserve the right to make technical changes without notice. © Bürkert Werke GmbH & Co. KG, 2015 - 2025 Operating Instructions 2501/15_EUml_00803445 / Original DE...
-
Page 3: Table Of Contents
Type 0470, 5470 Table of contents The operating instructions Symbols Definition of the term “device” Intended use Basic safety instructions Restrictions Approvals Structure and Function Structure of the standard designs Circuit functions Technical Data Standards and directives Type label 6.3 Operating conditions 6.4 Materials... -
Page 4: The Operating Instructions
▶ Read the operating instructions carefully and follow the safety instructions in particular. ▶ The operating instructions must be available to every user. ▶ The liability and warranty for Type 0470, 5470 are not applicable if the operating instructions are not followed. -
Page 5: Intended Use
Intended use Intended use Incorrect use of the solenoid valve Type 0470, 5470 may be a hazard to people, nearby equipment and the surrounding area. ▶ The device is used exclusively as 3/2 or 4/2-way solenoid valve for the media permitted accor- ding to the data sheet of the corresponding type. -
Page 6: Basic Safety Instructions
Type 0470, 5470 Basic safety instructions Basic safety instructions These safety instructions do not make allowance for any contingencies and events which may arise during assembly, operation and maintenance. Danger – high pressure! ▶ Turn off the pressure and vent the lines before loosening lines or valves. -
Page 7: Approvals
Type 0470, 5470 Approvals Approvals The approval mark indicated on the Bürkert labels refers to the Bürkert products. Devices which must bear the type approval mark were approved at the Kraftfahrtbundesamt under the type approval number e1*72/245*2006/96*5791*00 and are put into circulation with the indicated type approval mark. -
Page 8: Structure And Function
Type 0470, 5470 Structure and Function Structure and Function The valves can be mounted in blocks on the modular pneumatic base rail Type MP05. 5.1 Structure of the standard designs 5.1.1 Connections All connections are identified by numbers on the valve surface. These refer to the following functions:... -
Page 9: Circuit Functions
Type 0470, 5470 Structure and Function 5.2 Circuit functions 3/2-way valve Normally inlet port 1 closed, working port 2 connected with exhaust port 3. 3/2-way valve Normally inlet port 1 connected with working port 2, exhaust port 3 closed. 4/2-way valve Normally inlet port 1 connected with working port 2, working port 4 connected with exhaust port 3. -
Page 10: Technical Data
Type 0470, 5470 Technical Data Technical Data 6.1 Standards and directives The device complies with the valid EU harmonisation legislation. The harmonised standards that have been applied for the conformity assessment procedure are listed in the current version of the EU Declaration of Conformity. -
Page 11: Materials
Type 0470, 5470 Technical Data Important information for functional reliability during continuous operation! If the equipment is switched off for a long period, it is recommended to activate the valves at least 1-2 per day. Service life High switching frequency and high pressures reduce the service life. -
Page 12: Assembly Safety Instructions
Type 0470, 5470 Assembly Assembly 7.1 Safety instructions DANGER! Risk of injury from high pressure in the system! ▶ Turn off the pressure and vent the lines before loosening lines or valves. Risk of injury due to electrical shock! ▶ Before reaching into the device or the equipment, switch off the power supply and secure to prevent reactivation! ▶... -
Page 13: Conversion From A 4/2 To A 3/2 Way Valve
Type 0470, 5470 Assembly 7.3 Conversion from a 4/2 to a 3/2 way valve To convert the 4/2-way valve into a 3/2-way valve, you must seal connection 2 or connection 4 with a plug depending on the required operating principle. Connection 2 Connection 4 Circuit function sealed open... -
Page 14: Pneumatic Connection
Type 0470, 5470 Pneumatic connection Pneumatic connection WARNING! Risk of injury from greatly accelerated device parts and unconnected whiplashing compressed air hoses! ▶ Before pressurizing the valve, check that all screw connections and screw joints are tight and secure. Installation position Any, preferably with solenoid system face up. -
Page 15: Electrical Connection
Type 0470, 5470 Electrical connection Electrical connection WARNING Risk of injury due to electrical shock! ▶ Before reaching into the system, switch off the electrical power supply and secure to prevent reactivation! ▶ Observe applicable accident prevention and safety regulations for electrical equipment! ▶... -
Page 16: Actuating The Pulse Version
Type 0470, 5470 Electrical connection 9.2 Actuating the pulse version The correct polarity is a prerequisite for the device to function: Observe the markings on the coil surface. Pulse duration at least 50 ms. Pin 1 Pin 2 Pin 1... -
Page 17: Manual Override
Type 0470, 5470 Manual override Manual override 0 = rest position 1 = switching position Fig. 3: Manual override based on the example of Type 5470 17 | 20... -
Page 18: Disassembly
Type 0470, 5470 Disassembly Disassembly Disassembly is in reverse sequence to assembly. 18 | 20... -
Page 19: Maintenance, Troubleshooting
Type 0470, 5470 Maintenance, troubleshooting Maintenance, troubleshooting If the valve is used according to these operating instructions, the valve will operate maintenance-free. 12.1 Safety instructions WARNING! Risk of injury from improper maintenance! ▶ Maintenance may only be carried out by authorized technicians and with the appropriate tools! Risk of injury due to electrical shock! ▶... -
Page 20: Transportation, Storage, Disposal
Type 0470, 5470 Transportation, storage, disposal Transportation, storage, disposal NOTE! Transport damage! Inadequately protected devices may be damaged during transportation. ▶ Protect the device against moisture and dirt in shock-resistant packaging during transportation. ▶ Prevent the temperature from exceeding or dropping below the permitted storage temperature.
