Type 0142
Magnetventil

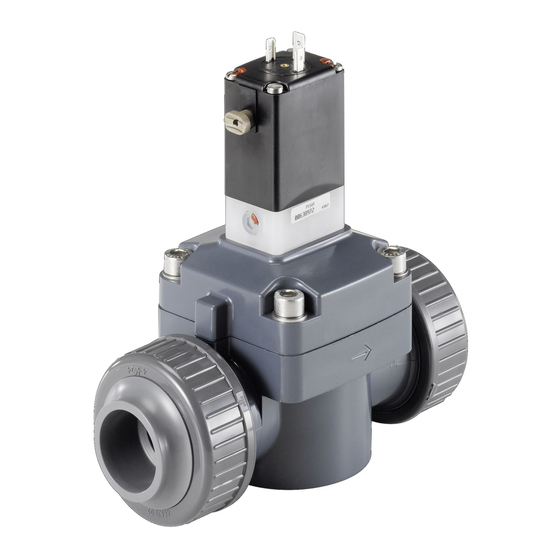

2/2-Way Solenoid Valve
2/2-Wege-Magnetventil
Électrovanne à 2/2 voies
Operating Instructions
Bedienungsanleitung
Manuel d'utilisation
Address / Adresse
Germany / Deutschland / Allemagne
Bürkert Fluid Control Systems
Sales Center
Christian-Bürkert-Str. 13-17
D-74653 Ingelfingen
Tel. + 49 (0) 7940 - 10 91 111
Fax + 49 (0) 7940 - 10 91 448
E-mail: info@burkert.com
International
www.burkert.com
Manuals and data sheets on the Internet:
www.burkert.com
Bedienungsanleitungen und Datenblätter im Internet:
www.buerkert.de
Manuel d'utilisation et fiches techniques sur Internet :
www.buerkert.fr
© Bürkert Werke GmbH & Co. KG, 2013 - 2017
Operating Instructions 1711/05_EU-ML_00893140 / Original
DE
Advertisement
Table of Contents
Related Manuals for Burkert 0142
Summary of Contents for Burkert 0142
- Page 1 Germany / Deutschland / Allemagne Bürkert Fluid Control Systems Sales Center Christian-Bürkert-Str. 13-17 D-74653 Ingelfingen Tel. + 49 (0) 7940 - 10 91 111 Type 0142 Fax + 49 (0) 7940 - 10 91 448 E-mail: info@burkert.com Magnetventil International 2/2-Way Solenoid Valve www.burkert.com...
-
Page 2: Intended Use
▶ Instructions must be available to each user. aggressive media up to a viscosity of 21 mm ▶ The liability and warranty for Type 0142 are void if the operat- ▶ Provided the cable plug is connected and installed correctly, e.g. -
Page 3: Basic Safety Instructions
BASIC SAFETY INSTRUCTIONS Risk of short-circuit/escape of media through leaking screw joints. These safety instructions do not make allowance for any contin- ▶ Ensure seals are seated correctly. gencies and events which may arise during installation, operation ▶ Carefully screw valve and connection lines together. and maintenance. -
Page 4: Technical Data
TECHNICAL DATA Application conditions Ambient temperature: 0 - +40 °C Operating conditions PVDF 0 - +55 °C The following values are indicated on the type label: ▶ Voltage (Tolerance ± 10 %) / Current type Permitted medium temperature depending on body material: ▶... - Page 5 10 20 30 40 50 60 70 80 Conformity Temperature [°C] In accordance with the EU Declaration of conformity, the solenoid Permitted media depending on seal material: valve Type 0142 is compliant with the EU Directives. Seal material Permitted media Standards Oxidizing acids and substances, water...
-
Page 6: Type Label
Risk of injury from high pressure in the equipment! Type Body material ▶ Before loosening the lines and valves, turn off the pressure 0142 A 20,0 FKM and vent the lines. P N 0,5 - 6 bar 230V 50-60Hz 5W Risk of injury due to electrical shock! ▶... -
Page 7: Before Installation
Before installation NOTE! Installation position: any, actuator preferably upwards. Caution risk of breakage! Procedure: • Do not use the coil as a lifting arm. → Check pipelines for dirt and clean. → Body with welded sleeve: Use PVDF. → Install a dirt filter before the valve inlet (≤ 500 µm). →... - Page 8 Manual emergency actuation Electrical connection of the cable plug CAUTION! WARNING! Discharge of medium due to loss of the O-rings! Risk of injury due to electrical shock! ▶ If the O-rings are lost, the valve will leak. Medium may be ▶...
- Page 9 6.5.1 Electrical connection - Pulse max. 1 Nm Seal DC connections: Authorized cable plug e.g. Terminal 1 = closed + Type 2508 or other suitable Terminal 2 = open + cable plug in accordance with Terminal 3 = GND - DIN EN 175301-803 Form A Protective conductor connection...
-
Page 10: Maintenance & Troubleshooting
MAINTENANCE, TROUBLESHOOTING NOTE! Important information: Safety instructions ▶ Avoid emitting pulses simultaneously to both coil windings. WARNING! ▶ Do not switch any other consumers (relays, etc.) at the same time as the terminals. Risk of injury from improper maintenance! ▶ The coil connection, to which voltage is not applied, must be ▶... -
Page 11: Ordering Spare Parts
SPARE PARTS Valve does not switch Possible cause: CAUTION! • Short-circuit or coil interrupted. Risk of injury and/or damage by the use of incorrect parts! • Medium pressure outside the permitted pressure range. Incorrect accessories and unsuitable spare parts may cause injuries •... -
Page 12: Overview Of Spare Parts
Overview of spare parts TRANSPORT, STORAGE, DISPOSAL NOTE! Transport damages! Inadequately protected equipment may be damaged during transport. • During transportation protect the device against wet and dirt in shock-resistant packaging. • Avoid exceeding or dropping below the allowable storage temperature. - Page 13 www.burkert.com...
